Cutting Plate Lifting

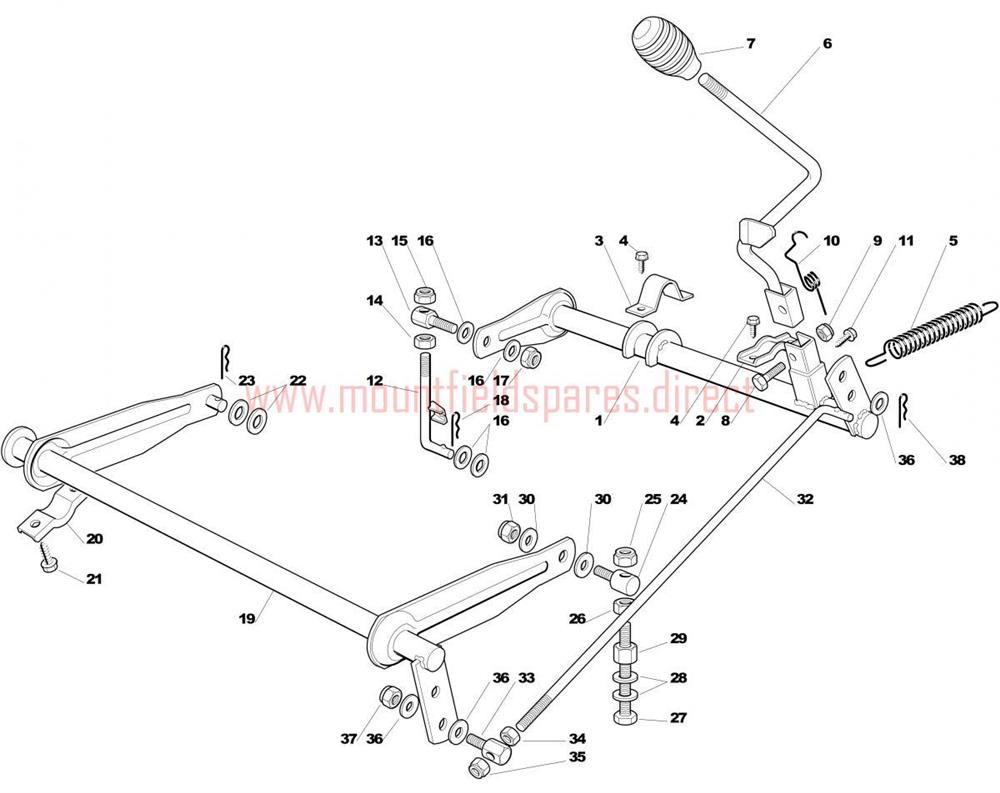

Cutting Plate Lifting assembly details for Mountfield 725V-M (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384001017/0REAR DECK LIFTING AXLE£35.58 Add to
002327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
003325547037/2FIXING CLAMP£3.69 Add to
004112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
005127430568/0LIFTING DECK SPRING£5.12 Add to
006384317075/0DECK LIFTING LEVER ASS.Y£21.67 Add to
007125394510/0CONTROL KNOB [BLACK]£4.35 Add to
008112674700/0SCREW M6 X 35£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
010127430574/0LIFTING DECK LEVER SPRING£7.19 Add to
012327034087/0Rod (Elv63)£10.86 Add to
014112295200/0HEXAGON NUT M10£1.79 Add to
015112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
016325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
018124487997/0SPRING CLIP D=1.8£2.06 Add to
019384001019/0FRONT DECK LIFTING AXLE ASS.Y 2009 (OBSOLETE) (OBSOLETE)N/A
021112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
024125510007/2CONNECTING PIN£5.76 Add to
027112794970/0HEX-HEAD SCREW M10 x 90£3.15 Add to
028112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
029112154250/0HEXAGONAL NUT M10£5.19 Add to
032127034065/0LIFTING DECK CONTROL ROD£66.96 Add to
034112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
035112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
036325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
