Chassis

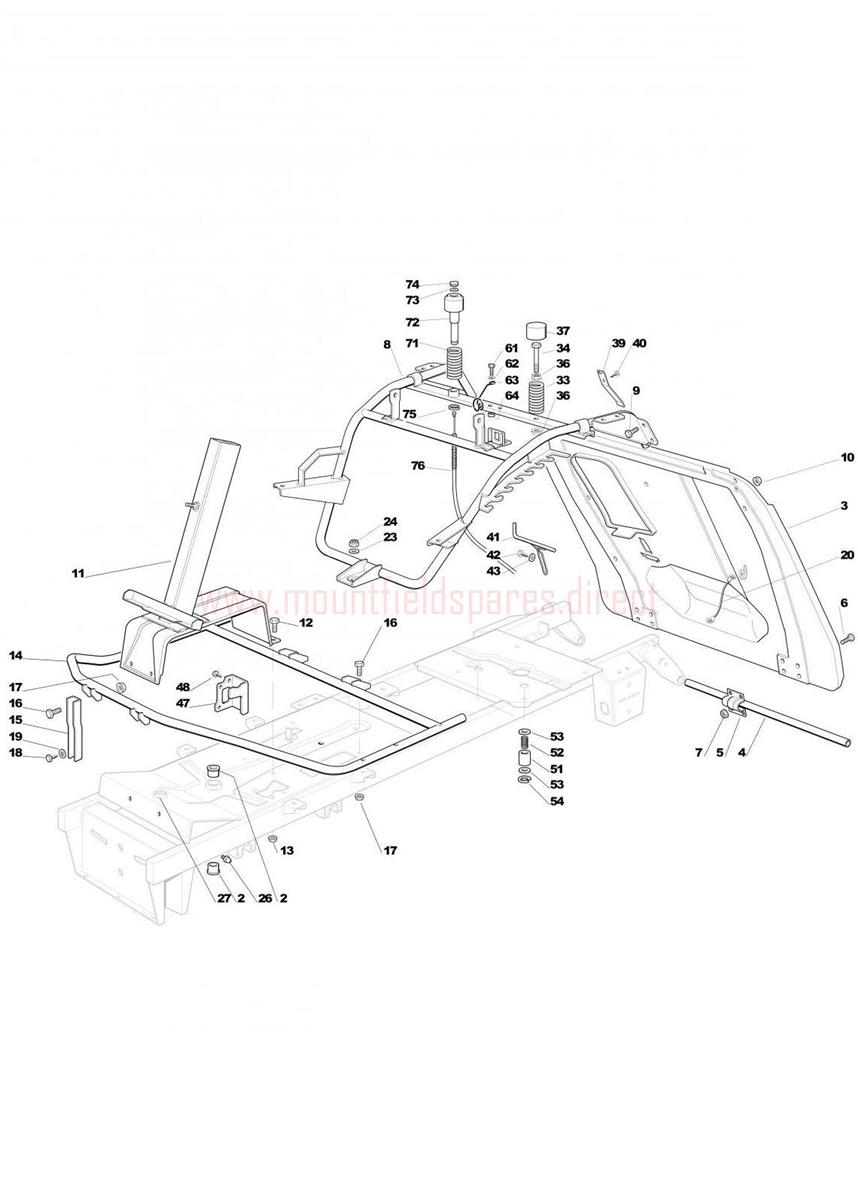

Chassis assembly details for Mountfield 1228H (20110218) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002125034002/1BUSH£3.96 Add to
003384545057/3REAR PLATE [BLACK]£170.61 Add to
004127037000/1REAR PLATE FULCRUM AXLE£7.78 Add to
005325547012/1BRAKE PEDAL PLATE£4.52 Add to
006112791200/1SCREW TE M6 x 16£1.79 Add to
007112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
008384801137/0BLACK SEAT FRAME£135.19 Add to
009112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011384783027/0COLUMN GUIDE SUPPORT ASS.Y F72£54.79 Add to
014384801107/3FOOTBOARD SUPPORT£52.06 Add to
015327787025/0FRAME SUPPORT£3.55 Add to
018112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
019112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
020384040300/0CORD£3.64 Add to
023112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
026112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
027125034001/0BUSH£4.23 Add to
033127430575/0SEAT SHOCK ABSORBER SPRING F 72£5.46 Add to
034127943050/0SPRING FIXING SCREW F 72£2.14 Add to
037325122000/2PROTECTION CAP£2.06 Add to
039127430600/0MICRO LIFT SEAT SPRING£2.74 Add to
040112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
041127294001/0REAR CONVEYOR GUIDE£20.72 Add to
042112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
043112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
047327772095/0SUPPORT BRACKET£2.06 Add to
048112735106/0SCREW£2.06 Add to
051127047012/0BUSH£13.49 Add to
052127430577/0RETURN SPRING£6.27 Add to
053325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
054112000955/0CIRCLIP D=8£1.79 Add to
062112521340/0WASHER M7 7.4 x 14 x 1.6£1.79 Add to
071127430581/0SEAT SHOCK ABSORBER SPRING F72£4.52 Add to
072384050500/0BRAKE CONTROL ASSEMBLY£42.51 Add to
073327670056/0BLADE BRAKE CABLE-WASHER£4.01 Add to
075112609200/0CIRCLIP D=15£2.06 Add to
076184207106/0BLADE BRAKE CONTROL CABLE£24.95 Add to
