Seat & Steering Wheel

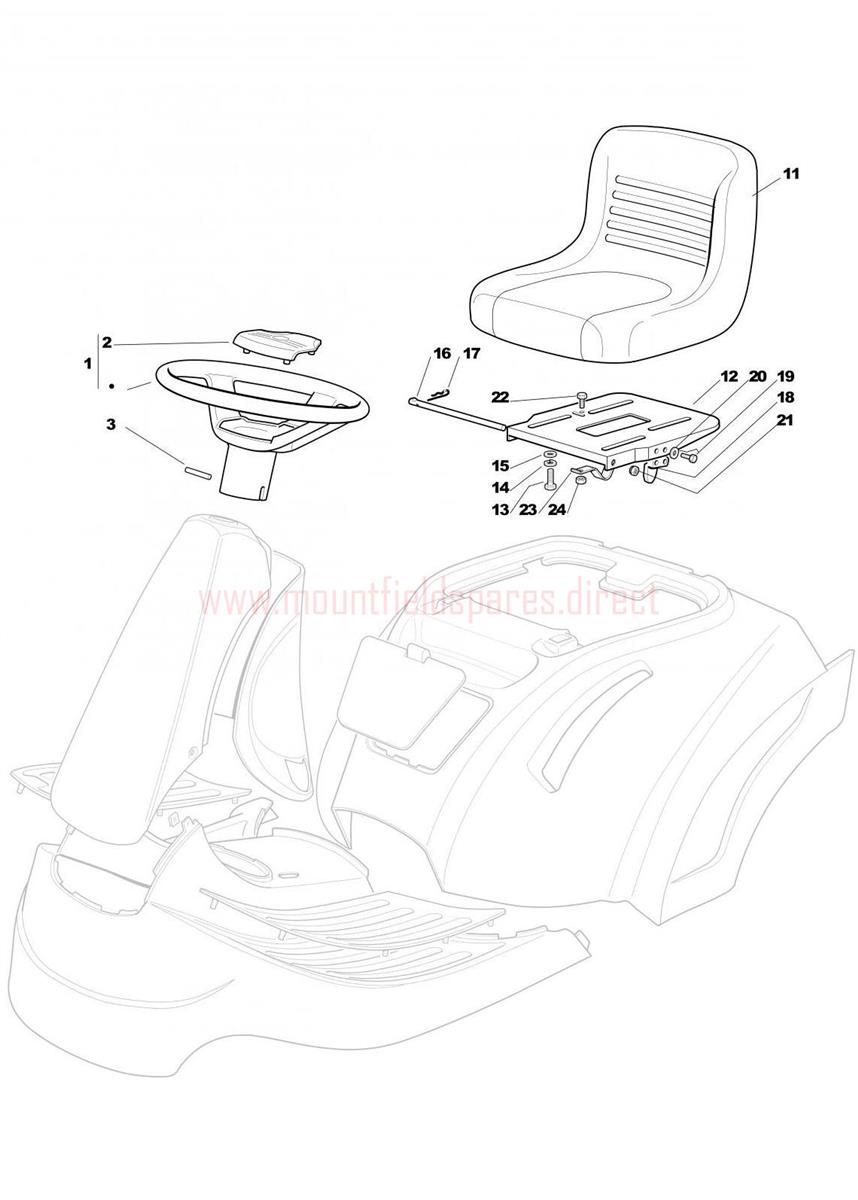

Seat & Steering Wheel assembly details for Mountfield 1228H (20110218) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125961216/0	STEERING WHEEL [BLACK]	£57.52	Add to
002	325580501/0	CENTRAL STEERING WHEEL CAP	£6.69	Add to
003	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
011	125722471/0	SEAT MOUNTFIELD	£197.87	Add to
012	325547033/1	SEAT PLATE	£38.44	Add to
013	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
014	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
015	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
016	127864052/1	SEAT ROD	£7.10	Add to
017	124487997/0	SPRING CLIP D=1.8	£2.06	Add to
018	327063021/1	MICRO SEAT OPERATION CAM	£2.74	Add to
019	112789100/0	HEX-HEAD SCREW M5 x 30	£2.06	Add to
020	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
021	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
022	125430223/2	SEAT LIFTING SPRING	£6.55	Add to
023	112789000/0	SCREW TE M5 x 12	£2.06	Add to
