Engine - GGP TRE0701 (1)

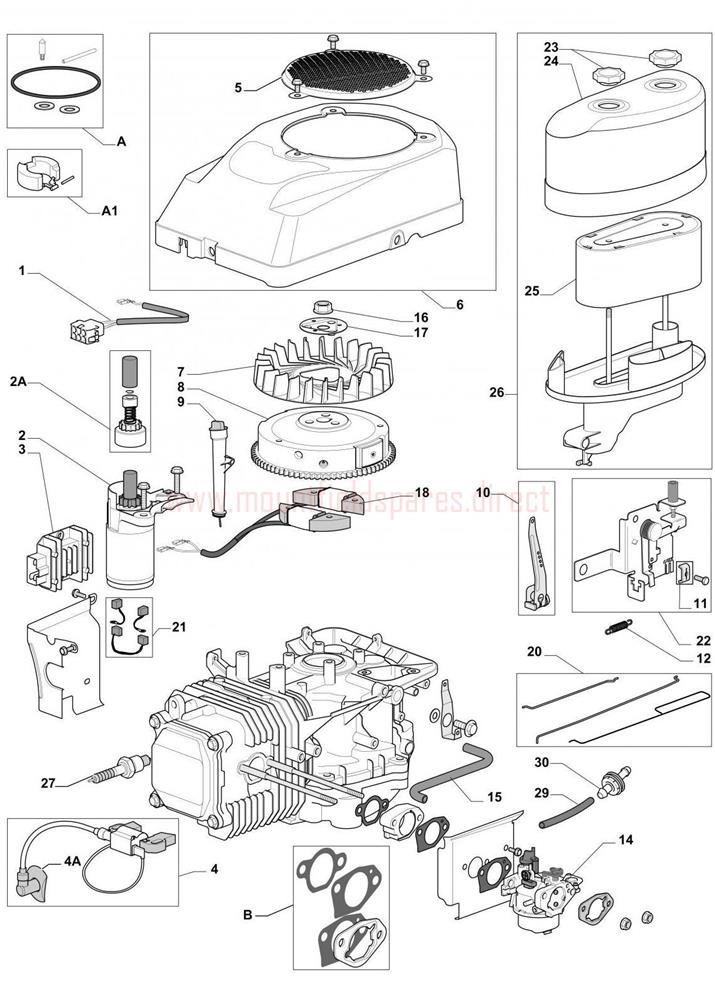

Engine - GGP TRE0701 (1) assembly details for Mountfield 1436M_2T0320483M10 (20110218) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550207/0OUTPUT WIRE-ALTERNATOR£3.83 Add to
002118550214/0STARTER MOTOR (EARLY VERSION) No returns on this i£162.96 Add to
003118550208/1RECTIFIER (EARLY VERSION)£77.95 Add to
004118550209/1IGNITION COIL (EARLY VERSION)£43.89 Add to
005118550203/0FAN COVER INSERT£45.26 Add to
006118550215/0COVER HOUSING£103.85 Add to
007118550235/0FLYWHEEL FAN£26.18 Add to
008118550234/1FLYWHEEL£226.22 Add to
009118550205/1OIL DIPSTICK ASSEMBLY£27.41 Add to
00A118550442/0CARBURETTOR GASKET SET£15.36 Add to
00B118550217/1CARBURETTOR GASKET KIT£10.73 Add to
010118550330/1GOVERNOR LEVER£17.01 Add to
011118550212/0Casing Clamp (OBSOLETE)N/A
012118550213/0SPRING£2.47 Add to
014118550375/0CARBURETTOR£110.67 Add to
015118550225/1BREATHER FUEL PIPE£9.28 Add to
016118550237/0NUT£3.69 Add to
017118550236/0STARTER CUP£6.69 Add to
018118550210/1CHARGE COIL ASSEMBLY (EARLY VERSION)£60.24 Add to
020118550239/1GOVERNOR ROD£14.18 Add to
021118550332/1BRUSH HOLD£35.71 Add to
022118550331/1REMOTE CONTROL ASSEMBLY£42.53 Add to
023118550201/0KNOB£2.66 Add to
024118550200/0AIR FILTER COVER£17.04 Add to
025118550199/0AIR FILTER£25.44 Add to
026118550202/2AIR FILTER ASSEMBLY£43.77 Add to
0279400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
029118550432/0FUEL PIPE£3.15 Add to
02A118550365/1STARTER DRIVE KIT£52.06 Add to
030118550427/0FUEL FILTER£5.87 Add to
04A118550448/0SPARK PLUG CAP£17.18 Add to
0A1118550440/0CARBURETTOR FLOAT KIT£10.77 Add to
