Engine - GGP TRE0701 (2)

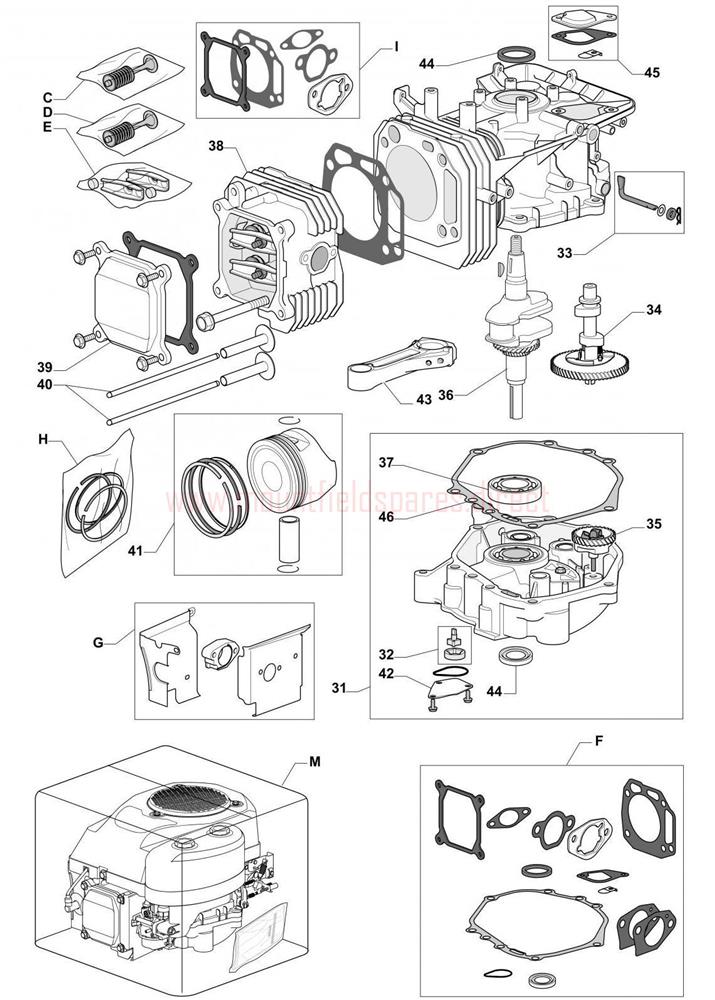

Engine - GGP TRE0701 (2) assembly details for Mountfield 1436M_2T0320483M10 (20110218) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00C118550240/0INLET VALVE£33.39 Add to
00D118550241/0EXHAUST VALVE£31.63 Add to
00E118550334/0VALVE ARM SET£18.68 Add to
00F118550450/1ENGINE GASKET SET (TRE0701)£90.21 Add to
00G118550220/0ENGINE GUARD ASSEMBLY£27.27 Add to
00H118550447/0PISTON RING SET (TRE0701)£32.99 Add to
00I118550449/0VALVE GASKET SET (TRE0701)£50.70 Add to
00M118550451/0ENGINE ASSEMBLY 432cc (TRE0701)No Returns on this£755.97 Add to
031118550445/0CRANKCASE COVER ASSEMBLY£197.87 Add to
032118550224/0OIL PUMP£20.63 Add to
033118550226/0GOVERNOR ARM SHAFT£11.18 Add to
034118550243/0CAMSHAFT ASSEMBLY£113.39 Add to
035118550347/0SPEED GOVERNOR ASSEMBLY£20.04 Add to
036118550232/0CRANKSHAFT£200.51 Add to
037118550227/0BALL BEARING£18.13 Add to
038118550233/0CYLINDER HEAD£225.56 Add to
039118551238/0ROCKER COVER AND GASKET KIT£33.60 Add to
040118550242/1PUSH ROD£6.27 Add to
041118550329/1PISTON ASSEMBLY£91.78 Add to
042118550223/0OIL PUMP COVER£6.01 Add to
043118550231/0CONNECTING ROD£64.40 Add to
044118550443/0OIL SEAL£14.34 Add to
045118550446/0BREATHER CHAMBER KIT£21.82 Add to
046118550355/1CRANKCASE GASKET£17.02 Add to
