Electrical Parts

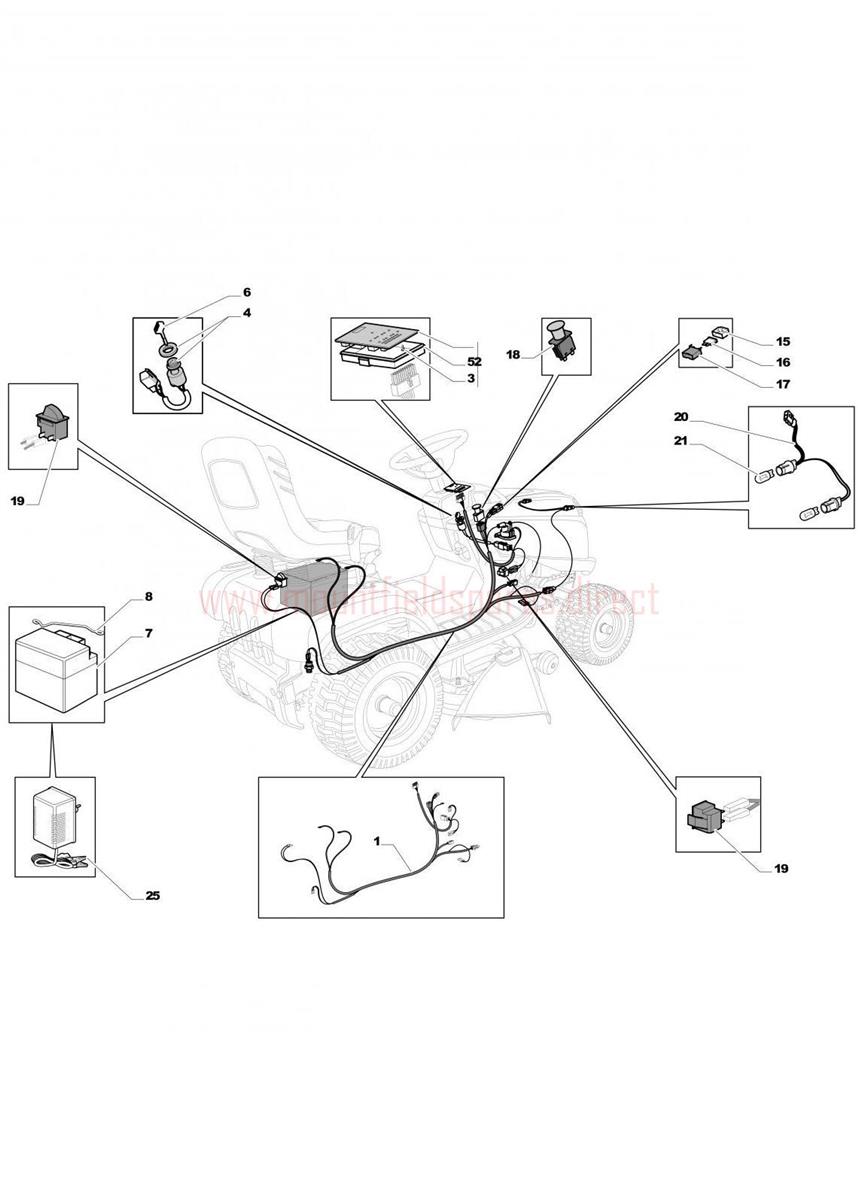

Electrical Parts assembly details for Mountfield 1538H_SD (20110218) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	182040196/1	WIRING HARNESS [SD HYDRO]	£142.93	Add to
002	125722435/0	PC BOARD No returns on this item (OBSOLETE) (OBSOLETE)	N/A
003	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
004	118450075/1	STARTING SWITCH	£20.45	Add to
005	325600080/0	PC BOARD COVER	£8.98	Add to
006	118210023/0	IGNITION KEY [PAIR]	£6.29	Add to
007	118120007/0	BATTERY 12V 18AH [No Returns on This item]	£103.58	Add to
008	125430265/1	SPRING ROD	£1.91	Add to
015	133215000/0	FUSE HOLDER COVER	£3.83	Add to
016	133340036/0	FUSE 25A	£2.06	Add to
016	133340040/0	FUSE 10A	£2.47	Add to
017	133500007/0	FUSE HOLDER	£7.64	Add to
018	118450073/0	YELLOW CLUTCH SWITCH	£15.41	Add to
019	119410622/1	MICRO SWITCH N.O.	£7.10	Add to
020	182040073/0	HEADLIGHTS CABLE	£18.68	Add to
021	118459100/0	HEADLIGHT BULB	£2.47	Add to
025	182180190/1	BATTERY CHARGER	£61.20	Add to
