Body

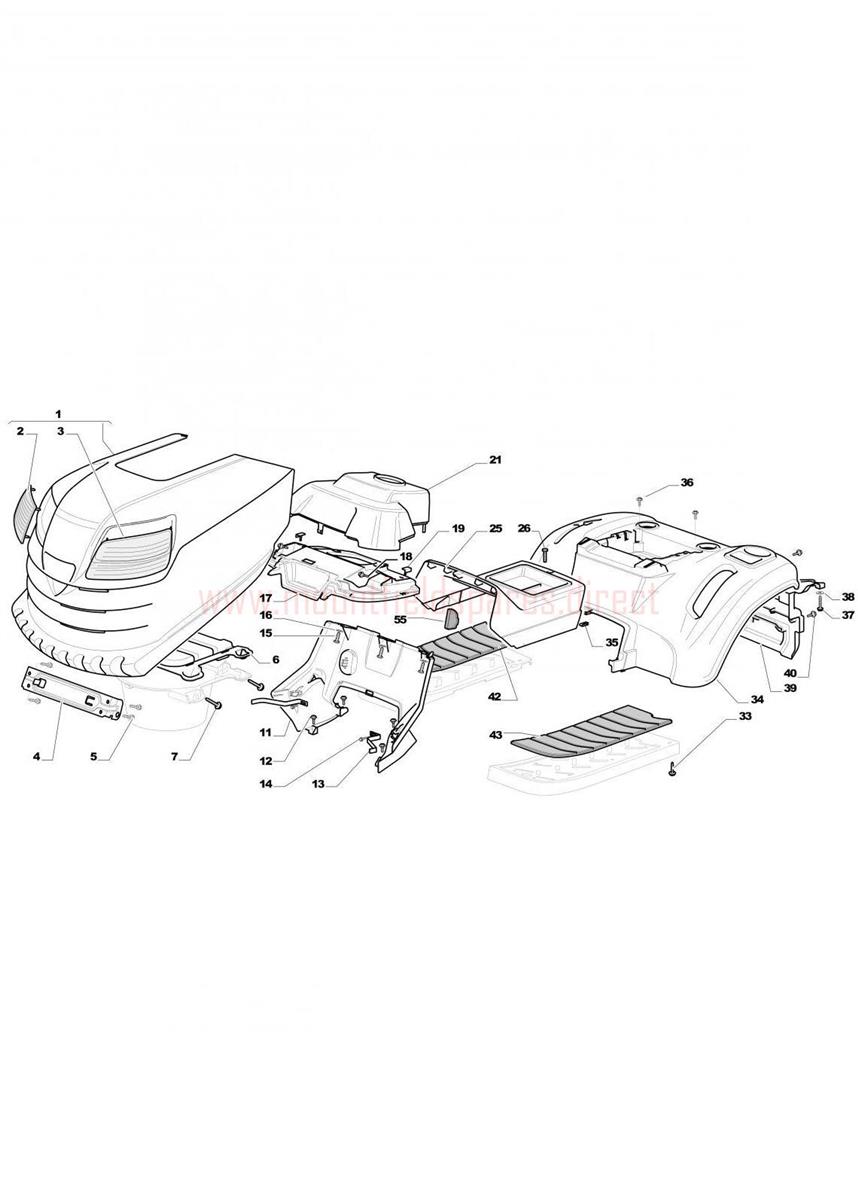

Body assembly details for Mountfield 1538M_SD (20110218) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076954/2ENGINE HOOD [RED]£204.69 Add to
002325410887/0RIGHT HEADLIGHT£9.54 Add to
003325410888/0LEFT HEADLIGHT£9.54 Add to
004325785317/0HOOD SUPPORT£11.27 Add to
005112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
006325263302/1AIR INTAKE GRILL [BLACK]£17.31 Add to
007112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
011325785298/0DASHBOARD SUPPORT [BLACK]£29.30 Add to
012125943010/0FLANGED SCREW£2.06 Add to
013325270325/0DASHBOARD SUPPORT GUIDE£5.19 Add to
014112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
015112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
016112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
017325120209/0DASHBOARD [BLACK] (FROM 01-SEPT 2014 TO 31-AUG 20£38.73 Add to
019325260003/0DASHBOARD GROMMET£2.06 Add to
021325120203/0DASHBOARD COVER [BLACK]£18.20 Add to
025325110383/1CENTRAL COVER [RED]£31.51 Add to
034325110382/0WHEELS COVER [RED]£177.00 Add to
035112437506/0DOUBLE PLATE£2.87 Add to
039325547208/2REAR PLATE [BLACK]£24.18 Add to
042325110384/0RIGHT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
043325110385/0LEFT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
047112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
055325207191/0CENTRAL COVER CLOSE CAP (NOT NEEDED FOR HYDRO MODEL)£2.06 Add to
