Engine - GGP TRE0801 (2)

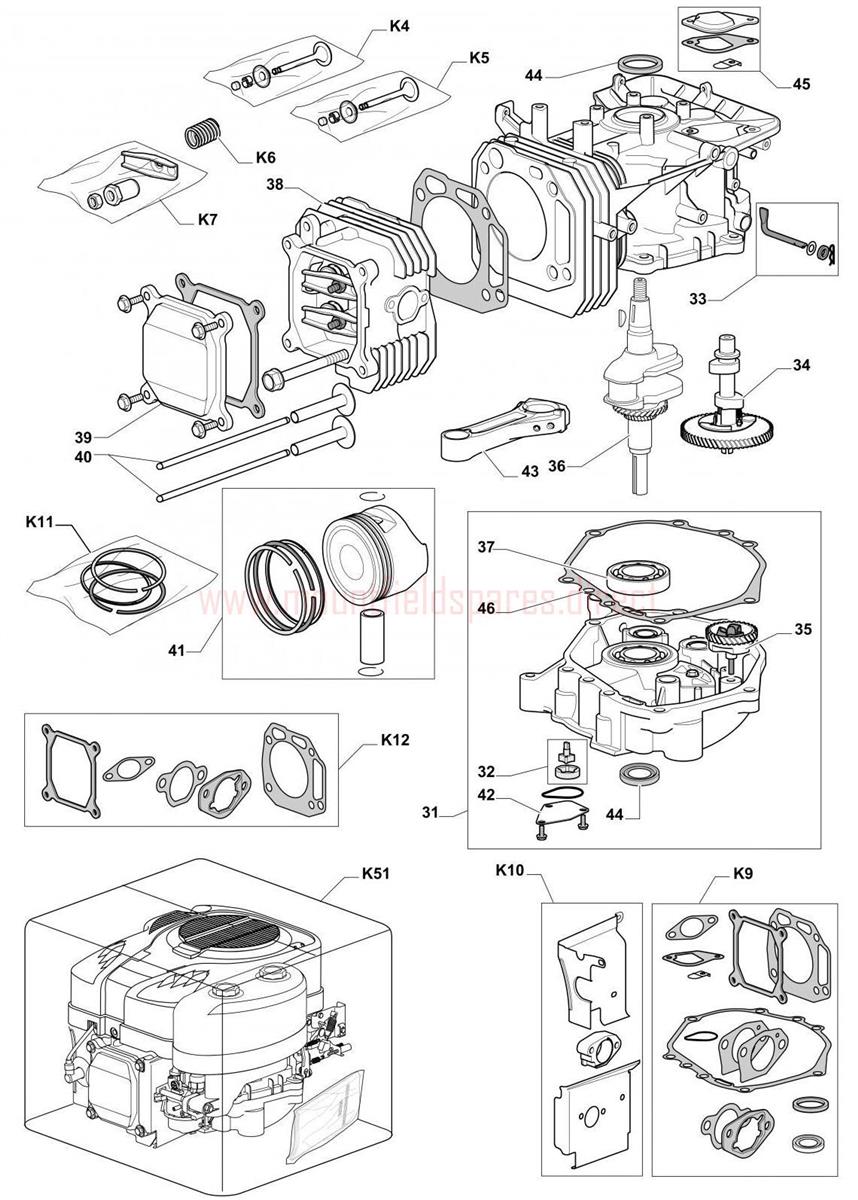

Engine - GGP TRE0801 (2) assembly details for Mountfield 1636H (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
031118550445/0CRANKCASE COVER ASSEMBLY£197.87 Add to
032118550224/0OIL PUMP£20.63 Add to
033118550226/0GOVERNOR ARM SHAFT£11.18 Add to
034118550243/0CAMSHAFT ASSEMBLY£113.39 Add to
035118550347/0SPEED GOVERNOR ASSEMBLY£20.04 Add to
036118550232/0CRANKSHAFT£200.51 Add to
037118550227/0BALL BEARING£18.13 Add to
038118550530/0CYLINDER HEAD ASSEMBLY£266.01 Add to
039118551238/0ROCKER COVER AND GASKET KIT£33.60 Add to
040118550242/1PUSH ROD£6.27 Add to
041118550511/0PISTON£79.19 Add to
042118550223/0OIL PUMP COVER£6.01 Add to
043118550231/0CONNECTING ROD£64.40 Add to
044118550443/0OIL SEAL£14.34 Add to
045118550446/0BREATHER CHAMBER KIT£21.82 Add to
046118550355/1CRANKCASE GASKET£17.02 Add to
0K4118550531/0INLET VALVE£42.53 Add to
0K5118550532/0EXHAUST VALVE£38.44 Add to
0K6118550529/0VALVE SPRING£6.42 Add to
0K7118550533/0ROCKER ARM£9.85 Add to
0K9118550534/0ENGINE GASKET KIT£86.13 Add to
K10118550220/0ENGINE GUARD ASSEMBLY£27.27 Add to
K11118550510/0PISTON RING SET£35.71 Add to
K12118550535/0CYLINDER HEAD GASKET KIT£39.80 Add to
K51118550526/0ENGINE ASSEMBLY 452cc TRE0801£771.72 Add to
