Optionals On Request

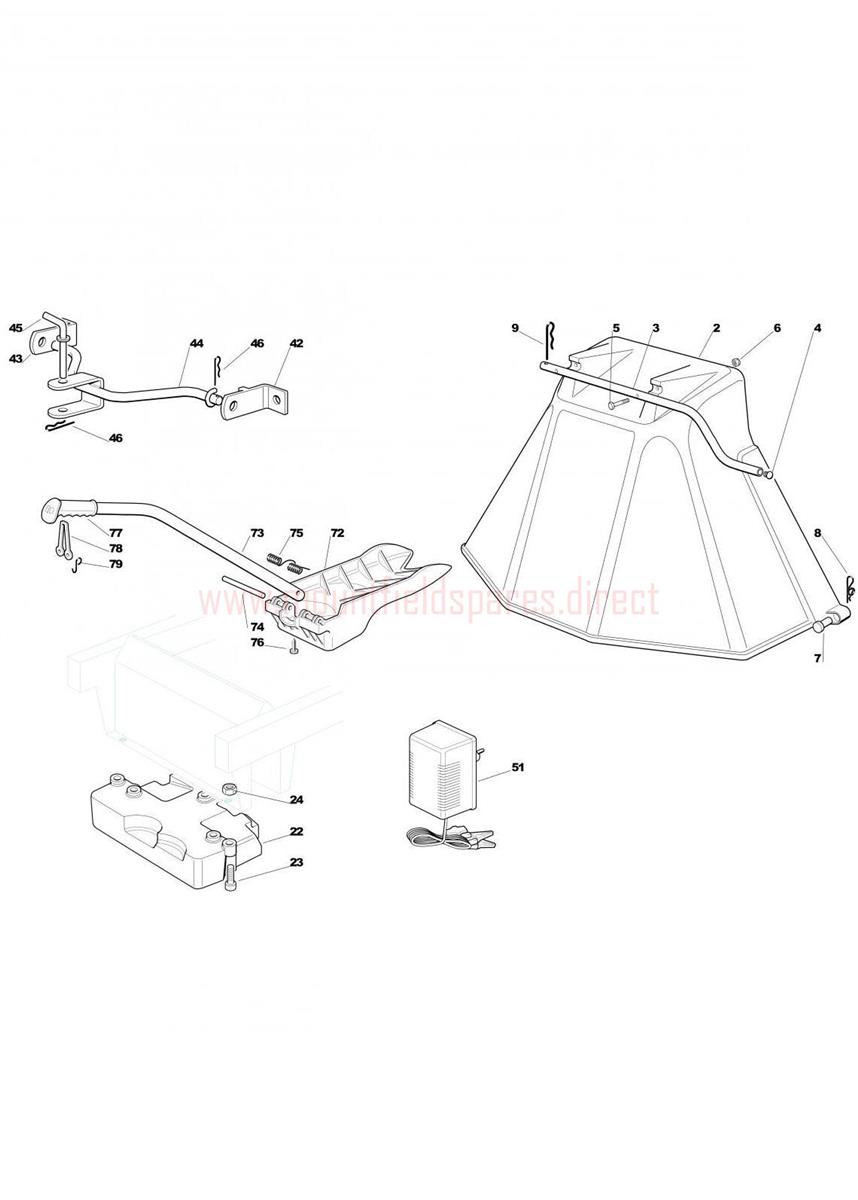

Optionals On Request assembly details for Mountfield 2240H (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002382400003/1DEFLECTOR GUARD£58.73 Add to
003325869043/0SUPPORT ROD£18.67 Add to
004118566116/0HANDLE CAP BLACK D=21£2.74 Add to
005112689515/0HEX-HEAD SCREW M6 x 45£2.06 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
007125510022/1PIN£3.40 Add to
008124487998/0R CLIP D=2£2.06 Add to
009124487999/0R CLIP D=3£1.91 Add to
022112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
023112760520/0HEXAGON SOCKET HEAD SCREW M8 x 45£2.06 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
042382735502/0BRACKET R/H£12.00 Add to
043325774213/0BRACKET L/H£5.05 Add to
044382033115/0SUPPORT ROD£37.08 Add to
045125510021/1HITCH PIN£11.78 Add to
051182180190/1BATTERY CHARGER£61.20 Add to
072325140097/0MULCH DEFLECTOR SHOE£33.46 Add to
073325394005/0HANDLE£18.53 Add to
074125510077/0FULCRUM PIN£3.69 Add to
075125430245/0SPRING£3.28 Add to
076112735405/0FLANGED SELF-TAP SCREW D=6 x 30£2.06 Add to
077325280000/1HAND GRIP KIT MULCHING RO£3.55 Add to
078125840011/1LOCKING RUBBER TIE£6.27 Add to
079125253004/0FIXING HOOK£2.06 Add to
