Body

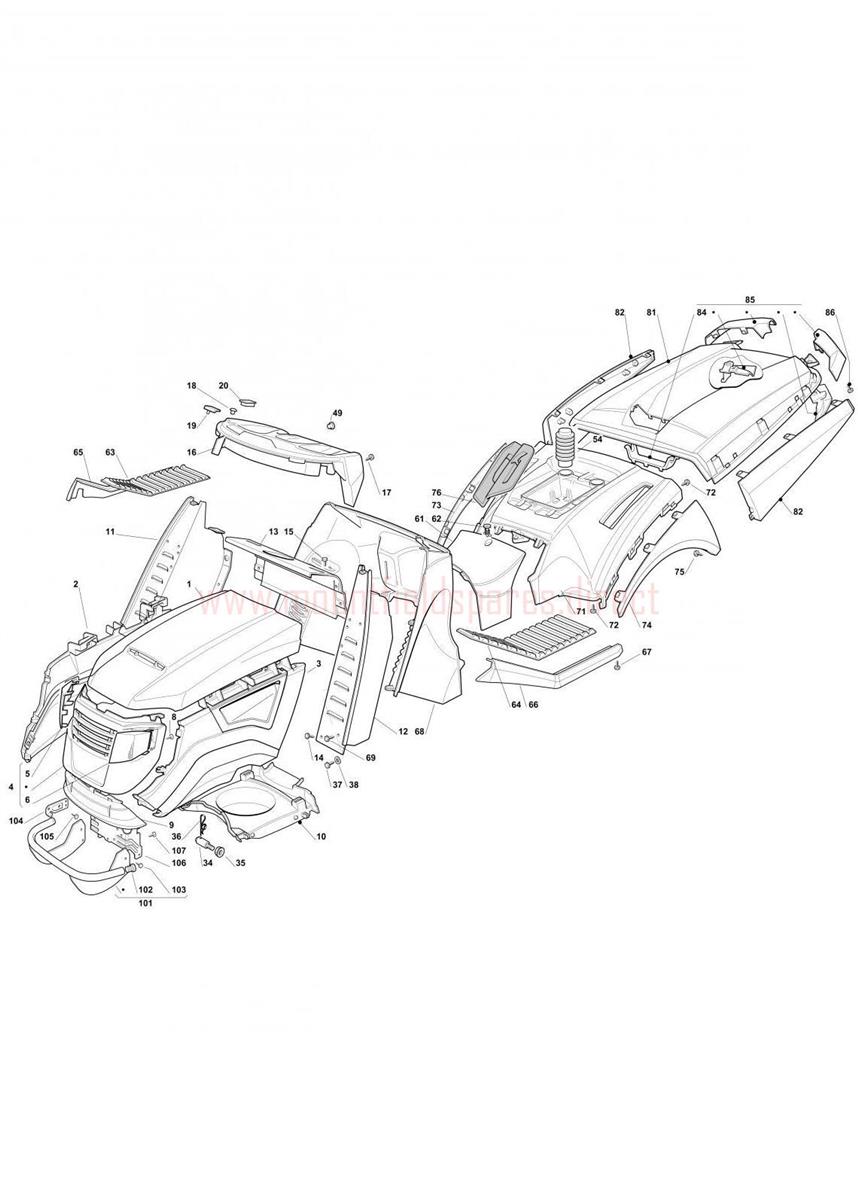

Body assembly details for Mountfield 2248H (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076871/0UPPER ENGINE HOOD [RED]£110.66 Add to
002382394614/0RIGHT UPPER HOOD [RED]£82.05 Add to
003382394615/0LEFT UPPER HOOD (OBSOLETE)N/A
004382394613/0FRONT HOOD [BLACK]£84.77 Add to
005325410876/0RIGHT HEADLIGHTS GRILL£9.14 Add to
006325410877/0LEFT HEADLIGHTS GRILL£9.14 Add to
008112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
009325076870/1LOWER FRONT HOOD [BLACK]£16.91 Add to
010325108031/0INTAKE CONVEYOR£57.52 Add to
011382785022/8RIGHT DASHBOARD SUPPORT£31.63 Add to
012382785021/7LEFT DASHBOARD SUPPORT£31.63 Add to
013382785137/0CENTRAL DASHBOARD SUPPORT£16.16 Add to
014112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
016325120204/0Dashboard, Red (OBSOLETE)N/A
017112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
018125120200/0CAP (OBSOLETE)£2.54 Add to
019125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
034125510068/0BONNET FULCRUM PIN£2.06 Add to
035112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
036124487998/0R CLIP D=2£2.06 Add to
037112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
038112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
049325120233/0CAP (OBSOLETE)£4.28 Add to
054325737002/0PROTECTION COVER£6.01 Add to
061325110306/0CENTRAL COVER [RED]£34.35 Add to
062125580020/2SPRING TENSIONED SCREW£7.23 Add to
063325110278/1R/H FOOTBOARD COVER [BLACK]£26.18 Add to
064325110279/0L/H FOOTBOARD COVER [BLACK]£26.18 Add to
065325599004/0RIGHT FOOTBOARD PROFILE [BLACK]£16.22 Add to
066325599005/0LEFT FOOTBOARD PROFILE [BLACK]£17.64 Add to
067112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
068325785229/1DASHBOARD SUPPORT£68.48 Add to
071325109744/0RED WHEELS COVER TC£124.05 Add to
072112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
073325109758/0RIGHT WHEEL COVER [BLACK]£18.27 Add to
074325109757/0LEFT WHEEL COVER [BLACK]£18.27 Add to
076325207129/0CAN HOLDER COVER [BLACK]£24.34 Add to
081325110302/0GRASSCATCHER TOP [RED]£170.61 Add to
082382110254/0REAR WHEEL COVER KIT [TCP]£52.06 Add to
084325394009/0GRASSCATCHER HANDLE [BLACK]£8.32 Add to
085382110258/0ANGLE COVERS KIT [TCP]£35.68 Add to
101382869025/0FRONT BUMPER BAR£117.75 Add to
102118737860/0END CAP D=40£2.06 Add to
103112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
104325547159/1PLATE£5.05 Add to
106325774301/2HOOD SUPPORT£18.13 Add to
