Seat & Steering Wheel

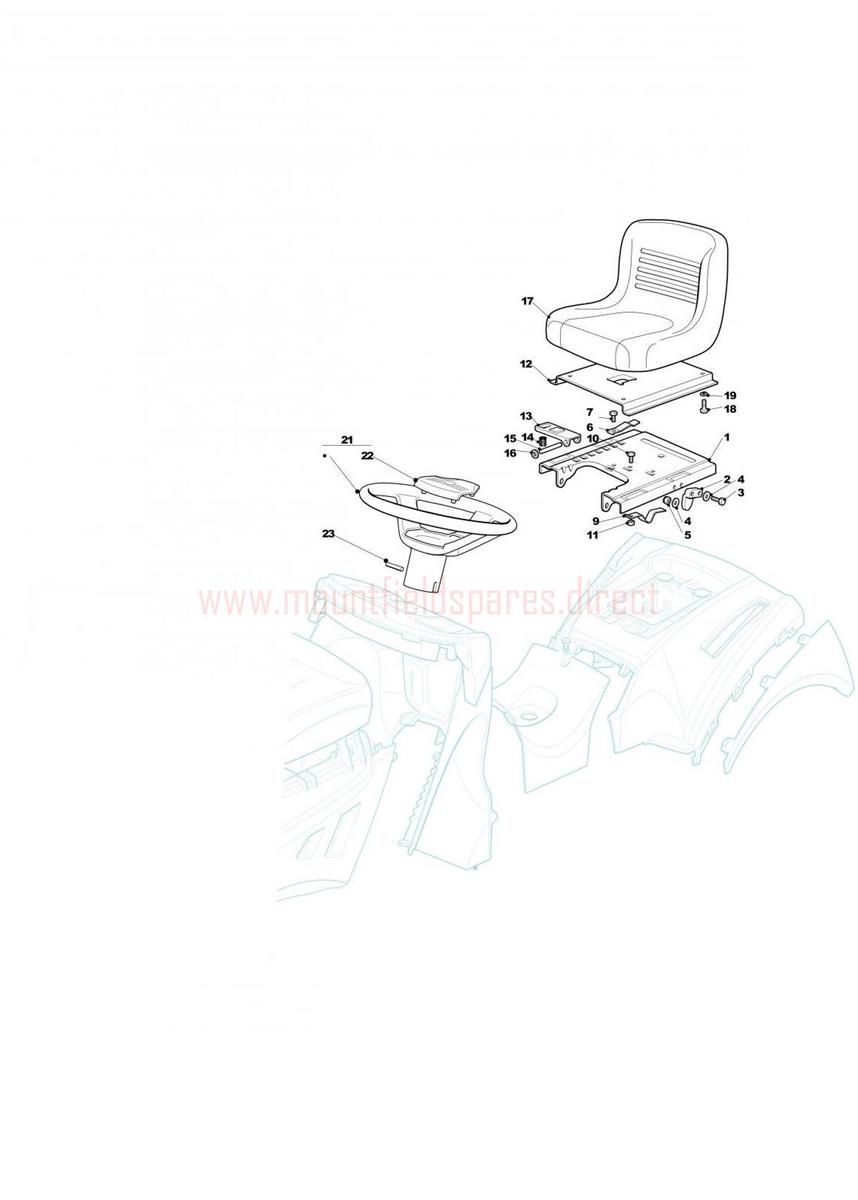

Seat & Steering Wheel assembly details for Mountfield 2448H_4WD (20110221) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	325785149/2	FIXED SEAT SUPPORT TC/TCP	£27.27	Add to
002	325060033/0	SEAT SWITCH CAM	£2.06	Add to
003	112815050/0	SCREW M5 x 25	£2.06	Add to
004	112521320/0	WASHER M5 5.3 x 10 x 1	£2.06	Add to
005	112372550/0	NUT WITH WING M5	£2.06	Add to
006	125430203/1	SPRING	£3.69	Add to
007	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
009	125430223/2	SEAT LIFTING SPRING	£6.55	Add to
010	112789000/0	SCREW TE M5 x 12	£2.06	Add to
011	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
012	325785147/2	MOVING SEAT SUPPORT	£38.26	Add to
013	325318109/1	STOP LEVER	£4.91	Add to
014	125430202/1	SPRING	£2.06	Add to
015	125510000/0	PIN	£1.79	Add to
016	112604897/0	STARLOCK WASHER D=5	£2.06	Add to
017	125722471/0	SEAT MOUNTFIELD	£197.87	Add to
018	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
019	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
021	125961217/1	STEERING WHEEL [BLACK]	£93.73	Add to
022	325580505/0	CENTRAL STEERING WHEEL CAP	£7.92	Add to
023	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
