Steering (1)

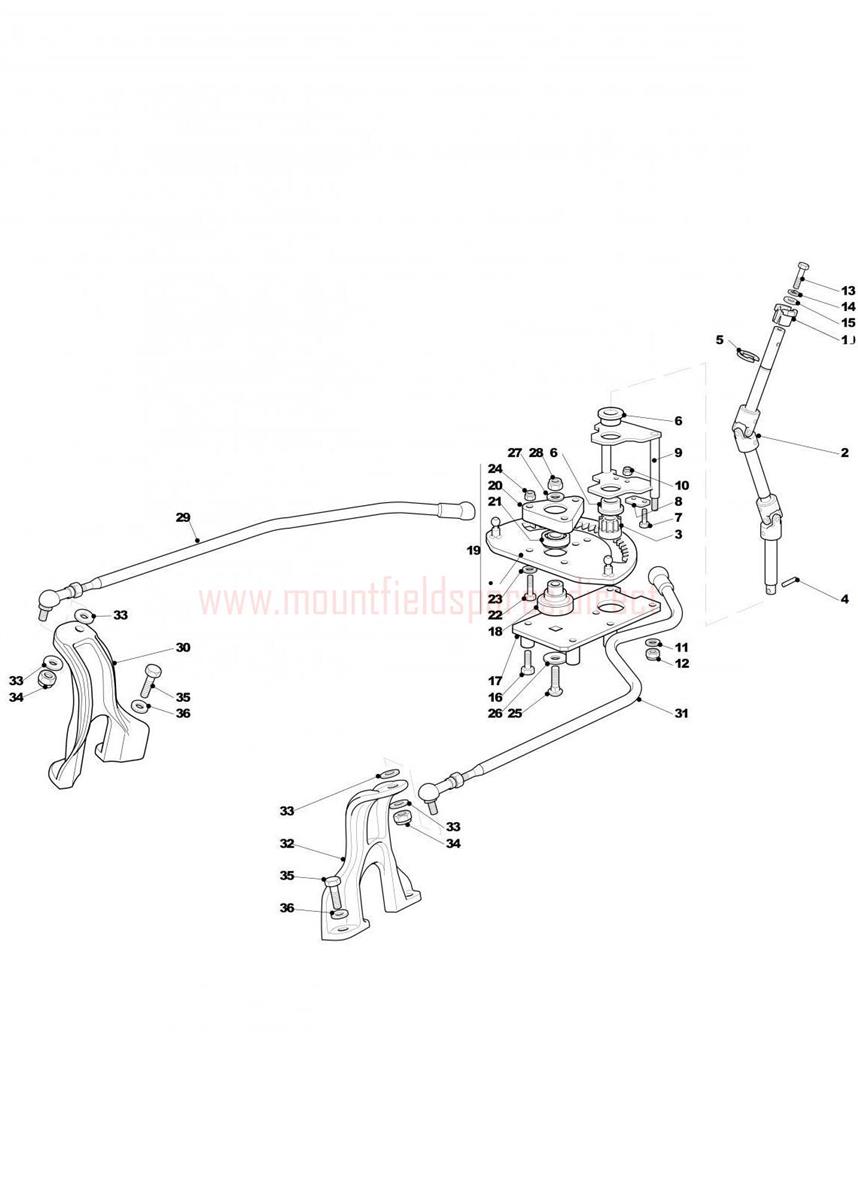

Steering (1) assembly details for Mountfield 2448H_4WD (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125034004/0STEERING COLUMN BUSH£6.09 Add to
002382543052/0STEERING COLUMN£181.49 Add to
003125570006/1STEERING PINION GEAR£70.16 Add to
004112645710/0CYLINDRICAL PIN D=6 X 32£2.14 Add to
005112608600/0CIRCLIP D=12£2.08 Add to
007112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
008325487000/0PLATE£9.96 Add to
009382785209/0SUPPORT ASSEMBLY£68.42 Add to
010112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
011112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
012112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
013112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
014112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
015112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
016112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
017382785207/0SUPPORT PLATE£84.77 Add to
018125040641/0SUPPORT BUSH£20.66 Add to
019382735523/0STEERING QUADRANT ASSEMBLY£191.07 Add to
020325774453/0BEARING BRACKET£25.44 Add to
021119216047/0BEARING 6204-C-2HRS£13.49 Add to
022119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
026112521395/0WASHER M16 17 x 30 x 3£2.06 Add to
027112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
028112156603/0SELF-LOCKING NUT M12£2.06 Add to
029382000622/0RIGHT STEERING ROD£150.15 Add to
030325774393/0STEERING WHEEL BRACKET£66.76 Add to
031382000624/0LEFT STEERING ROD£148.89 Add to
031118400974/0HYDRO TRANSAXLE KXH7N£2,310.04 Add to
032382547057/1PLATE£204.69 Add to
032325774491/1STEERING WHEEL BRACKET£46.61 Add to
033112522050/0WASHER M12 16 x 28 x 2.5£2.14 Add to
033125040633/0BUSH£15.59 Add to
034112760560/0HEX-HEAD SOCKET SCREW M10 X 25£5.21 Add to
034112155700/0NUT M14£2.87 Add to
035112760585/0HEX-SOCKET HEAD SCREW M12 x 35£2.06 Add to
035112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
037112695900/0HEX-HEAD SCREW M16X130 UNI 5737 ACC. 10.£10.09 Add to
039112295801/0HEXAGON NUT M16£2.06 Add to
061182000601/1FRONT WHEEL RIM£92.95 Add to
062125122200/2WHEEL BEARING D=20£12.05 Add to
063125950000/0PNEUMATIC VALVE£5.73 Add to
064337241TYRE 16 x 6.50-8 KENDA SUPER TURF£47.69 Add to
065125670005/2SPINDLE WASHER£3.89 Add to
066112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
