Engine - B&S

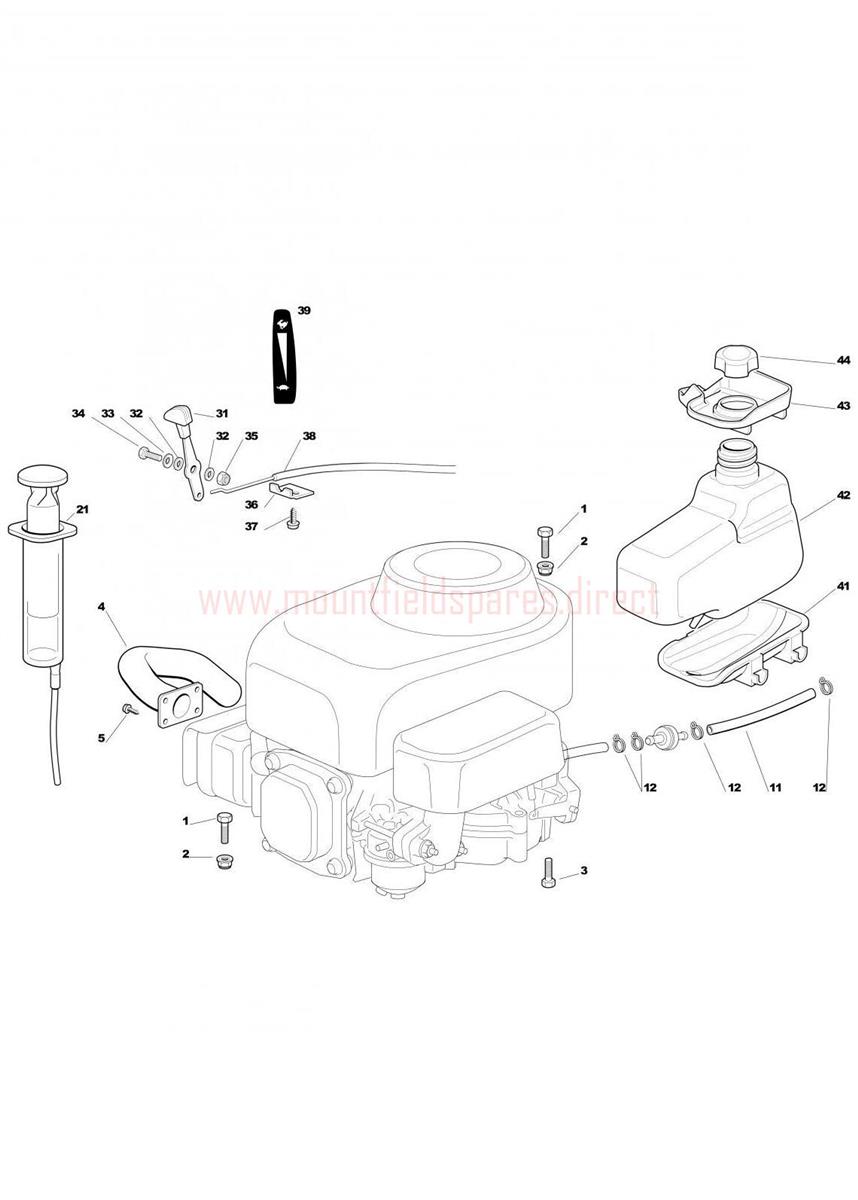

Engine - B&S assembly details for Mountfield 2500SV (20110221) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
003	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
004	118738232/0	EXHAUST PIPE	£53.60	Add to
005	112735111/0	FLANGED TAPPING SCREW 4.2 x 9.5 WZ	£2.18	Add to
008	112878000/0	SCREW TSPEI M6 X 12 UNI 5933	£2.38	Add to
009	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
011	325869035/1	CONNECTING TUBE	£9.82	Add to
021	118718000/0	OIL EMPTYING SYRINGE	£16.22	Add to
031	381007280/2	THROTTLE LEVER	£3.56	Add to
032	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
033	112530060/0	SPRING WASHER M6	£1.79	Add to
034	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
035	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
036	322981467/0	FIXING CABLE PLATE	£2.06	Add to
037	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
038	184000253/1	THROTTLE CABLE	£9.54	Add to
039	114358415/0	THROTTLE DECAL (OBSOLETE) (OBSOLETE)	N/A
039	114358717/0	TROTTLE LABEL EL63 MANUAL ST (OBSOLETE) (OBSOLETE)	N/A
041	127787057/0	PLASTIC TANK SUPPORT - NLA	£4.10	Add to
042	127733002/1	FUEL TANK	£34.35	Add to
043	127600113/0	FUEL TANK GUARD	£2.06	Add to
044	BS-692046	FUEL CAP OHV	£10.71	Add to
