Transmission

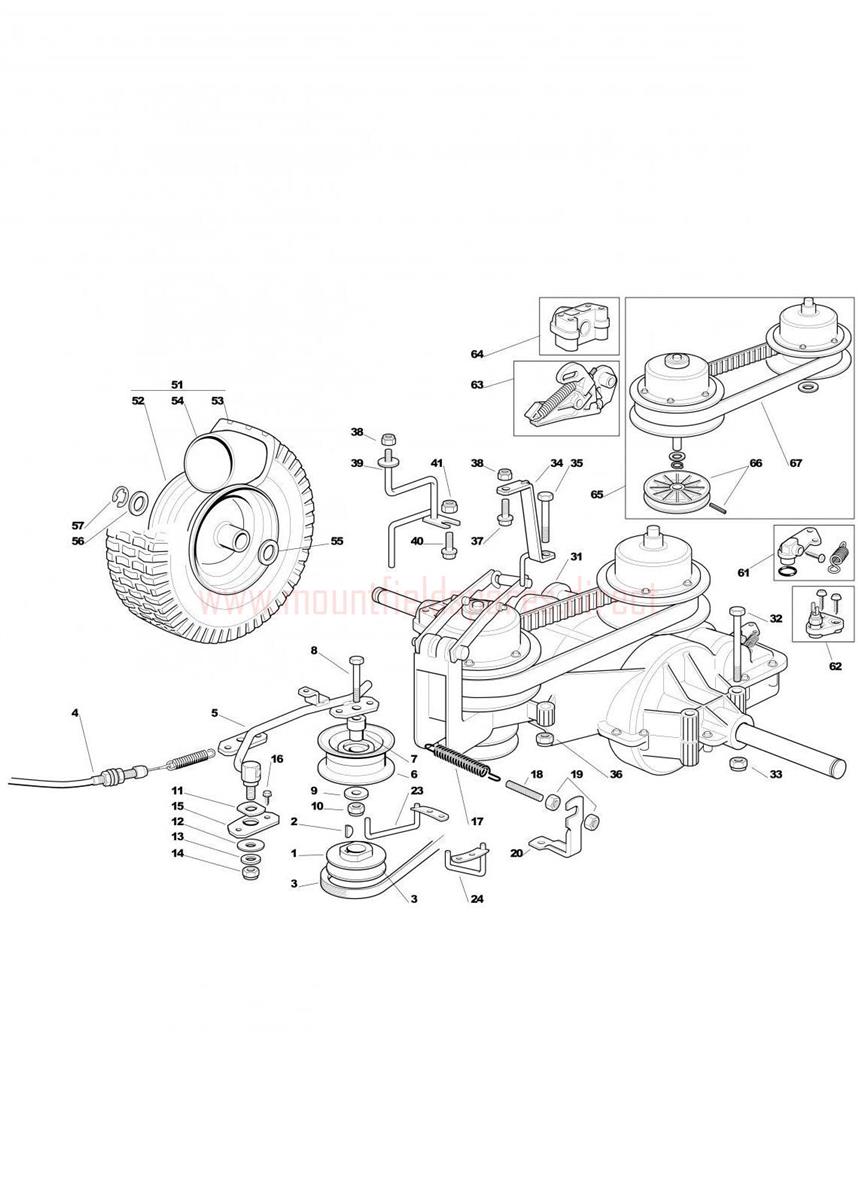

Transmission assembly details for Mountfield 2500SV (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001127604013/0ENGINE PULLEY EL 63£76.37 Add to
002112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
003135061427/0DECK DRIVE BELT X13 C56K£39.80 Add to
004384207103/2DRIVE ENGAGE CABLE£17.26 Add to
005384317091/0LEVER£32.45 Add to
006127604007/0GUIDE PULLEY£52.06 Add to
007127047007/0GUIDE PULLEY BUSH£2.87 Add to
008112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
009112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011327670054/0WASHER£10.09 Add to
012119700064/0SWITCH£76.59 Add to
012112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
013325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
015327546029/0GUIDE PULLEY FIXING PLATE£4.83 Add to
016112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
017125430219/1SPRING£3.96 Add to
018125840005/0TIE ROD£2.87 Add to
019112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
020327773081/1BRACKET SPRING SUPPORT£6.00 Add to
023382270305/0LEFT BLADE PULLEY BELT GUIDE (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
024382270307/0LEFT BLADE PULLEY BELT GUIDE£18.82 Add to
031118400973/1TRANSAXLE-VARIABLE SPEED£740.23 Add to
032112692050/0HEX-HEAD SCREW£1.91 Add to
033112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
034384783045/0LEFT GEAR BOX SUPPORT£21.95 Add to
035112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
037112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
039384783043/0RIGHT GEAR BOX SUPPORT£36.35 Add to
040112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
051184680057/1REAR WHEEL ASSEMBLY 13 x 5.00 x 6£151.32 Add to
052184044013/0REAR WHEEL RIM 6" x 4.5"£57.52 Add to
053127590059/0TYRE 13 x 5.00 - 6£52.91 Add to
054127590057/0REAR WHEEL INNER TUBE£14.05 Add to
055112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
056125670005/2SPINDLE WASHER£3.89 Add to
057112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
061119700059/0BRAKE KIT£11.18 Add to
063119700065/0LEVER£62.97 Add to
064119700061/0BUSH£14.66 Add to
065119700057/0VARIATOR KIT£225.12 Add to
066119700066/0PULLEY£20.31 Add to
067119700062/0VARIABLE SPEED BELT£32.83 Add to
