Transmission

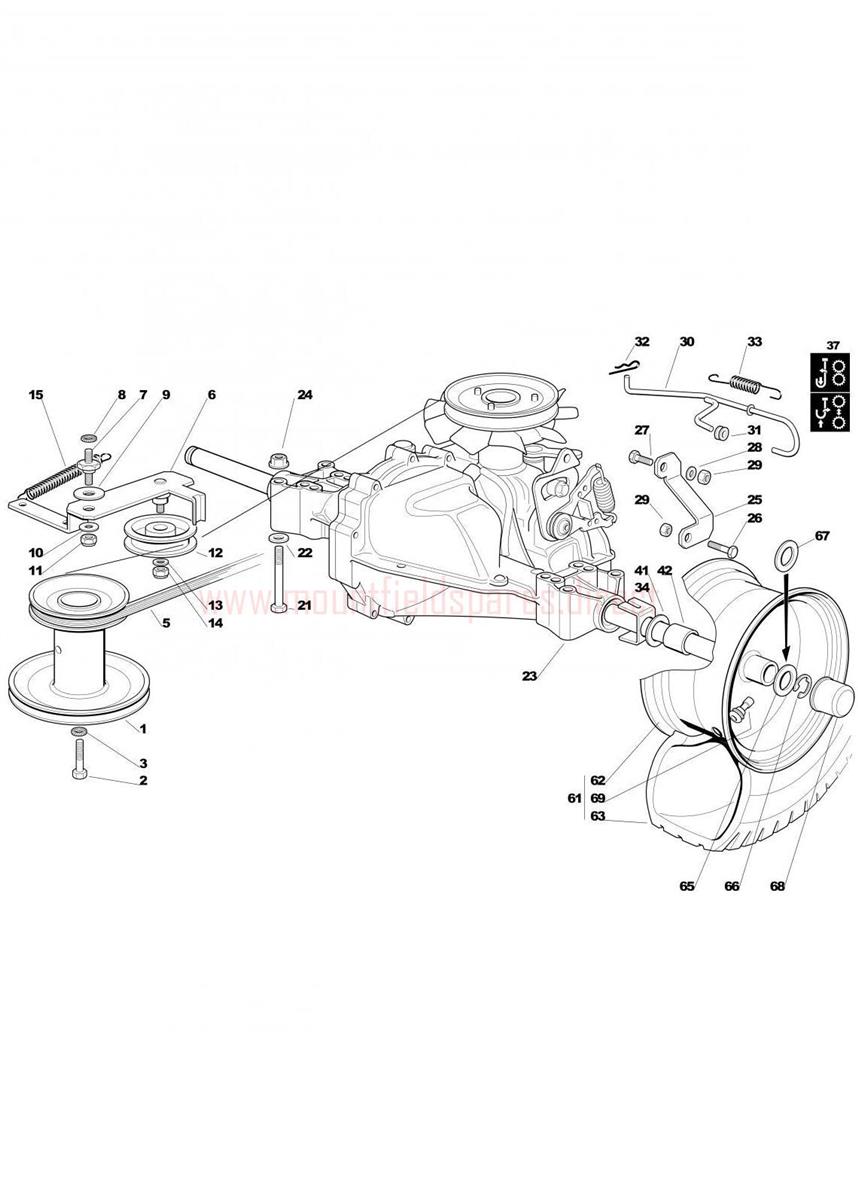

Transmission assembly details for Mountfield 2800SH (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001127604005/0ENGINE PULLEY£92.95 Add to
002112737310/0HEX-HEAD SCREW 7/16" x 2" 20 UNF£1.90 Add to
003112543000/0SAFETY WASHER D=7/16£2.06 Add to
005135061407/0TRANSMISSION BELT X31 0820£28.51 Add to
006384317067/1TENSION PULLEY LEVER£17.89 Add to
007127510096/0FULCRUM PIN£5.19 Add to
008112540260/0INNER TOOTHED WASHER M8£2.06 Add to
009322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
010325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
011112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
012125601554/0PULLEY£26.18 Add to
013112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
014112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
015122446402/1SPRING£5.46 Add to
021112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
023118400976/2TRANSAXLE HYDRO-GEAR T2-BDBE-2X1A-16X1£905.50 Add to
024112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
025327787075/0SUPPORT BRACKET£12.14 Add to
026112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
027112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
028112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
030384002087/0UNLOCKING ROD£32.99 Add to
031118564512/0GROMMET£1.79 Add to
032124487997/0SPRING CLIP D=1.8£2.06 Add to
033125430213/0SPRING£2.06 Add to
034327670058/0WHEELS SPACER WASHER£12.85 Add to
037114365167/0UNBLOCKING LEVER DECAL£2.06 Add to
041125670006/0WASHER£2.06 Add to
042127160059/0SPACER£6.01 Add to
061384680067/0REAR WHEEL ASSEMBLY 15" [WANDA] P512£129.74 Add to
062184044001/0REAR WHEEL RIM£75.25 Add to
063125590020/0TYRE 15 X 6.00-6 WANDA£65.62 Add to
065125670005/2SPINDLE WASHER£3.89 Add to
066112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
068122110230/0HUB COVER£2.06 Add to
069125950000/0PNEUMATIC VALVE£5.73 Add to
