Body

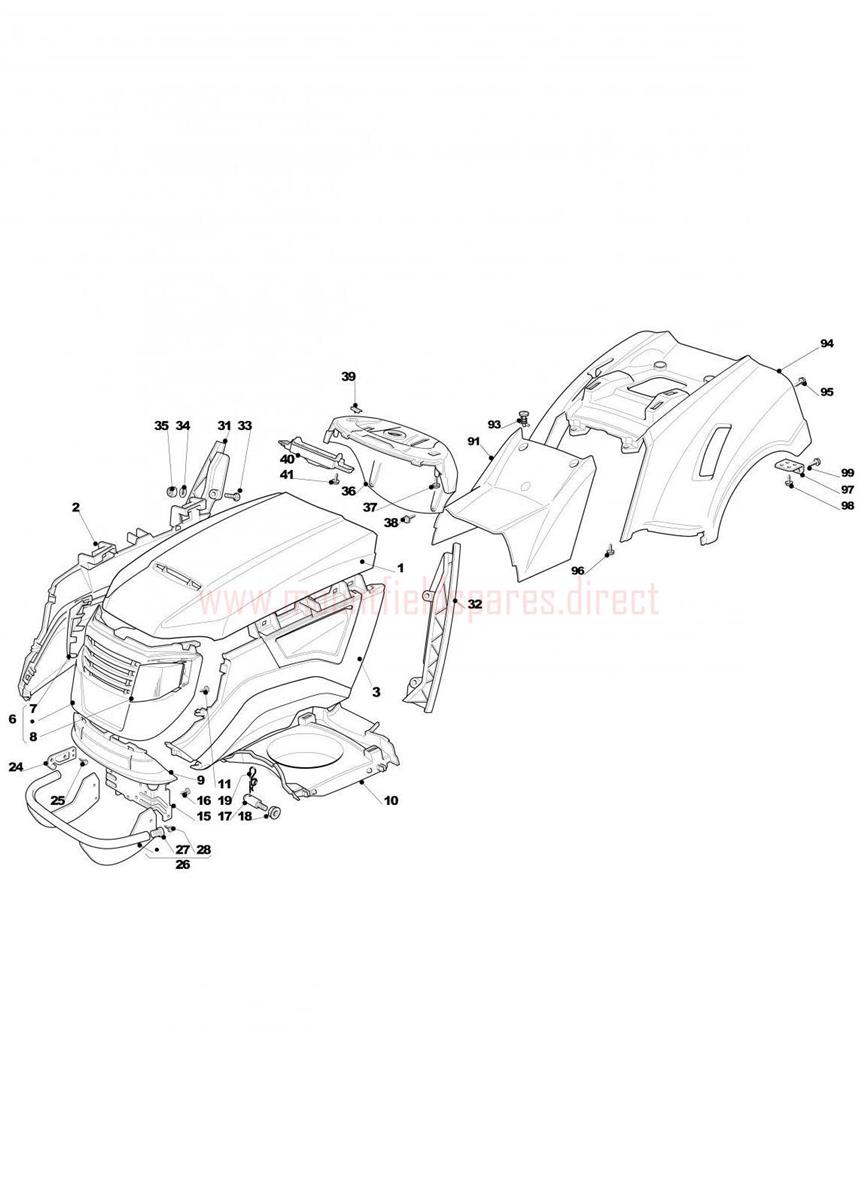

Body assembly details for Mountfield 3600H (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076871/0UPPER ENGINE HOOD [RED]£110.66 Add to
002382394614/0RIGHT UPPER HOOD [RED]£82.05 Add to
003382394615/0LEFT UPPER HOOD (OBSOLETE)N/A
006382394613/0FRONT HOOD [BLACK]£84.77 Add to
007325410876/0RIGHT HEADLIGHTS GRILL£9.14 Add to
008325410877/0LEFT HEADLIGHTS GRILL£9.14 Add to
009325076870/1LOWER FRONT HOOD [BLACK]£16.91 Add to
010325108031/0INTAKE CONVEYOR£57.52 Add to
011112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
015325774301/2HOOD SUPPORT£18.13 Add to
017125510169/1BONNET PIN (ROUND VERSION)£3.15 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
019124487998/0R CLIP D=2£2.06 Add to
024325547159/1PLATE£5.05 Add to
025112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
026382869027/0FRONT BUMPER BAR£99.65 Add to
027118737860/0END CAP D=40£2.06 Add to
028112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
032325599013/0LEFT DASHBOARD SUPPORT£7.23 Add to
033112815221/0SCREW M6 x 35£1.79 Add to
034112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
036325120188/2DASHBOARD [BLACK]£37.40 Add to
037112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
038112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
039125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
040325600074/0PC BOARD COVER£9.07 Add to
051125961216/0STEERING WHEEL [BLACK]£57.52 Add to
052325580500/0CENTRAL STEERING WHEEL CAP£6.42 Add to
053112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
091325110363/0CENTRAL COVER [RED]£38.44 Add to
093125580020/2SPRING TENSIONED SCREW£7.23 Add to
094325110322/0WHEELS COVER [RED]£101.13 Add to
097325755041/0ANGLE BRACKET£2.06 Add to
098112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
099112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
