Optionals On Request

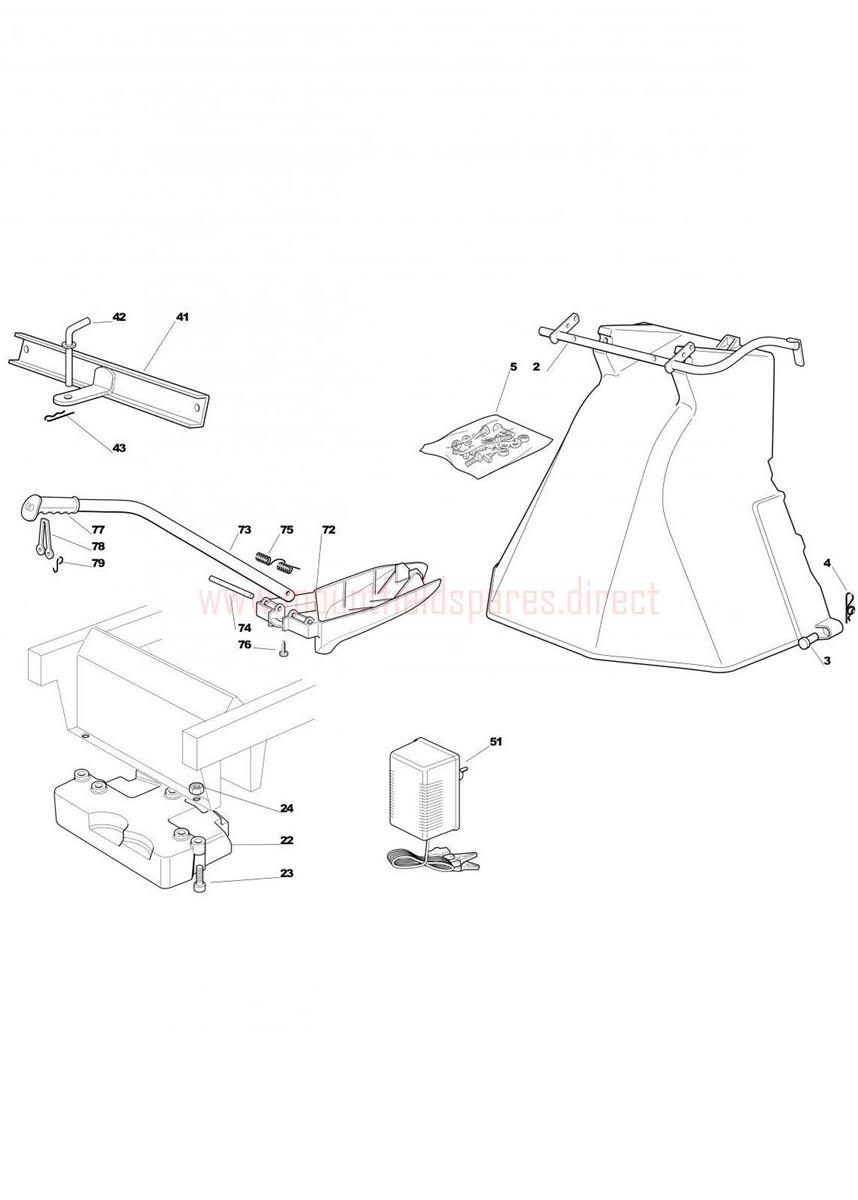

Optionals On Request assembly details for Mountfield 3600H (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002382869035/0SUPPORT TUBE£36.69 Add to
003125510022/1PIN£3.40 Add to
004124487998/0R CLIP D=2£2.06 Add to
00582180062/0Screws Outfit (OBSOLETE)N/A
022112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
023112760520/0HEXAGON SOCKET HEAD SCREW M8 x 45£2.06 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
042125510021/1HITCH PIN£11.78 Add to
043124487999/0R CLIP D=3£1.91 Add to
051182180190/1BATTERY CHARGER£61.20 Add to
072325140093/0MULCHING DEFLECTOR SHOE£32.99 Add to
073325394007/0MULCHING DEFLECTOR HANDLE£21.90 Add to
074125510077/0FULCRUM PIN£3.69 Add to
075125430245/0SPRING£3.28 Add to
076112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
077325280000/1HAND GRIP KIT MULCHING RO£3.55 Add to
078125840011/1LOCKING RUBBER TIE£6.27 Add to
079125253004/0FIXING HOOK£2.06 Add to
