Tank

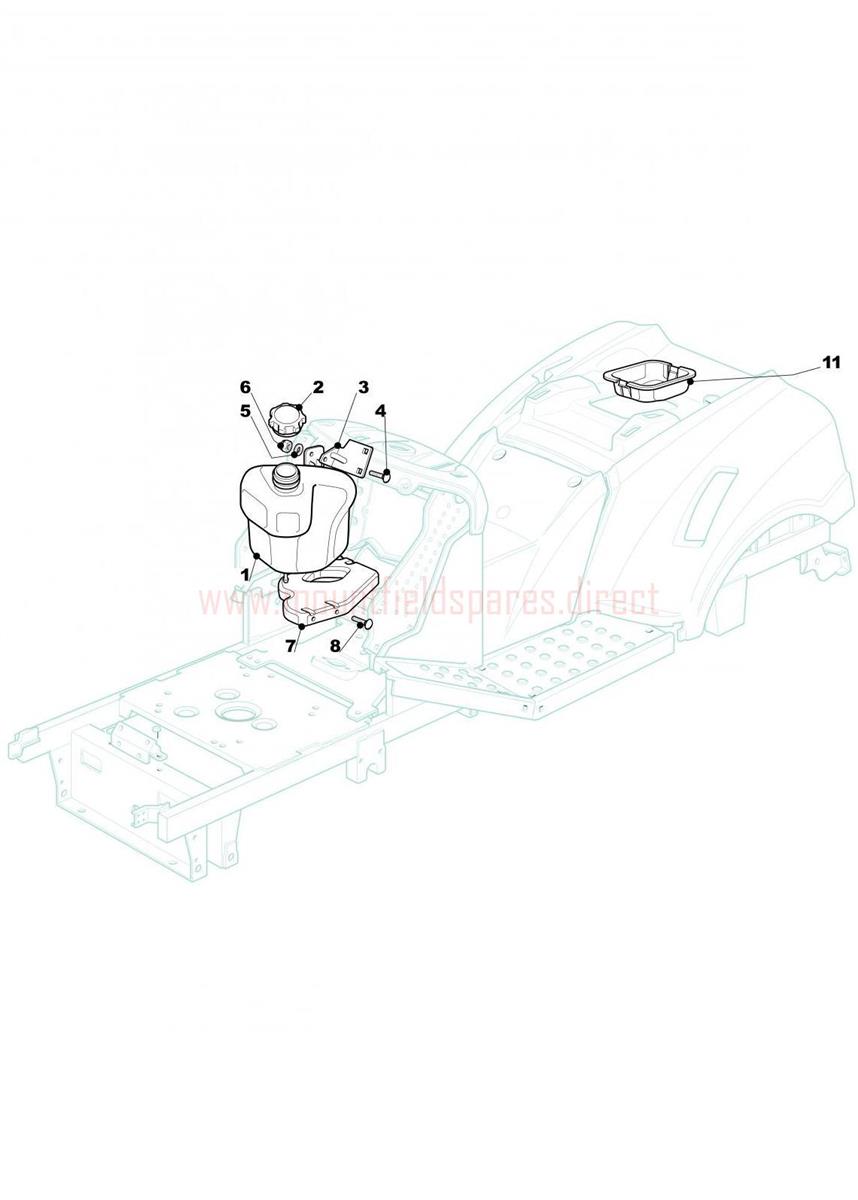

Tank assembly details for Mountfield 3600H (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325735124/0FUEL TANK£85.50 Add to
002125795001/1FUEL TANK CAP£8.32 Add to
003325785291/0UPPER FUEL TANK SUPPORT£8.42 Add to
005112581500/0WASHER M5£2.06 Add to
006112437503/0LOCK PLATE£2.06 Add to
007325785289/0LOWER FUEL TANK SUPPORT£9.68 Add to
008112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
011325207176/0TANK COVER [BLACK]£8.37 Add to
