Electrical Parts

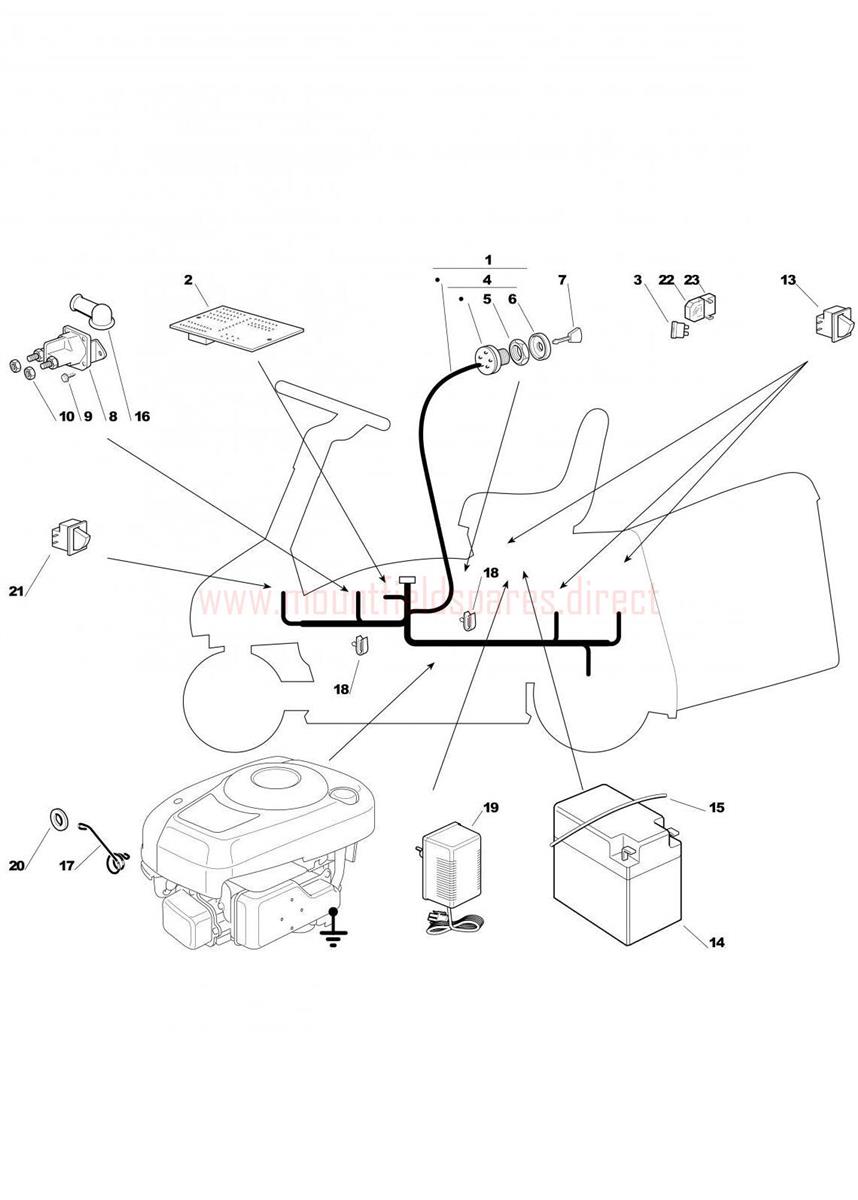

Electrical Parts assembly details for Mountfield 725V (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001184040123/1WIRING LOOM EL63-ELV63£150.80 Add to
003133340040/0FUSE 10A£2.47 Add to
004118450065/1STARTING SWITCH£32.99 Add to
005118400861/0LOCKING RING£5.32 Add to
006118565351/0LOCKING RING COVER£6.14 Add to
007118210016/1IGNITION KEY [PAIR]£13.17 Add to
008118736112/0SOLENOID£39.80 Add to
009112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
0109743-5121-32LOCK NUT 5/16"£1.79 Add to
013119410622/1MICRO SWITCH N.O.£7.10 Add to
014118120004/0BATTERY 12V 7.2AH [No Returns on This Item]£97.50 Add to
015127430572/0BATTERY FIXING ROD£1.91 Add to
016118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
017127430557/0SPRING£3.81 Add to
018133320506/0CABLE CLIP£1.79 Add to
019182180190/1BATTERY CHARGER£61.20 Add to
019182180190/1BATTERY CHARGER£61.20 Add to
020112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
021119410614/0MICRO SWITCH N.C.£6.55 Add to
022133215000/0FUSE HOLDER COVER£3.83 Add to
023133500007/0FUSE HOLDER£7.64 Add to
