Engine - GGP WBE0704 (1)

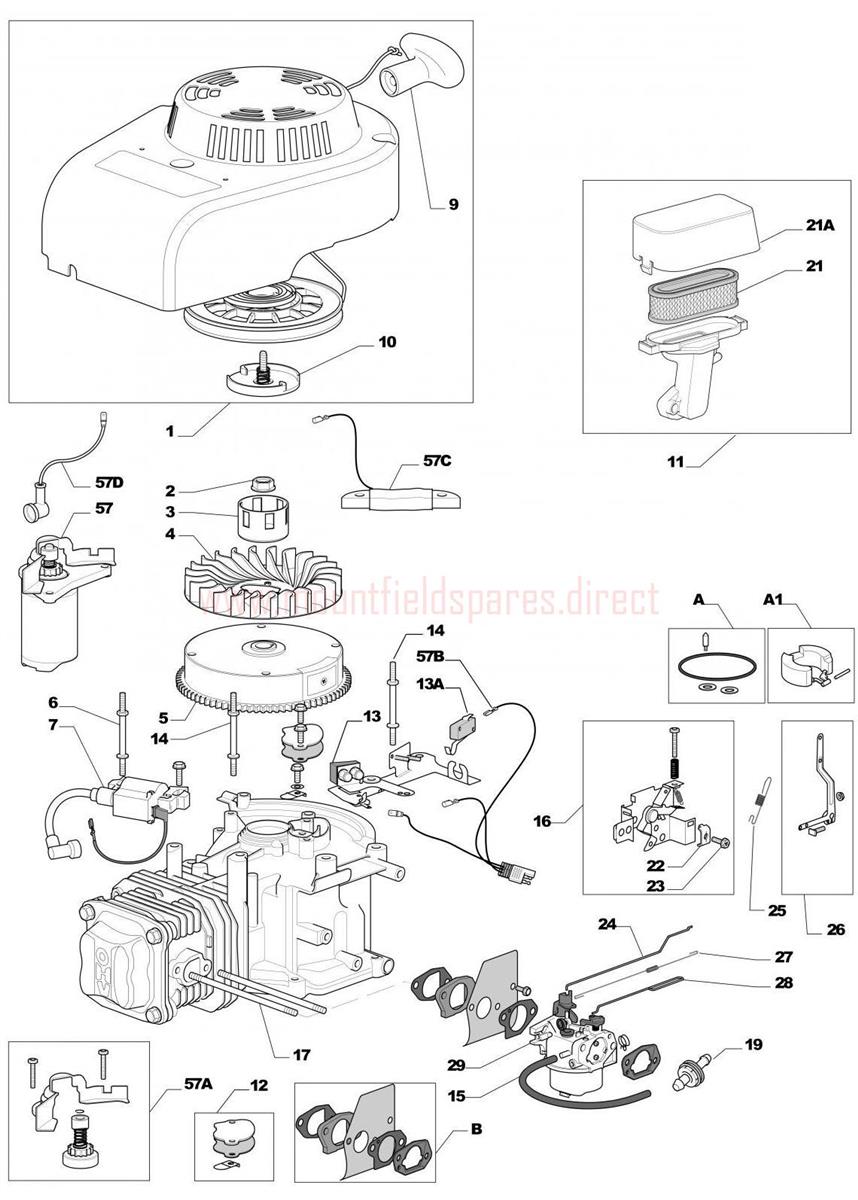

Engine - GGP WBE0704 (1) assembly details for Mountfield 725V (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550277/1RECOIL ASSEMBLY 196cc OHV [WBE0704]£98.40 Add to
002118550336/0NUT£6.42 Add to
003118550335/0STARTER CUP£22.61 Add to
004118550254/0FLYWHEEL FAN£21.26 Add to
005118550418/0FLYWHEEL£143.37 Add to
006118550301/0STUD BOLT£7.10 Add to
007118550417/0IGNITION COIL£45.26 Add to
009118550274/0RECOIL HANDLE£15.81 Add to
00A118550389/0CARBURETTOR REPAIR KIT£10.09 Add to
00B118550249/0CARBURETTOR GASKET SET£18.61 Add to
010118550275/1STARTER PAWL KIT£12.68 Add to
011118550423/1AIR FILTER ASSEMBLY£36.54 Add to
012118550305/0Gasket Assy (OBSOLETE)N/A
014118550302/0STUD BOLT (OBSOLETE)N/A
015118550428/0FUEL PIPE£7.63 Add to
016118550398/0LIFTER VALVE£28.74 Add to
017118550412/0Stud Bolt (OBSOLETE)N/A
019118550427/0FUEL FILTER£5.87 Add to
021118550421/0AIR FILTER£19.35 Add to
022118550337/0CASING CLAMP£12.37 Add to
023118550338/0SCREW£7.36 Add to
024118550424/0GOVERNOR LINK ROD£5.63 Add to
025118550261/0SPRING GOVERNOR£3.15 Add to
026118550267/0GOVERNOR ARM ASSEMBLY£12.95 Add to
027118550263/0SPRING£3.15 Add to
028118550265/0CHOKE CONTROL ROD£3.69 Add to
029118550252/0CARBURETTOR£71.14 Add to
057118550401/1STARTER MOTOR£145.20 Add to
0A1118550388/0CARBURETTOR FLOAT KIT£14.89 Add to
13A118550399/0SWITCH ASSEMBLY ENGINE STOP£20.24 Add to
21A118550422/1AIR FILTER COVER£21.67 Add to
57A118550402/0STARTER DRIVE KIT£41.97 Add to
57B118550419/0SWITCH WIRES-STARTER MOTOR£35.71 Add to
57C118550420/0CHARGE COIL ASSEMBLY£46.61 Add to
57D118550395/0STARTER MOTOR CABLE£30.26 Add to
