Baldes Engagement

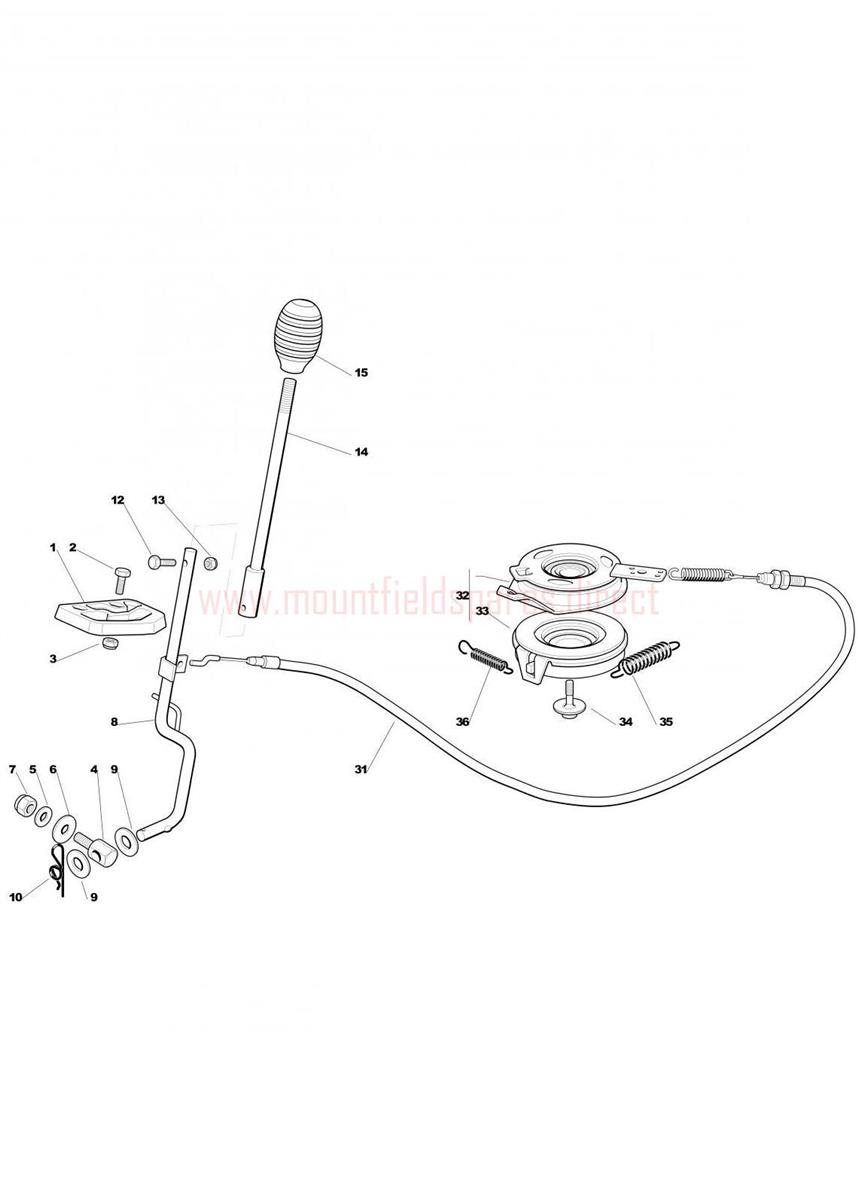

Baldes Engagement assembly details for Mountfield R25V (20110221) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	127487001/0	PLASTIC GUIDE SHOE	£2.06	Add to
002	112791200/1	SCREW TE M6 x 16	£1.79	Add to
003	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
004	127510107/0	FULCRUM PIN	£4.91	Add to
005	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
006	322672152/0	ANTI-FRICTION WASHER 8.2 x 30 x 0.8	£1.91	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
008	384317073/1	LOWER PTO LEVER ASS.Y	£27.56	Add to
009	321660100/0	THRUST WASHER 13 X 22 X 0.5	£2.32	Add to
010	124487998/0	R CLIP D=2	£2.06	Add to
012	112789020/0	HEX-HEAD SCREW M5 x 25	£2.06	Add to
013	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
014	184317079/0	GEARSHIFT	£19.09	Add to
015	125394510/0	CONTROL KNOB [BLACK]	£4.35	Add to
031	384207104/1	PTO CABLE	£32.99	Add to
032	118399065/1	MECHANICAL CLUTCH	£242.88	Add to
033	118399066/1	CLUTCH LOWER HALF	£211.50	Add to
034	112735460/0	CLUTCH BOLT	£9.07	Add to
035	127430579/0	CLUTCH SPRING	£3.24	Add to
036	122450110/0	ROLLER SPRING	£7.64	Add to
