Grasscatcher

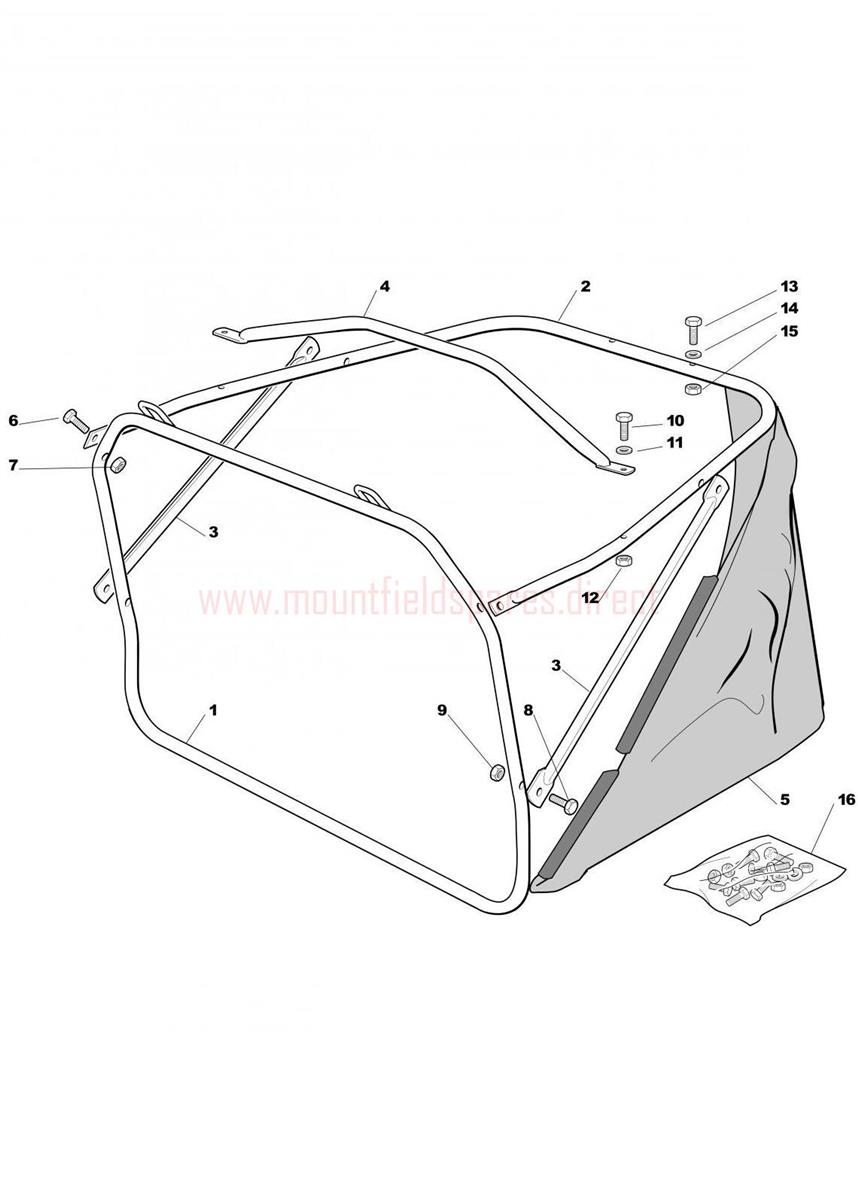

Grasscatcher assembly details for Mountfield R25V (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384801121/0FRONT GRASSCATCHER FRAME£49.29 Add to
002384801119/0UPPER GRASSCATCHER FRAME£30.48 Add to
003327650129/0SIDE STIFFENING£7.78 Add to
004384394051/0FRONT HANDLE EL63£14.58 Add to
005184106068/0GRASSCATCHER BAG 63cm£105.17 Add to
006112789020/0HEX-HEAD SCREW M5 x 25£2.06 Add to
007112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
010112789210/0SCREW M5 x 35£2.06 Add to
011112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
013112674530/0HEX-HEAD SCREW M5x45 UNI 5737 ACC.8.8£2.06 Add to
016184180186/0SCREW OUTFIT GRASSCATCHER EL 63£8.14 Add to
