Steering

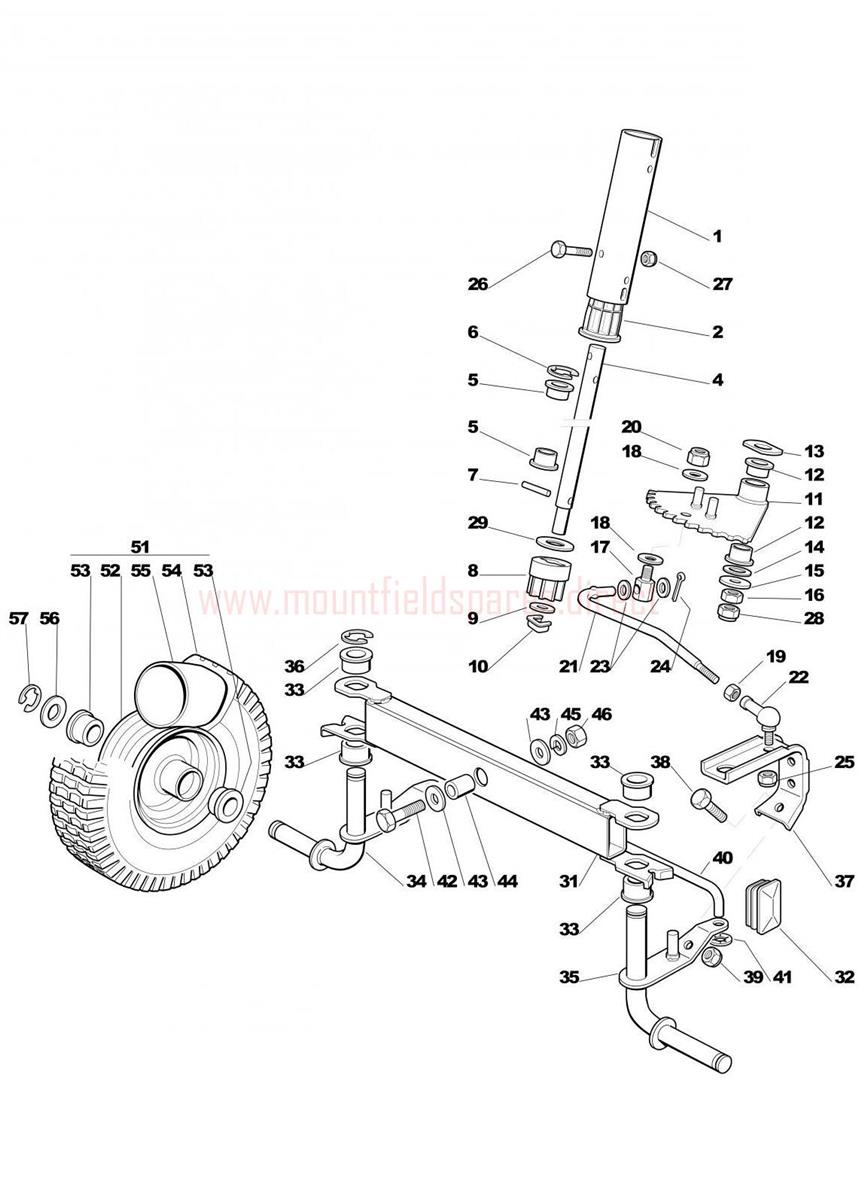

Steering assembly details for Mountfield R25V (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001127340305/1COLUMN EXTENSION£18.82 Add to
002127047005/1BUSH£5.76 Add to
004127520052/0LCSTEERING COLUMN£57.52 Add to
005127047004/0PLASTIC BUSH£2.06 Add to
006112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
007112645710/0CYLINDRICAL PIN D=6 X 32£2.14 Add to
008127570050/0STEERING PINION£10.95 Add to
009112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
010112436030/0PIN PLATE£1.91 Add to
011384735553/1STEERING QUADRANT£30.71 Add to
013327670054/0WASHER£10.09 Add to
014322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
015112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
016112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
018325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
020112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
021127034066/2STEERING CONTROL ROD£39.80 Add to
022122746610/0ANGULAR JOINT NS13 M8£17.86 Add to
024112141418/0SPLIT PIN 3 x 20£1.76 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
026112689515/0HEX-HEAD SCREW M6 x 45£2.06 Add to
027112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031384034059/0FRONT WHEELS AXLE ASS.Y£40.22 Add to
032118737852/0END CAP£2.06 Add to
034384230405/0RIGHT STUB AXLE£52.06 Add to
035384230407/0LEFT STUB AXLE£50.70 Add to
036112000970/0CIRCLIP D=12£2.02 Add to
037327787041/0STUB AXLE CONNECTION TIE ROD£4.52 Add to
038112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
040127840051/0TIE ROD£15.60 Add to
041112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
042112692695/0HEX-HEAD SCREW M12 x 60£2.06 Add to
043112523100/0WASHER M12 14 x 36 x 3£2.06 Add to
044125160016/1EQUALIZER SPACER£5.46 Add to
045112587100/0WASHER M12£2.06 Add to
046112295300/0HEXAGON NUT M12£2.06 Add to
051184680056/1FRONT WHEEL ASSEMBLY£75.23 Add to
052184044002/0FRONT WHEEL RIM£39.80 Add to
053127045070/0PLASTIC BUSH£2.87 Add to
054127590058/0FRONT TYRE 4.10/3.50-4 [KING]£49.34 Add to
055127590056/0INNER TUBE 4.10/3.50 x 4£11.05 Add to
056112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
057112000970/0CIRCLIP D=12£2.02 Add to
