Body

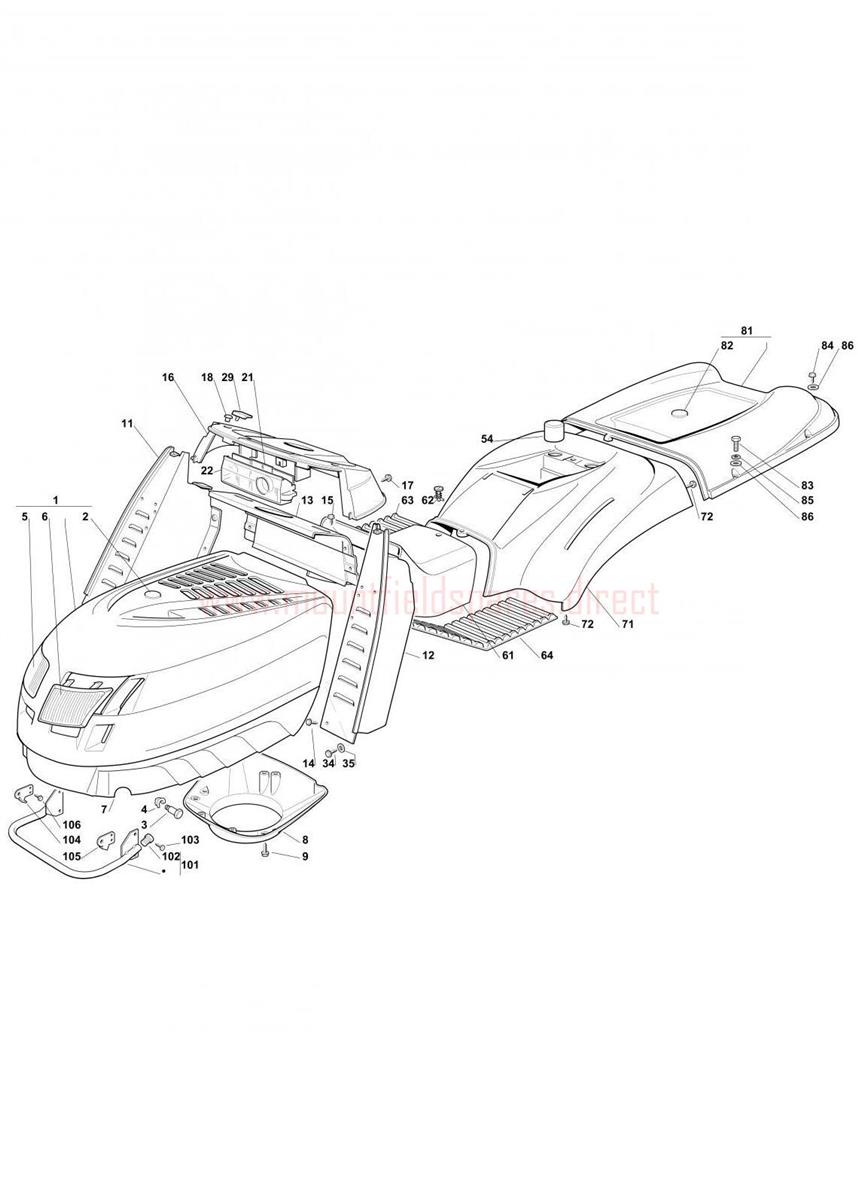

Body assembly details for Mountfield TM1640H (20110218) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076841/3ENGINE HOOD [RED] FROM 01/09/2004£102.06 Add to
002325547025/1COVER [RED]£2.18 Add to
003125510023/1PIN£3.69 Add to
004112436050/1PIN PLATE D=8£5.21 Add to
005125410860/0RIGHT HEADLIGHT£10.42 Add to
006125410861/0LEFT HEADLIGHT£10.42 Add to
007125076808/0LOWER ENGINE HOOD£45.64 Add to
008325108028/0LONG AIR CONVEYOR£8.14 Add to
009112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
011382785022/8RIGHT DASHBOARD SUPPORT£31.63 Add to
012382785021/7LEFT DASHBOARD SUPPORT£31.63 Add to
013382785137/0CENTRAL DASHBOARD SUPPORT£16.16 Add to
014112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
017112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
018125120200/0CAP (OBSOLETE)£2.54 Add to
021125600009/0PROTECTIVE COVER£3.00 Add to
022125600051/0PC BOARD PROTECTION COVER£10.49 Add to
023125735110/3FUEL TANK [7 LITRES]£53.42 Add to
034112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
035112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
054325122000/2PROTECTION CAP£2.06 Add to
061325110239/1CENTRAL COVER [RED] HYDRO£32.99 Add to
062125580020/2SPRING TENSIONED SCREW£7.23 Add to
063125110270/0RIGHT FOOTBOARD COVER£26.93 Add to
064125110260/2LEFT FOOTBOARD COVER£24.95 Add to
071325109701/1WHEELS COVER [RED] HYDRO£129.74 Add to
072112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
081382110200/1GRASSCATCHER TOP [RED]£152.39 Add to
083112674701/0SCREW TE M6 x 35£2.06 Add to
084112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
085112582101/0WASHER M6£2.06 Add to
086112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
101382869006/1MUFFLER TUBE GUARD£34.35 Add to
102118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
103112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
104325547089/1RIGHT PLATE£4.52 Add to
105325547091/1LEFT PLATE£4.52 Add to
106112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
