Grasscatcher

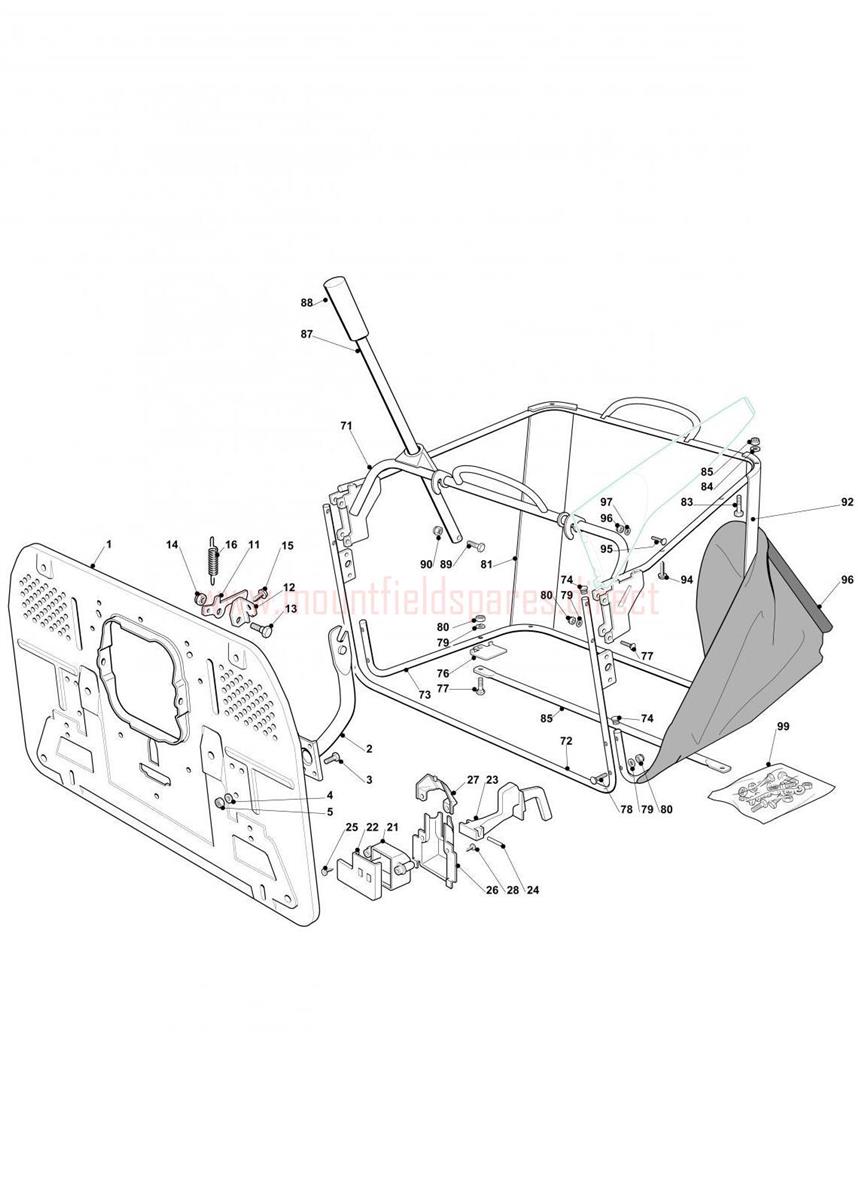

Grasscatcher assembly details for Mountfield TM1640H (20110218) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00182547011/6Plate (OBSOLETE)N/A
002182774225/1GRASSCATCHER SUPPORT CLAMP£32.29 Add to
003112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
004112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011325774417/0HOOKING LEVER£7.04 Add to
012325755031/1CLAMP BRACKET (OBSOLETE) (OBSOLETE)N/A
013125510080/1CLAMP PIN£2.14 Add to
014112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
015112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
016127430579/0CLUTCH SPRING£3.24 Add to
021125600041/0MICRO PROTECTION COVER£2.32 Add to
022125600042/0MICRO PROTECTION COVER£3.41 Add to
023125318124/0MICRO CONTROL LEVER£2.32 Add to
024112400030/0PIN D=3 L=30£1.91 Add to
025112728510/0SELF-TAP SCREW 4.8 x 13£3.15 Add to
026125600047/0MICRO SWITCH PROTECTION COVER£2.06 Add to
027125600048/0MICRO SWITCH COVER£2.06 Add to
028112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
071382800079/1UPPER GRASSCATCHER FRAME£187.79 Add to
072382800089/1FRONT GRASSCATCHER FRAME£80.68 Add to
073325800017/0LOWER GRASSBOX FRAME (OBSOLETE)N/A
074118566116/0HANDLE CAP BLACK D=21£2.74 Add to
075382650043/0LOWER REINFORCEMENT BAR£21.14 Add to
076325547131/0STOPPING PLATE£4.10 Add to
077112815220/0SCREW M6 x 35£2.06 Add to
078112815245/0SCREW M6 x 45£2.06 Add to
079112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
080112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
081325032013/0GRASSCATCHER R/H ANGLE SUPPORT£16.22 Add to
082325032015/0GRASSCATCHER L/H ANGLE SUPPORT£16.22 Add to
083112689500/0SCREW M6 x 40£2.06 Add to
086182105980/0GRASSCATCHER BAG£147.66 Add to
087125869029/1TIPPING LEVER£28.43 Add to
088125394508/0KNOB£4.52 Add to
089112674550/0SCREW TE M6 x 30£2.06 Add to
094112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
099382180037/3GRASSCATCHER SCREW OUTFIT£57.31 Add to
