Transmission (2)

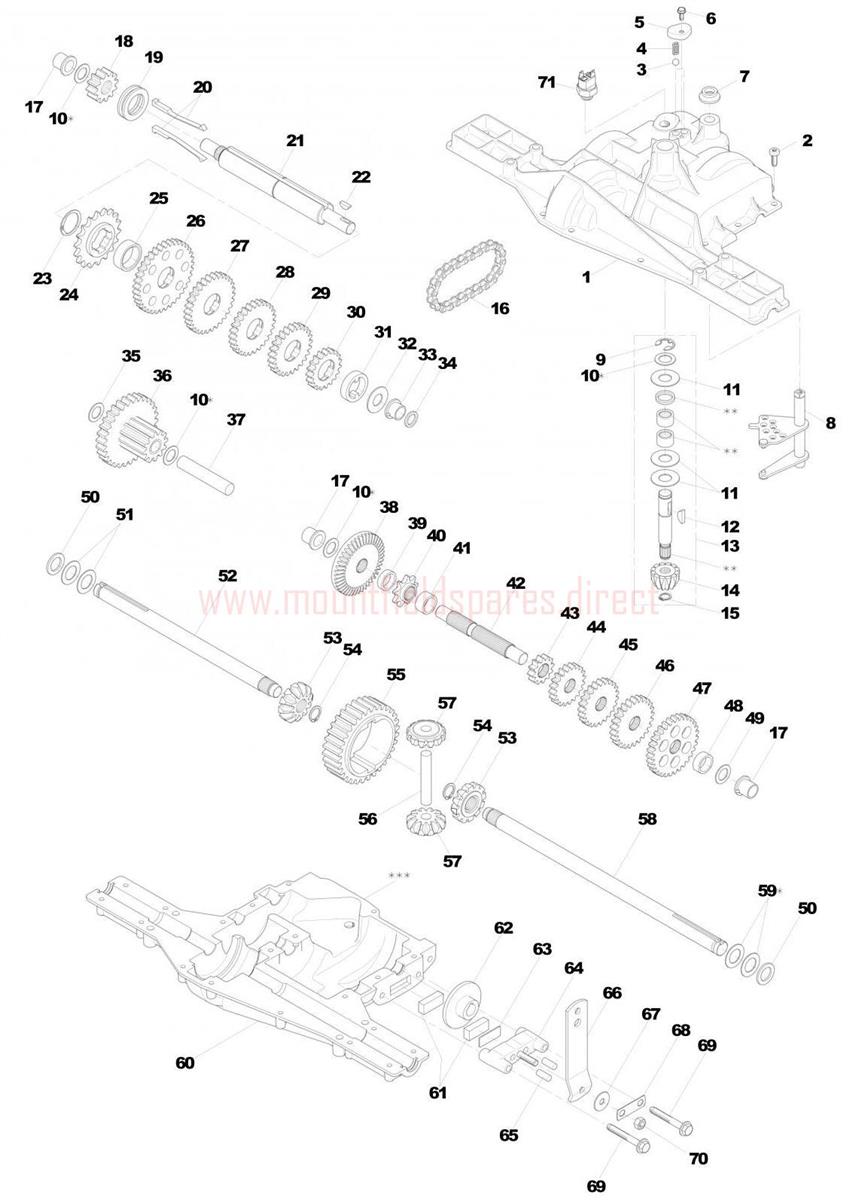

Transmission (2) assembly details for Mountfield TM40 (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001F000-5962-Z0UPPER HOUSING£192.70 Add to
002F000-1919-00SCREW,TAP£5.45 Add to
003F000-5947-00DETENT BALL (OBSOLETE)N/A
004F000-5948-00SPRING DETENT (OBSOLETE)N/A
005F000-5950-00Cover, Detent (OBSOLETE)N/A
006F084-0052-00SCREW£5.92 Add to
007F000-7010-00V-RING (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
008F000-6517-00Assy, Kit, Shifter (OBSOLETE)N/A
009F000-1106-00CIRCLIP (OBSOLETE)N/A
010F000-4689-00ASSY,KIT,SHIM,625 SHAFT (OBSOLETE)N/A
011F000-3876-00WASHER£9.14 Add to
012F000-1746-00WOODRUFF KEY (OBSOLETE)N/A
013F000-6595-01INPUT SHAFT SERVICE KIT£165.76 Add to
014F000-6595-01INPUT SHAFT SERVICE KIT£165.76 Add to
015F000-3624-00CIRCLIP£6.39 Add to
016F000-3625-00CHAIN,24 PITCHES£101.13 Add to
017F000-5510-00FLANGE BEARING£20.16 Add to
018F000-5627-00GEAR, SPUR 12T£18.42 Add to
019F000-5303-00SHIFTER BOOT£88.08 Add to
020F000-4758-00Assy, Kit, Clutch Keys (OBSOLETE)N/A
021F000-5737-00Shaft, Intermediate (OBSOLETE)N/A
022F000-1375-00WOODRUFF KEY (OBSOLETE)N/A
023F000-3627-00RING,RETAINING£7.73 Add to
024F000-3830-00SPROCKET,18T£68.94 Add to
025F000-3841-00Spacer, 1.131 X 1.45 X.494 (OBSOLETE)N/A
026F000-5365-00SPUR GEAR 37T (OBSOLETE)N/A
027F000-3867-00GEAR,SPUR,30T£159.45 Add to
028F000-5014-00GEAR,SPUR,27T£50.94 Add to
029F000-3783-00GEAR,SPUR,25T£109.10 Add to
030F000-5202-00GEAR,SPUR, 19T£88.77 Add to
031F000-5027-00SPACER£20.31 Add to
032F000-3628-00Washer, Plain, .640 X1.37 X .061 (OBSOLETE)N/A
033F000-5511-00Bearing, Flange (OBSOLETE)N/A
034F000-5508-00Seal, Oil (OBSOLETE)N/A
035F000-1425-00WASHER (OBSOLETE)N/A
036F000-6358-00Assy, Gear, Comb., 12T& 30T (OBSOLETE)N/A
037F000-3967-00Shaft, Idler (OBSOLETE)N/A
038F000-7003-00GEAR, BEVEL, 36T (OBSOLETE)N/A
039F000-3630-00SPACER£6.22 Add to
040F000-3645-00SPROCKET,9T (OBSOLETE)N/A
041F000-5016-00SPACER£7.82 Add to
042F000-5015-00Shaft, Drive (OBSOLETE)N/A
043F000-5364-00GEAR, SPUR 12T£15.91 Add to
044F000-3866-00GEAR,SPUR,20T£61.73 Add to
045F000-5013-00GEAR,SPUR,23T£45.52 Add to
046F000-3719-00GEAR SPUR 25T£90.57 Add to
047F000-3683-00GEAR SPUR 31T£130.18 Add to
048F000-3714-00SPACER£12.21 Add to
049F000-1145-00WASHER, PLAIN£5.21 Add to
050F000-5130-00SEAL£17.26 Add to
051F000-3184-00WASHER,PLAIN£9.62 Add to
052F000-7025-10Axle, Lh (OBSOLETE)N/A
053F000-5622-00GEAR, MITER 12T SPLINED (OBSOLETE)N/A
054F000-5270-00RETAINING RING£2.32 Add to
055F000-3839-00Gear, Spur, 32T (OBSOLETE)N/A
056F000-3919-00SHAFT,CROSS£38.33 Add to
057F000-5623-00GEAR MITER 12T IDLER (OBSOLETE)N/A
058F000-7025-20Axle, Rh (OBSOLETE)N/A
059F000-4691-00KIT SHIM (OBSOLETE)N/A
060F000-5304-Q0Housing, Lower (OBSOLETE)N/A
061F000-7109-00FRICTION PAD (OBSOLETE) (OBSOLETE)N/A
062F000-5960-00BRAKE DISC (OBSOLETE) (OBSOLETE)N/A
063F000-3758-00SPACER (OBSOLETE) (OBSOLETE)N/A
064F000-5554-00BRAKE JAW (OBSOLETE)N/A
065F000-3843-00DOWEL PIN (OBSOLETE)N/A
066F000-7026-00Lever, Actuating (OBSOLETE)N/A
067F000-3760-00WASHER,PLAIN£4.52 Add to
068F000-5555-00ANTI-ROTATION BRACKET (OBSOLETE)N/A
069F000-5562-00SCREW£6.69 Add to
070F000-3847-00NUT, LOCK (OBSOLETE)N/A
071119410608/1NEUTRAL SWITCH [MECHANICAL]£34.18 Add to
072F000-4300-00GREASE£88.63 Add to
