Transmission

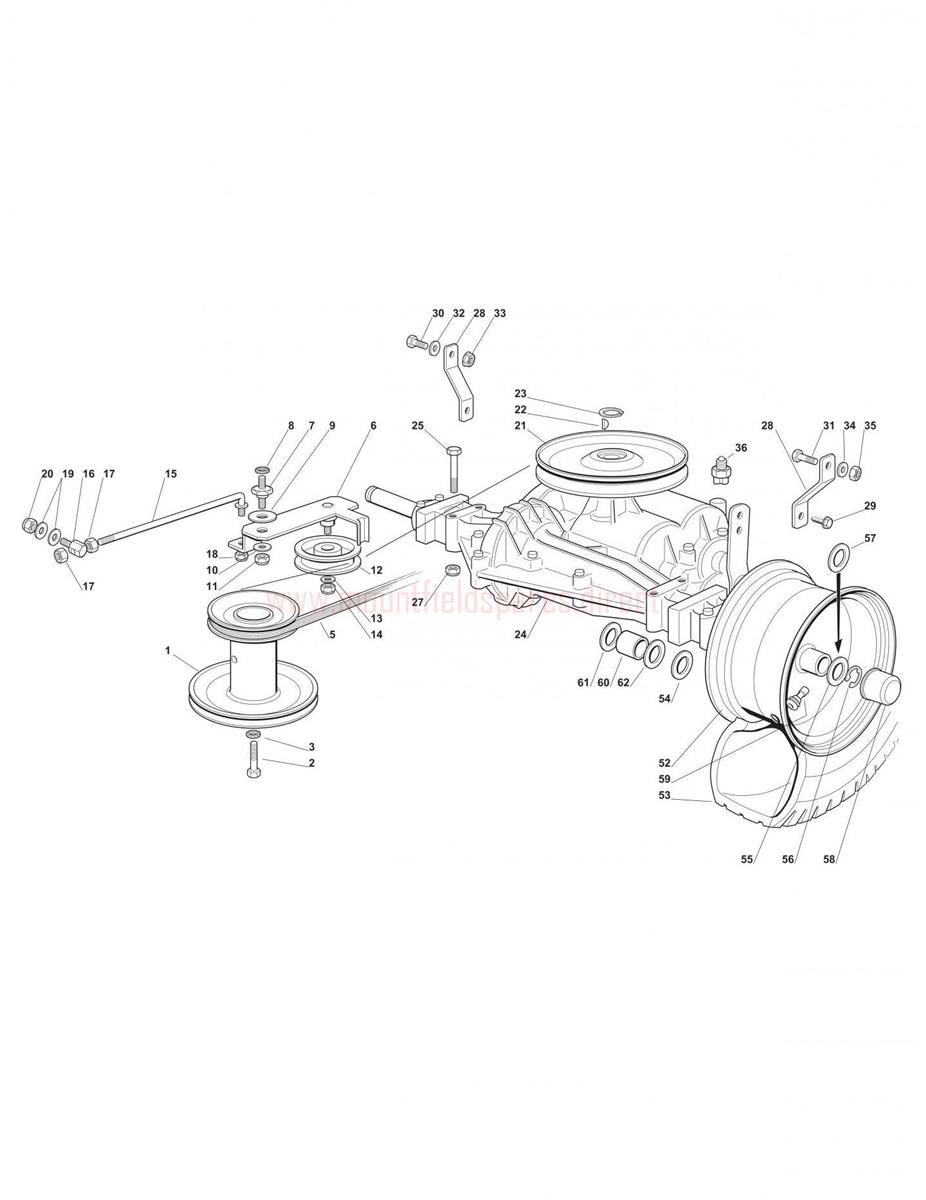

Transmission assembly details for Mountfield 1228M (20120201) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001127604003/1ENGINE PULLEY£83.40 Add to
002112737310/0HEX-HEAD SCREW 7/16" x 2" 20 UNF£1.90 Add to
003112543000/0SAFETY WASHER D=7/16£2.06 Add to
005135061400/0TRAPEZOIDAL BELT A33 1/4£35.71 Add to
006384317055/1TENSION ARM£12.14 Add to
007127510096/0FULCRUM PIN£5.19 Add to
008112540260/0INNER TOOTHED WASHER M8£2.06 Add to
009322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
010325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
011112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
012125601554/0PULLEY£26.18 Add to
013112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
014112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
015127034054/0CONTROL ROD£10.91 Add to
017112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021182601503/0MOBILE PULLEY£102.48 Add to
022112139430/0KEY 3/16" x 3/4"£2.06 Add to
023112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
024118400917/0TRANSAXLE-DANA 4360-210£756.58 Add to
025112691900/0HEX-HEAD SCREW£1.91 Add to
027112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
028327772067/0SUPPORT CLAMP£3.41 Add to
029112735150/0SELF-FORMING SCREW M8x16 UNI 8111TT C15£2.06 Add to
030112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
031112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
033112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
034112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
036119410610/0NEUTRAL SWITCH [MECHANICAL]£54.79 Add to
052184044013/0REAR WHEEL RIM 6" x 4.5"£57.52 Add to
053125590020/0TYRE 15 X 6.00-6 WANDA£65.62 Add to
054112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
055125670005/2SPINDLE WASHER£3.89 Add to
056112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
057112520010/0WASHER£2.18 Add to
058122110230/0HUB COVER£2.06 Add to
059125950000/0PNEUMATIC VALVE£5.73 Add to
060125160034/0WHEELS SPACER L=29.3£4.78 Add to
062125670006/0WASHER£2.06 Add to
