Cutting Plate

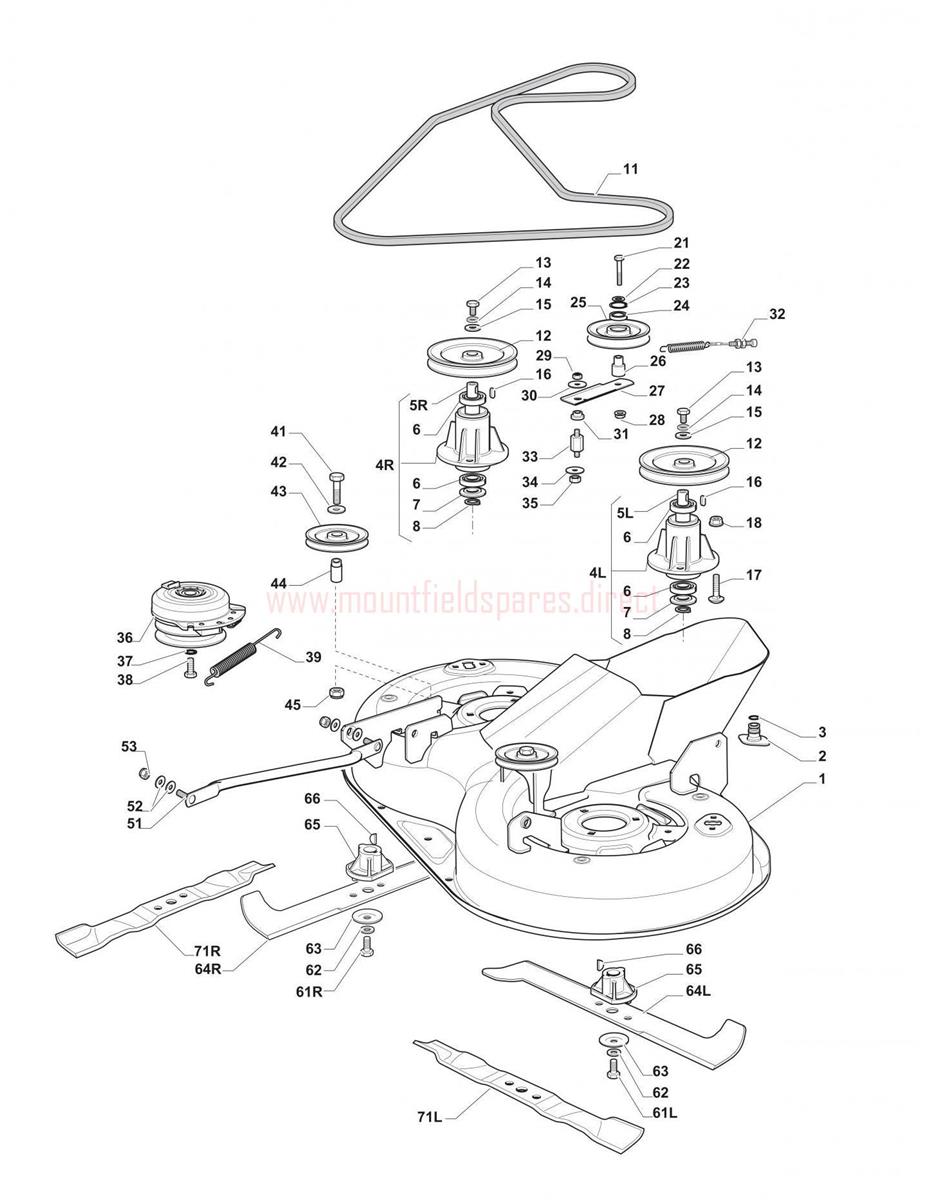

Cutting Plate assembly details for Mountfield 1430-T30M (20120201) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382564113/0CUTTER DECK CASING MP84 [BLACK]£535.63 Add to
002325033086/0WASHING CONNECTION SD 98£2.06 Add to
003119035000/0O RING 10.77 x 2.62£5.46 Add to
006119216047/0BEARING 6204-C-2HRS£13.49 Add to
007325160501/1DUST COVER WASHER£2.06 Add to
008112609260/0CIRCLIP D=20£2.02 Add to
011135061508/0DECK DRIVE BELT AA86£67.86 Add to
012125601585/1BLADE SHAFT PULLEY£45.26 Add to
013112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
014112540260/0INNER TOOTHED WASHER M8£2.06 Add to
015125670007/0FIXING WASHER£2.06 Add to
016112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
0179897-0820-16SCREW M8 x 20£2.32 Add to
018112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
021112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
022112524010/0WASHER M8 8.4 x 24 x 4£1.91 Add to
023112610800/0CIRCLIP D=35£2.06 Add to
024119216047/0BEARING 6204-C-2HRS£13.49 Add to
024119216048/0BEARING£18.27 Add to
025125601595/0BLADE IDLER PULLEY£35.71 Add to
026125160052/0PULLEY SPACER£2.87 Add to
027325318289/0LEVER£7.10 Add to
028112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
029112155020/0SELF-BINDING NUT M10£2.06 Add to
030125670022/0WASHER£2.06 Add to
031125040635/0BUSH£4.78 Add to
032382004618/0DECK ENGAGE CABLE£23.17 Add to
033125160049/0SPACER£6.42 Add to
034112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
035112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
036118399069/0ELECTROMAGNETIC CLUTCH(No Returns on this item)£401.24 Add to
037112543000/0SAFETY WASHER D=7/16£2.06 Add to
038112737320/0THREADED SCREW 7/16" x 3" 20 UNF£4.78 Add to
039125430277/0TENSION SPRING£2.87 Add to
041112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
042112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
043125601555/0PULLEY£30.26 Add to
044125160069/0PULLEY SPACER (OBSOLETE) (OBSOLETE)N/A
045112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
04L382207204/1BLADE SHAFT ASSEMBLY LEFT HAND£102.48 Add to
04R382207205/1BLADE SHAFT ASSEMBLY RIGHT HAND£102.48 Add to
051382000565/1BALANCE ROD£20.99 Add to
052325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
05L125020804/0BLADE SHAFT LEFT HAND£35.71 Add to
05R125020805/0BLADE SHAFT RIGHT HAND£35.71 Add to
063122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
065125463200/0BLADE BOSS£9.82 Add to
066112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
61L112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
61R112735695/1HEX-HEAD SCREW 3/8" x 1 1/2" L/H THREAD£4.23 Add to
64L182004359/0LEFT WINGED BLADE 84cm£22.76 Add to
64R182004358/0RIGHT WINGED BLADE 84cm£22.35 Add to
71L182004361/0LEFT MULCHING BLADE 84cm£20.32 Add to
71R182004360/0RIGHT MULCHING BLADE 84cm£20.32 Add to
