Electrical Parts

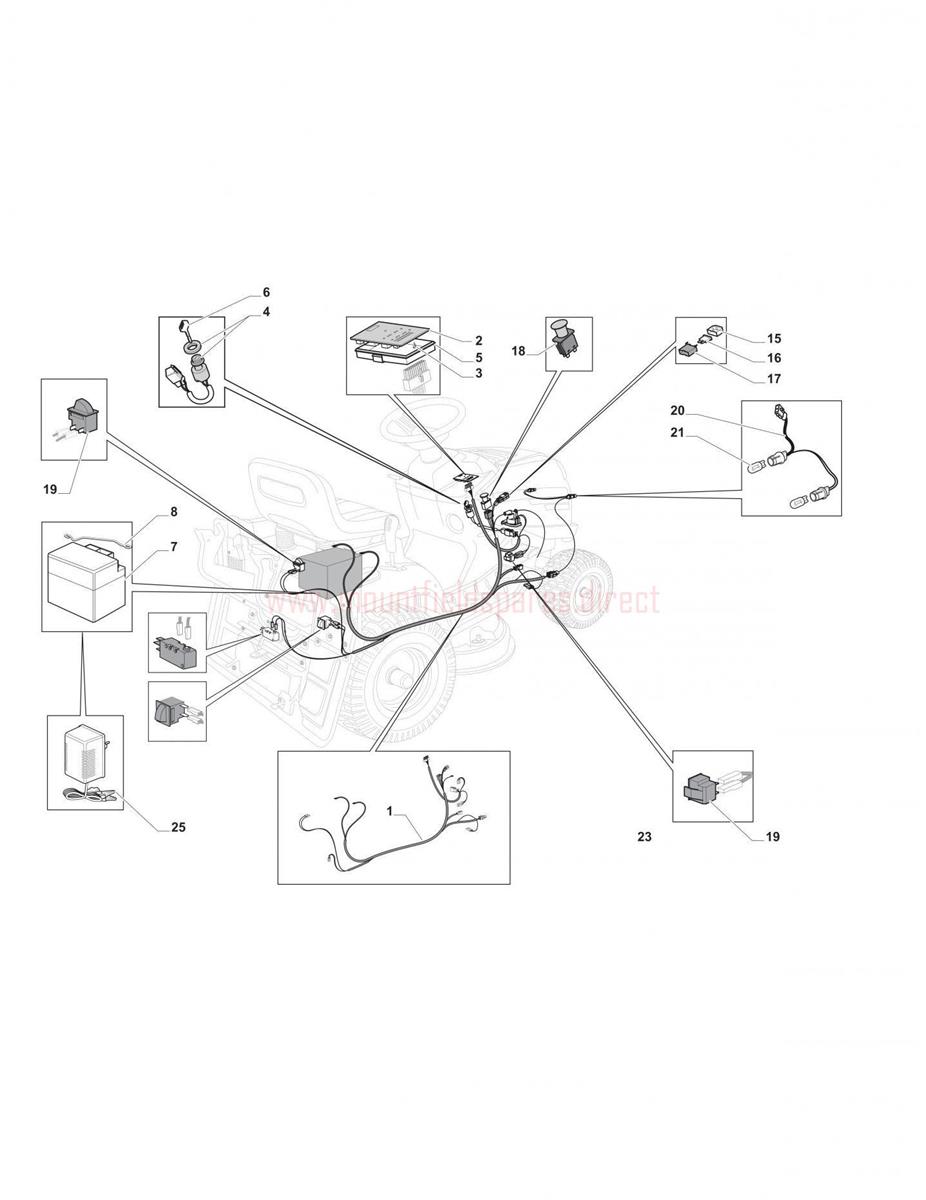

Electrical Parts assembly details for Mountfield 1430-T30M (20120201) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001182040183/0WIRING HARNESS£157.89 Add to
002382722430/0PC BOARD MP84C (NO RETURNS ON THIS ITEM )£119.32 Add to
003112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
004118450075/1STARTING SWITCH£20.45 Add to
005382722430/0PC BOARD MP84C (NO RETURNS ON THIS ITEM )£119.32 Add to
006118210023/0IGNITION KEY [PAIR]£6.29 Add to
007118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
008125430265/1SPRING ROD£1.91 Add to
015133215000/0FUSE HOLDER COVER£3.83 Add to
016133340040/0FUSE 10A£2.47 Add to
016133340036/0FUSE 25A£2.06 Add to
017133500007/0FUSE HOLDER£7.64 Add to
018118450073/0YELLOW CLUTCH SWITCH£15.41 Add to
019119410622/1MICRO SWITCH N.O.£7.10 Add to
020182040186/0HEADLIGHTS CABLE (FOR LAMP VERSION)£11.18 Add to
021118459100/0HEADLIGHT BULB£2.47 Add to
022119410605/1MICRO SWITCH£36.77 Add to
025182180190/1BATTERY CHARGER£61.20 Add to
025182180190/1BATTERY CHARGER£61.20 Add to
