Transmission

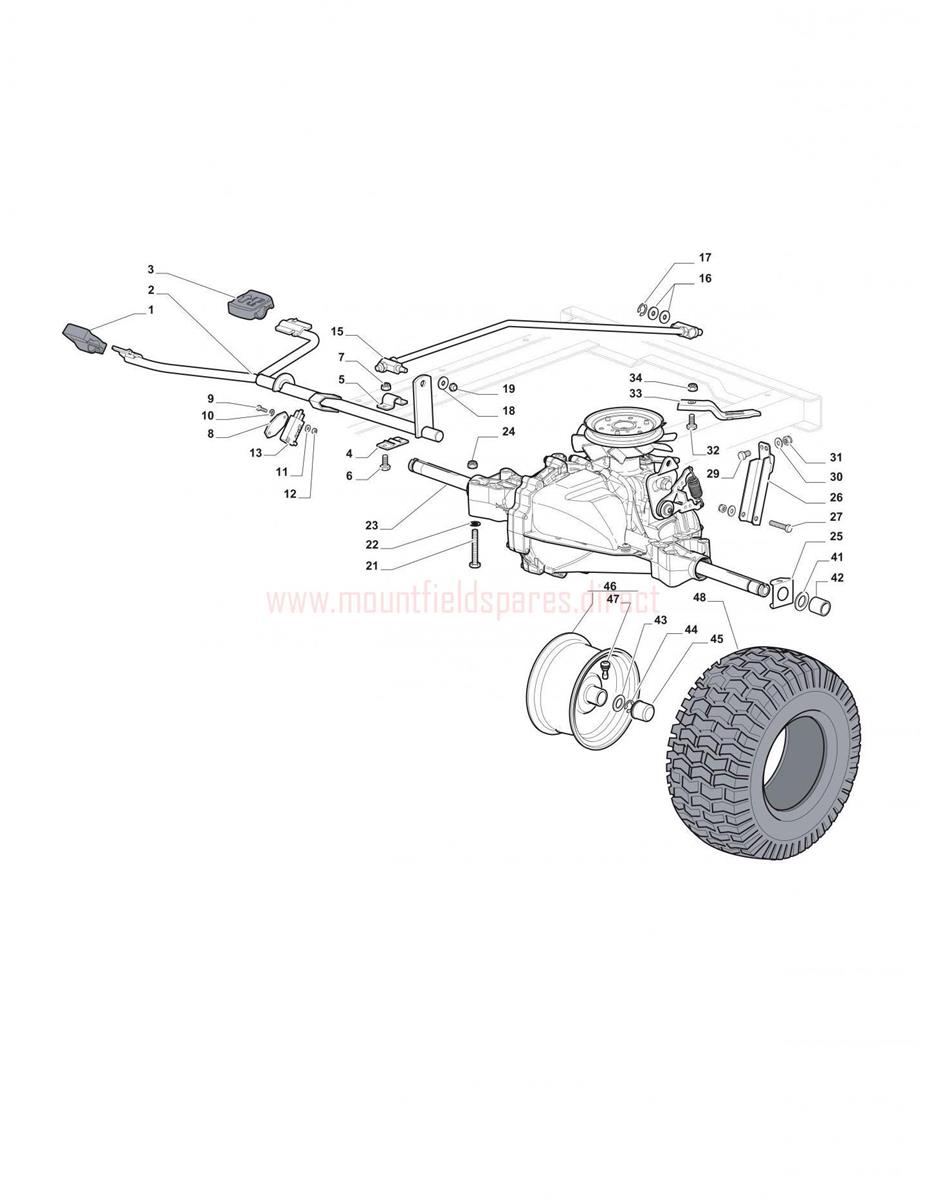

Transmission assembly details for Mountfield 1430H-3000SH (20120201) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325110274/0FRONT PEDAL COVER [BLACK]£6.27 Add to
002382000574/1DRIVE/REVERSE LEVER ASSEMBLY£45.89 Add to
003325110331/0REVERSE GEAR PEDAL [BLACK]£7.36 Add to
004325785350/0AXLE FEED PEDA SUPPORT SD98 HYDRO£2.06 Add to
005325547231/0LIFTING DECK AXLE PLATE£5.05 Add to
006112791213/1SCREW M6 X 18£1.74 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008327546019/0WZ MICRO NEUTRAL FIX PLATE£1.79 Add to
009112735602/0"SELF-FORMING SCREW M3 x 20 ""TAPTITE""£2.06 Add to
010112540020/0EXTERNAL TOOTHED WASHER M4£2.06 Add to
011112581100/0WASHER GROWER M3 UNI 1751 WZ£1.79 Add to
012112581100/0WASHER GROWER M3 UNI 1751 WZ£1.79 Add to
013119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
015382000573/1CONTROL ROD ASSEMBLY£32.99 Add to
016325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
017112000955/0CIRCLIP D=8£1.79 Add to
018112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
021112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
022112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
023118400921/0HYDRO TRANSAXLE T2-ADBF-2X3C-1RX1£913.36 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
025325670026/0ANTI-ROTATION WASHER£7.92 Add to
026325785349/1TRANSAXLE SUPPORT£13.08 Add to
027112691700/0SCREW M8 x 55£1.91 Add to
029112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
030112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
033325318251/0DUMP VALVE LEVER£3.24 Add to
041125670005/2SPINDLE WASHER£3.89 Add to
042125160055/0SPACER£2.87 Add to
044112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
045322110233/0HUB CAP [BLACK]£2.06 Add to
046382000597/0REAR WHEEL RIM 7.5 x 8£86.13 Add to
047125950000/0PNEUMATIC VALVE£5.73 Add to
048125590015/0TYRE 18 x 8.50-8 [WANDA] P512£108.26 Add to
