Steering

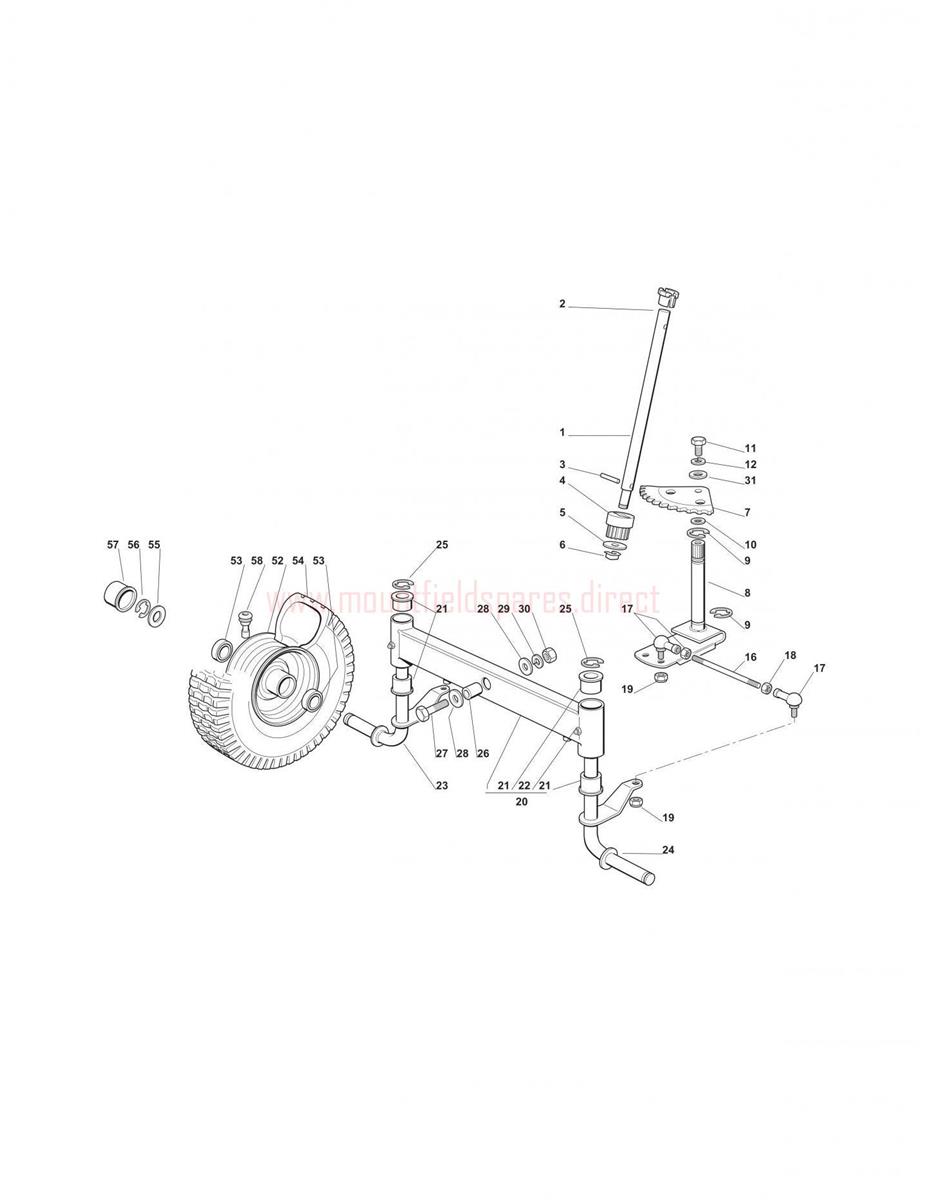

Steering assembly details for Mountfield 2800SH (20120201) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001127520050/0STEERING COLUMN£25.67 Add to
002125034004/0STEERING COLUMN BUSH£6.09 Add to
003112645710/0CYLINDRICAL PIN D=6 X 32£2.14 Add to
004127570050/0STEERING PINION£10.95 Add to
005112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
006112436030/0PIN PLATE£1.91 Add to
007384735551/0STEERING WHEEL QUADRANT£28.90 Add to
008384000501/0STEERING SHAFT£35.71 Add to
009112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
010112520031/0WASHER 11 x 17 x 0.5£2.06 Add to
011112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
012112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
016127840050/0TIE ROD£5.58 Add to
017122746609/0ANGULAR JOINT M10£18.53 Add to
018112295201/0HEXAGON NUT M10£2.06 Add to
019112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
020184034057/0COMPLETE FRONT AXLE ASSEMBLY£109.29 Add to
021125034002/1BUSH£3.96 Add to
022112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
023384230401/0RIGHT STUB AXLE£61.72 Add to
024384230403/0LEFT STUB AXLE£61.72 Add to
026125160016/1EQUALIZER SPACER£5.46 Add to
027112692695/0HEX-HEAD SCREW M12 x 60£2.06 Add to
028112523100/0WASHER M12 14 x 36 x 3£2.06 Add to
029112587100/0WASHER M12£2.06 Add to
030112295300/0HEXAGON NUT M12£2.06 Add to
031112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
052184044007/0FRONT WHEEL RIM£44.17 Add to
053125122200/2WHEEL BEARING D=20£12.05 Add to
054127590067/0TYRE 11 x 4.00-4 PR2 TL P512 [WANDA]£42.05 Add to
055125670005/2SPINDLE WASHER£3.89 Add to
057122110230/0HUB COVER£2.06 Add to
058125950000/0PNEUMATIC VALVE£5.73 Add to
