Drive And Brake Controls

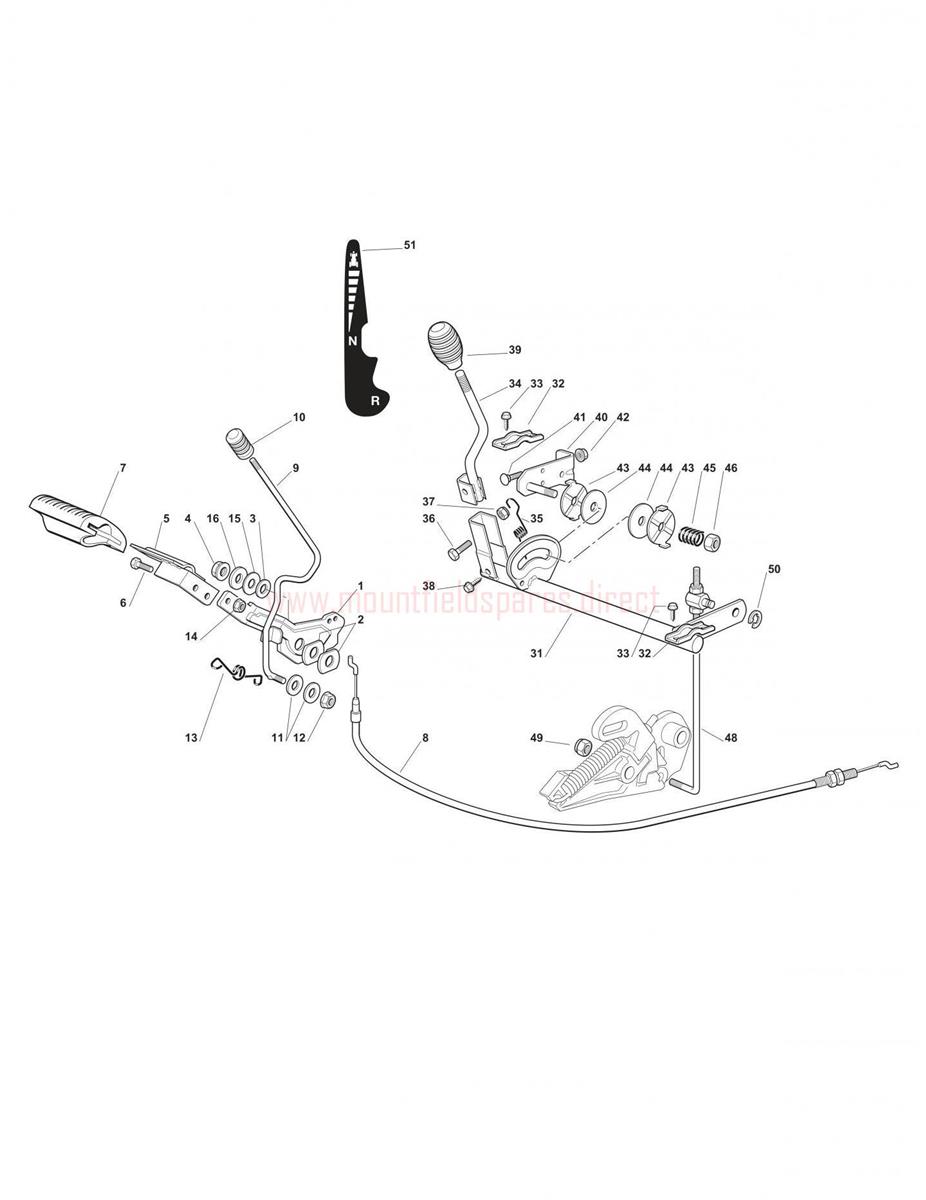

Drive And Brake Controls assembly details for Mountfield 725V-2500SV (20120201) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001327500051/1LOWER BRAKE PEDAL£6.42 Add to
002327670054/0WASHER£10.09 Add to
003112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
004112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
005384503005/0UPPER BRAKE PEDAL£15.13 Add to
006112791200/1SCREW TE M6 x 16£1.79 Add to
007125110269/0BRAKE PEDAL COVER£4.10 Add to
008184207107/0BRAKE CONTROL CABLE£23.39 Add to
009327034064/1PARKING BRAKE CONTROL ROD£12.15 Add to
010127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
011325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
013127430564/0PARKING BRAKE ROD£2.06 Add to
014112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
015327670055/0ANTI-FRICTION WASHER£2.06 Add to
016112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
031384001027/0SPEED CONTROL AXLE£48.07 Add to
032327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
033112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
034384317071/0GEAR CONTROL LEVER ASS.Y£17.51 Add to
035127430570/1GEAR CONTROL ROD SPRING£4.52 Add to
036112674700/0SCREW M6 X 35£2.06 Add to
037112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
039125394510/0CONTROL KNOB [BLACK]£4.35 Add to
040384783047/0CLUTCH GUIDE SUPPORT£15.94 Add to
0419897-0820-16SCREW M8 x 20£2.32 Add to
042112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
043327670053/0WASHER£2.06 Add to
044127207000/0LINING£22.22 Add to
045127430560/0CLUTCH SPRING£15.69 Add to
046112155020/0SELF-BINDING NUT M10£2.06 Add to
048384002084/1GEAR CHANGE ROD£30.07 Add to
049112150000/0SELF-LOCKING NUT M4£1.79 Add to
050112604897/0STARLOCK WASHER D=5£2.06 Add to
