Seat & Steering Wheel

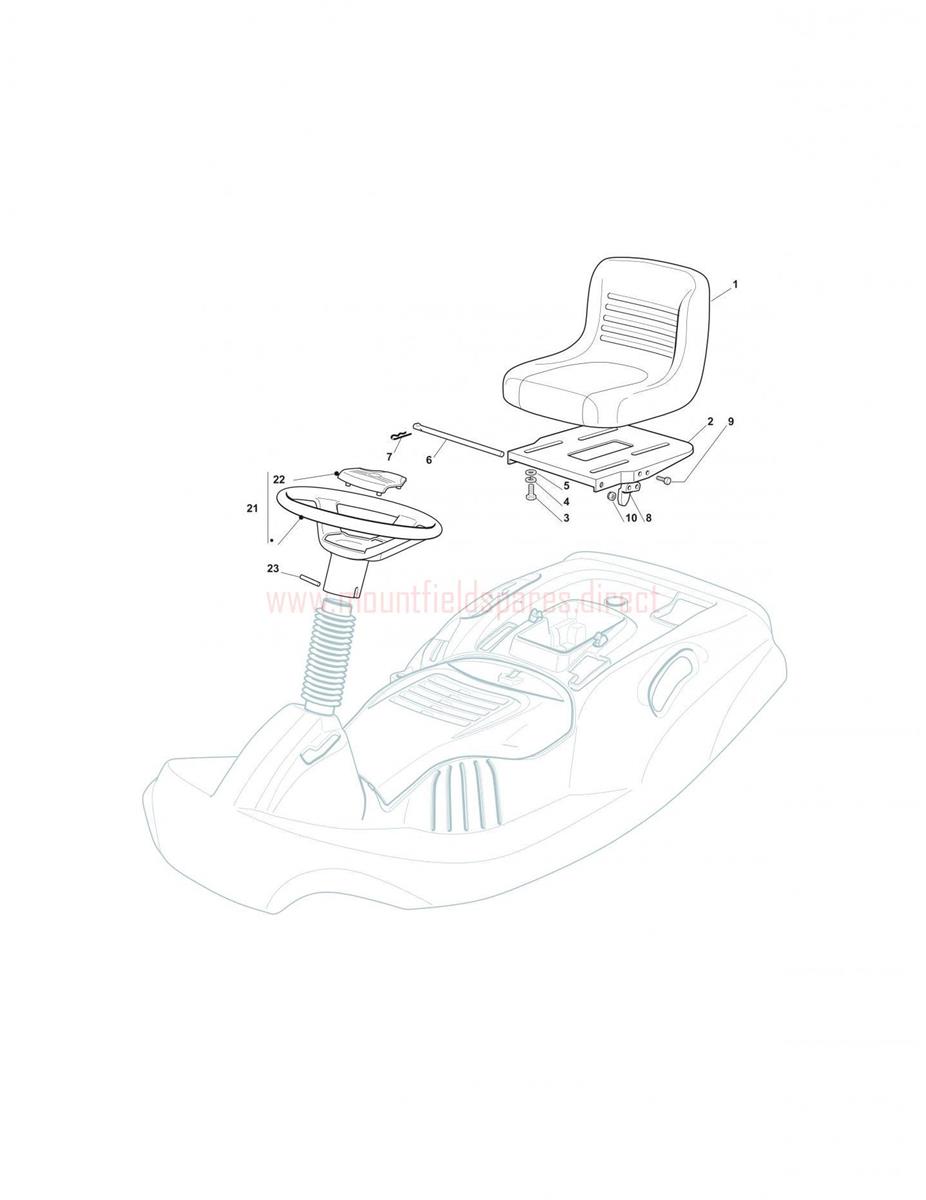

Seat & Steering Wheel assembly details for Mountfield 725V-2500SV (20120201) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125722471/0SEAT MOUNTFIELD£197.87 Add to
002327546039/1SEAT SUPPORT PLATE£19.31 Add to
003112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
004112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
005112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
006127864052/1SEAT ROD£7.10 Add to
007124487997/0SPRING CLIP D=1.8£2.06 Add to
008327063021/1MICRO SEAT OPERATION CAM£2.74 Add to
009112789100/0HEX-HEAD SCREW M5 x 30£2.06 Add to
010112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
021127961232/0STEERING WHEEL [BLACK]£43.86 Add to
022325580501/0CENTRAL STEERING WHEEL CAP£6.69 Add to
023112620305/0SPIROL PIN 6 x 55£1.91 Add to
