Body

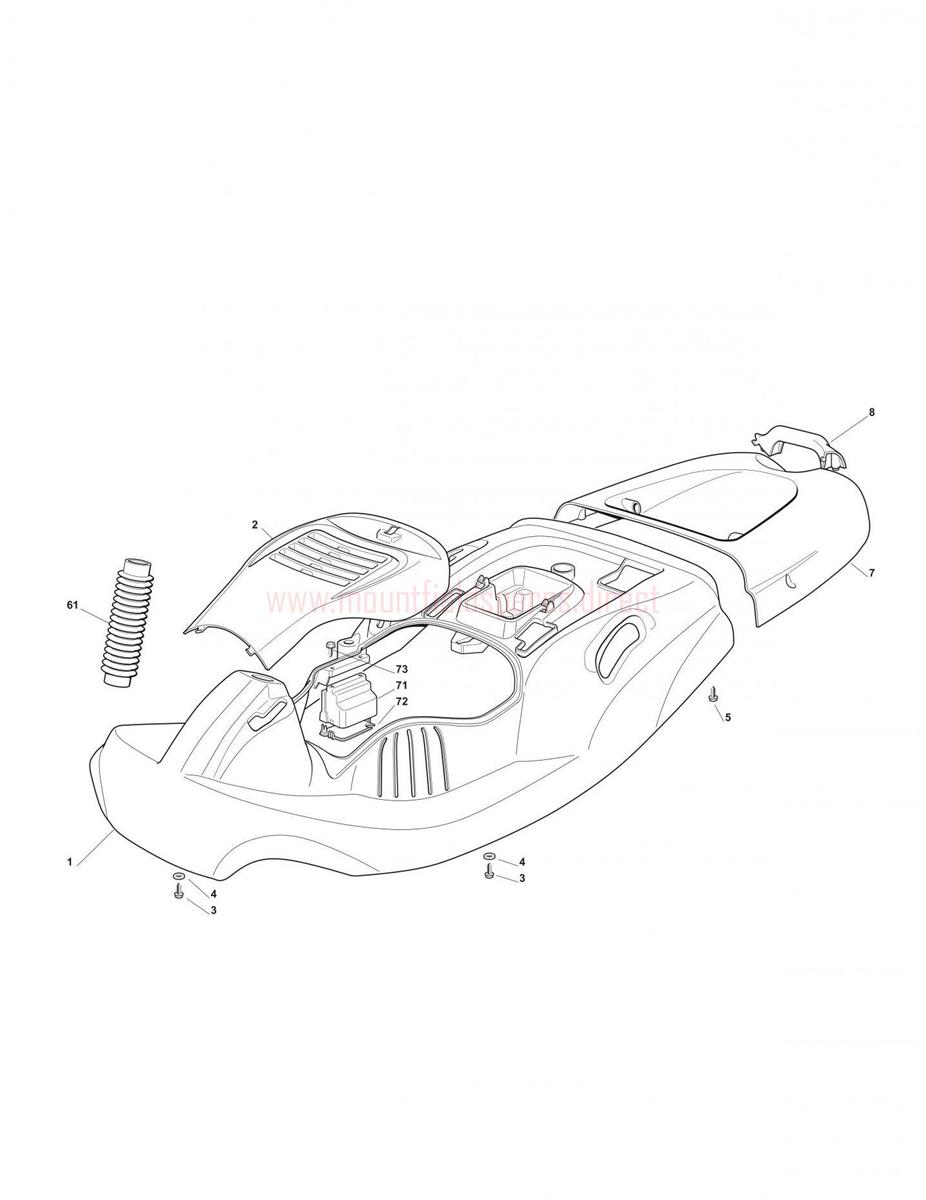

Body assembly details for Mountfield MIPL2012_20120201_R25V 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001327110442/0WHEEL COVERS GREY (B & S)£156.21 Add to
002127110374/0ENGINE COVER [BLACK]£48.81 Add to
003112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
004112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
005112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
007327110443/0GRASSCATCHER COVER [GREY]£66.92 Add to
008127394000/0GRASSCATCHER HANDLE£3.72 Add to
061127600114/1STEERING GAITOR£9.28 Add to
071127600119/0PC BOARD UPPER GUARD£3.28 Add to
072127600118/0PC BOARD LOWER GUARD (OBSOLETE) (OBSOLETE)N/A
073112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
