Engine - Honda GXV 390

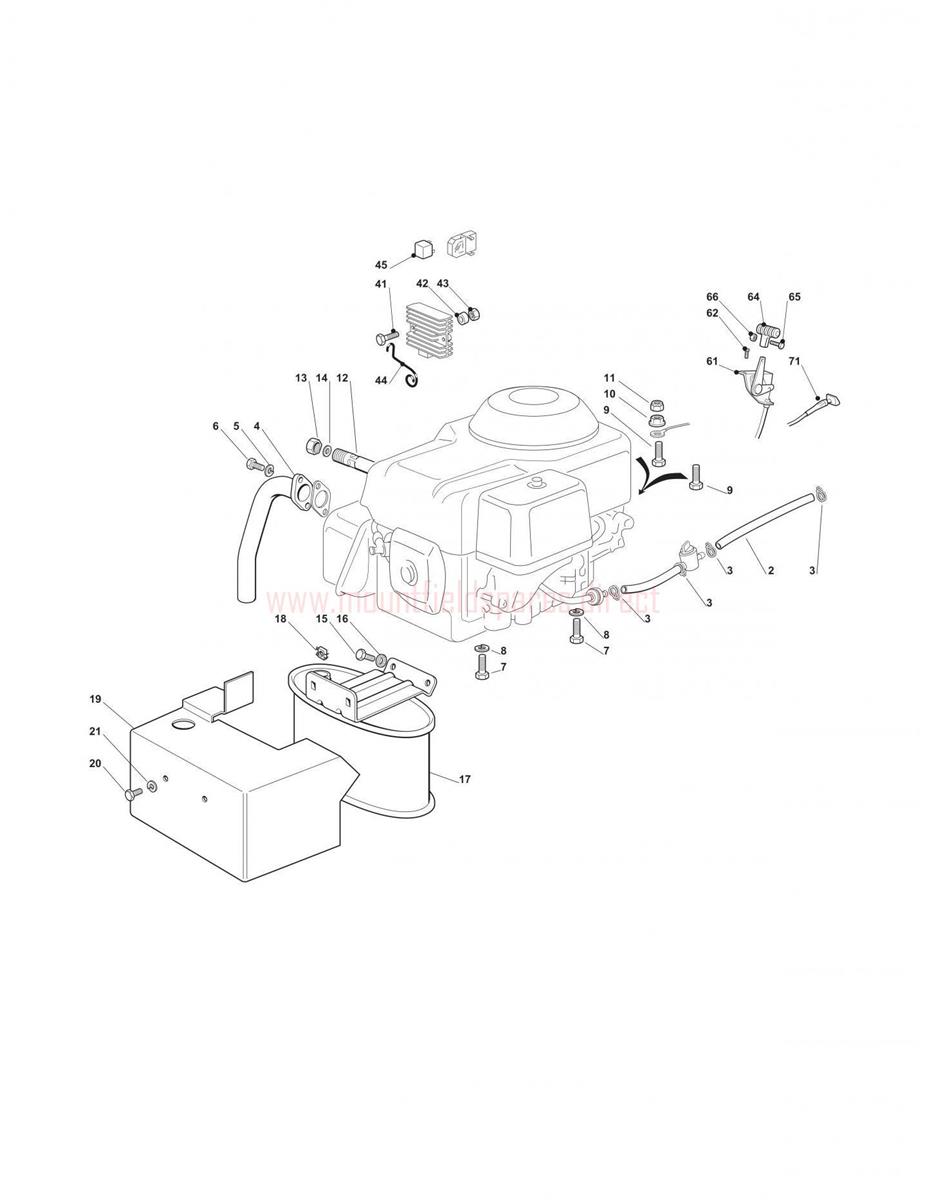

Engine - Honda GXV 390 assembly details for Mountfield MIPL2012_20120203_1436H-1636H-3600SH 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869057/0FUEL TUBE L=1000£20.72 Add to
004118738204/0EXHAUST PIPE£76.59 Add to
005112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
006112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
007112735802/0THREADED SCREW 5/16" x 1" 24UNF£3.00 Add to
009119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
010112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
012127598061/2OIL DISCHARGE TUBE£24.95 Add to
013118737849/0OIL DRAIN PLUG£2.47 Add to
014118401001/1OIL DRAIN SEAL£2.06 Add to
015112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
016112540260/0INNER TOOTHED WASHER M8£2.06 Add to
017182750010/0MUFFLER£117.75 Add to
018112360425/0SQUARE NUT M8£2.18 Add to
019382598003/1MUFFLER GUARD£53.42 Add to
020125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
041112815221/0SCREW M6 x 35£1.79 Add to
042122170950/0SPACER£1.79 Add to
043112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
044127430561/0SPRING£2.87 Add to
045133567000/0RELAY£13.91 Add to
061182000200/1THROTTLE CABLE£23.79 Add to
062112788512/0SCREW M4 x 12£2.06 Add to
064125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
065112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
066112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
071125090007/0CHOKE CONTROL CABLE£18.41 Add to
