Engine - Honda GCV 530

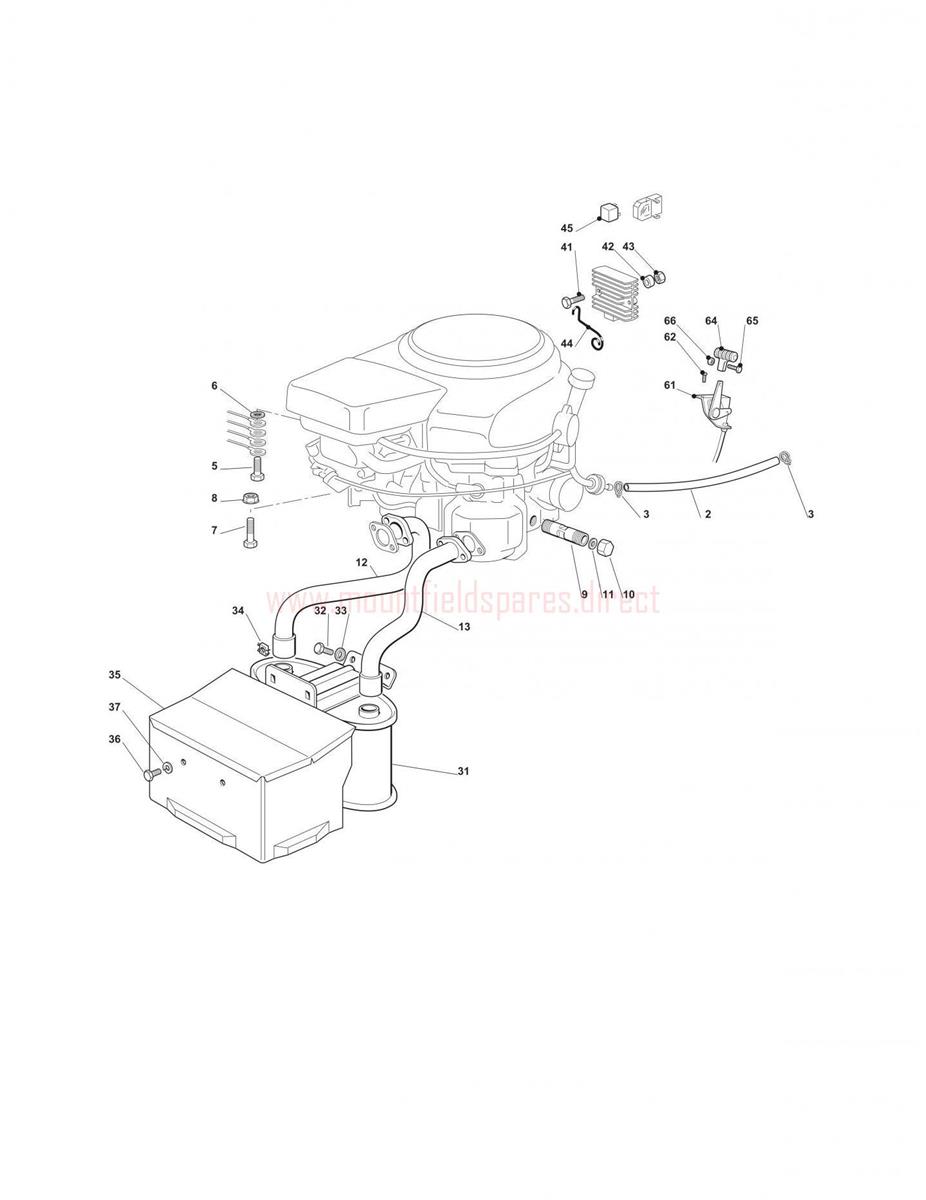

Engine - Honda GCV 530 assembly details for Mountfield MIPL2012_20120203_1540H_4000 SH-TH 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869057/0FUEL TUBE L=1000£20.72 Add to
005112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
006112540260/0INNER TOOTHED WASHER M8£2.06 Add to
007112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
008112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
009125598052/1Oil Discharge Extension (OBSOLETE)N/A
010118737849/0OIL DRAIN PLUG£2.47 Add to
011118401001/1OIL DRAIN SEAL£2.06 Add to
012118738221/0LEFT EXHAUST CONNECTION£94.31 Add to
013118738222/0RIGHT EXHAUST CONNECTION£92.95 Add to
031182750003/0MUFFLER ASSEMBLY£265.02 Add to
032112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
034112360425/0SQUARE NUT M8£2.18 Add to
035382598005/2MUFFLER PROTECTION GUARD£34.35 Add to
036112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
037112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
041112815221/0SCREW M6 x 35£1.79 Add to
042122170950/0SPACER£1.79 Add to
043112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
044127430561/0SPRING£2.87 Add to
045133567000/0RELAY£13.91 Add to
061182000200/1THROTTLE CABLE£23.79 Add to
062125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
064125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
065112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
066112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
