Electrical Parts

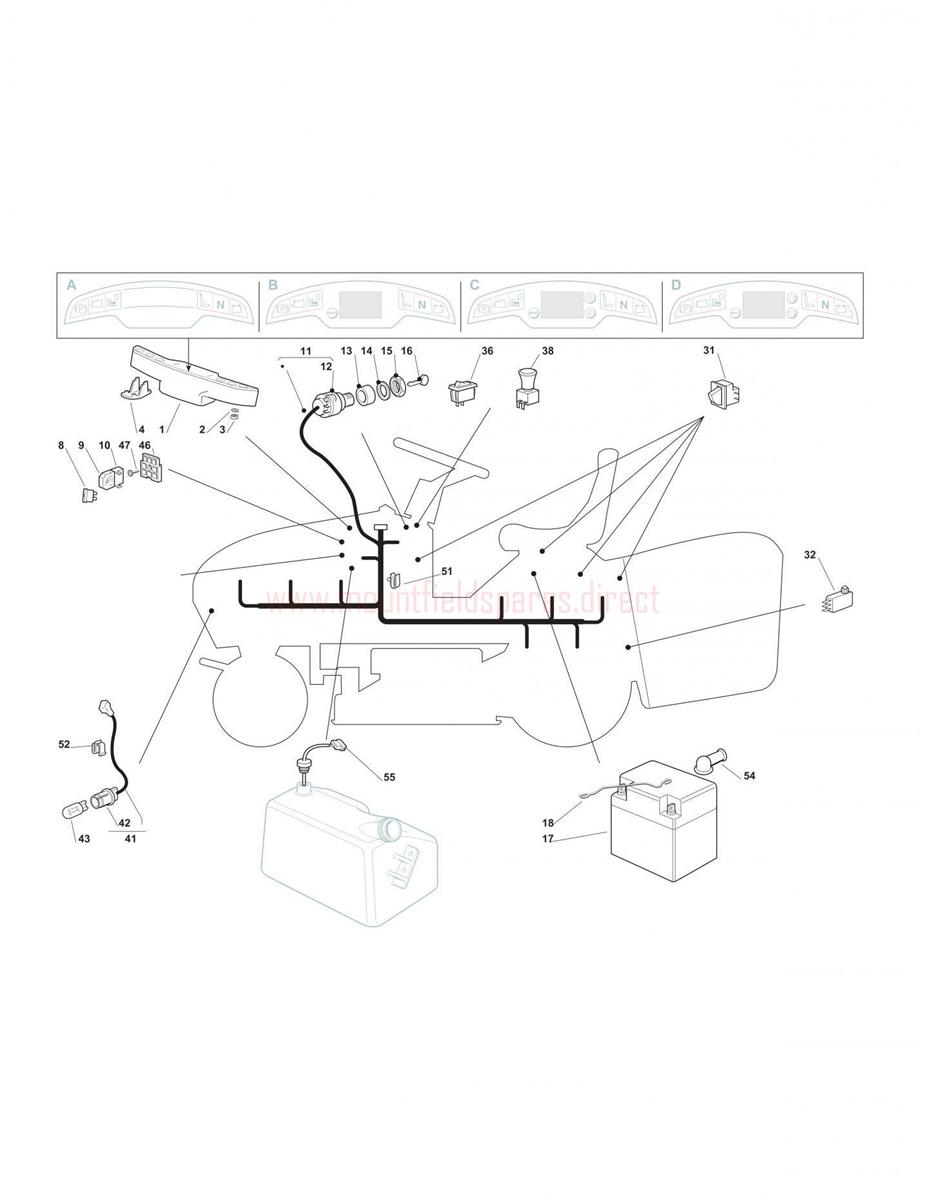

Electrical Parts assembly details for Mountfield MIPL2012_20120203_1840H-2240H 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382722420/2PC BOARD ASSEMBLY£211.40 Add to
001382722421/2PC BOARD ASSEMBLY£320.51 Add to
001382722423/2PC BOARD ASSEMBLY TCX HIGH END£409.09 Add to
001382722422/3PC BOARD ASSEMBLY TCX HIGH-END£463.60 Add to
002112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
003112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
004325031501/0BUZZER SOUND AMPLIFIER£6.69 Add to
008133340040/0FUSE 10A£2.47 Add to
008133340036/0FUSE 25A£2.06 Add to
008133340035/0FUSE 15A£2.06 Add to
009133215000/0FUSE HOLDER COVER£3.83 Add to
010133500007/0FUSE HOLDER£7.64 Add to
010133500007/0FUSE HOLDER£7.64 Add to
011182040147/0WIRING HARNESS£259.19 Add to
011182040148/0HARNESS ASS.Y£214.54 Add to
012118450072/0IGNITION SWITCH£32.19 Add to
013118550136/0PLASTIC RING NUT£2.06 Add to
014118550135/0RING NUT WASHER£2.06 Add to
015118400862/0THREADED RING NUT£4.64 Add to
016118210022/0IGNITION KEY [PAIR]£9.65 Add to
017118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
018125430230/0SPRING ROD£3.55 Add to
031119410622/1MICRO SWITCH N.O.£7.10 Add to
032119410605/1MICRO SWITCH£36.77 Add to
036118450084/0HEADLIGHT SWITCH£4.35 Add to
038118450068/0CLUTCH SWITCH [YELLOW]£55.89 Add to
041182040073/0HEADLIGHTS CABLE£18.68 Add to
043118459100/0HEADLIGHT BULB£2.47 Add to
046133500010/1FUSE HOLDER PLATE£2.06 Add to
047112735170/0SCREW£1.95 Add to
051133320506/0CABLE CLIP£1.79 Add to
052133320504/0CABLE CLIP£2.06 Add to
054118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
055125290001/0FUEL LEVEL INDICATOR£63.77 Add to
