Body

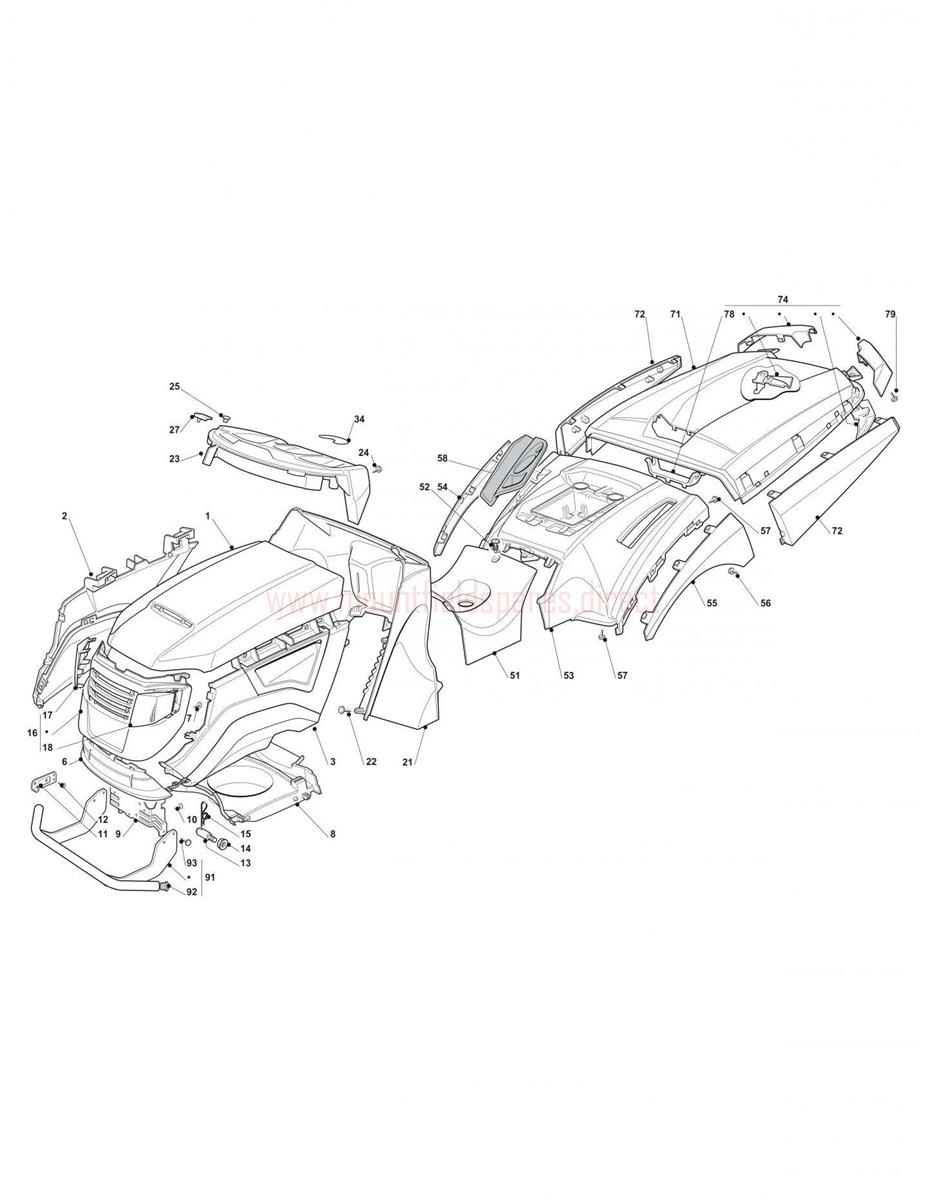

Body assembly details for Mountfield MIPL2012_20120203_2448H 4WD 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076871/0UPPER ENGINE HOOD [RED]£110.66 Add to
002382394614/0RIGHT UPPER HOOD [RED]£82.05 Add to
003382394615/0LEFT UPPER HOOD (OBSOLETE)N/A
006325076870/1LOWER FRONT HOOD [BLACK]£16.91 Add to
007112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
008325108031/0INTAKE CONVEYOR£57.52 Add to
009325774301/2HOOD SUPPORT£18.13 Add to
011325547159/1PLATE£5.05 Add to
012112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
013125510169/1BONNET PIN (ROUND VERSION)£3.15 Add to
014112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
015124487998/0R CLIP D=2£2.06 Add to
016382394613/0FRONT HOOD [BLACK]£84.77 Add to
017325410876/0RIGHT HEADLIGHTS GRILL£9.14 Add to
018325410877/0LEFT HEADLIGHTS GRILL£9.14 Add to
021325785229/1DASHBOARD SUPPORT£68.48 Add to
023325120213/0DASHBOARD BLACK HE W/CRUISE£46.54 Add to
024112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
025125120200/0CAP (OBSOLETE)£2.54 Add to
027125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
034325207185/0COVER£2.06 Add to
051325110386/0COVER RED£39.43 Add to
052125580020/2SPRING TENSIONED SCREW£7.23 Add to
053325109744/0RED WHEELS COVER TC£124.05 Add to
054325109758/0RIGHT WHEEL COVER [BLACK]£18.27 Add to
055325109757/0LEFT WHEEL COVER [BLACK]£18.27 Add to
056112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
057112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
058325207184/0COVER [BLACK]£20.30 Add to
071325110302/0GRASSCATCHER TOP [RED]£170.61 Add to
072382110254/0REAR WHEEL COVER KIT [TCP]£52.06 Add to
074382110258/0ANGLE COVERS KIT [TCP]£35.68 Add to
078325394009/0GRASSCATCHER HANDLE [BLACK]£8.32 Add to
091382869039/0FRONT BUMPER BAR£124.05 Add to
092118737860/0END CAP D=40£2.06 Add to
093112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
