Drive Controls

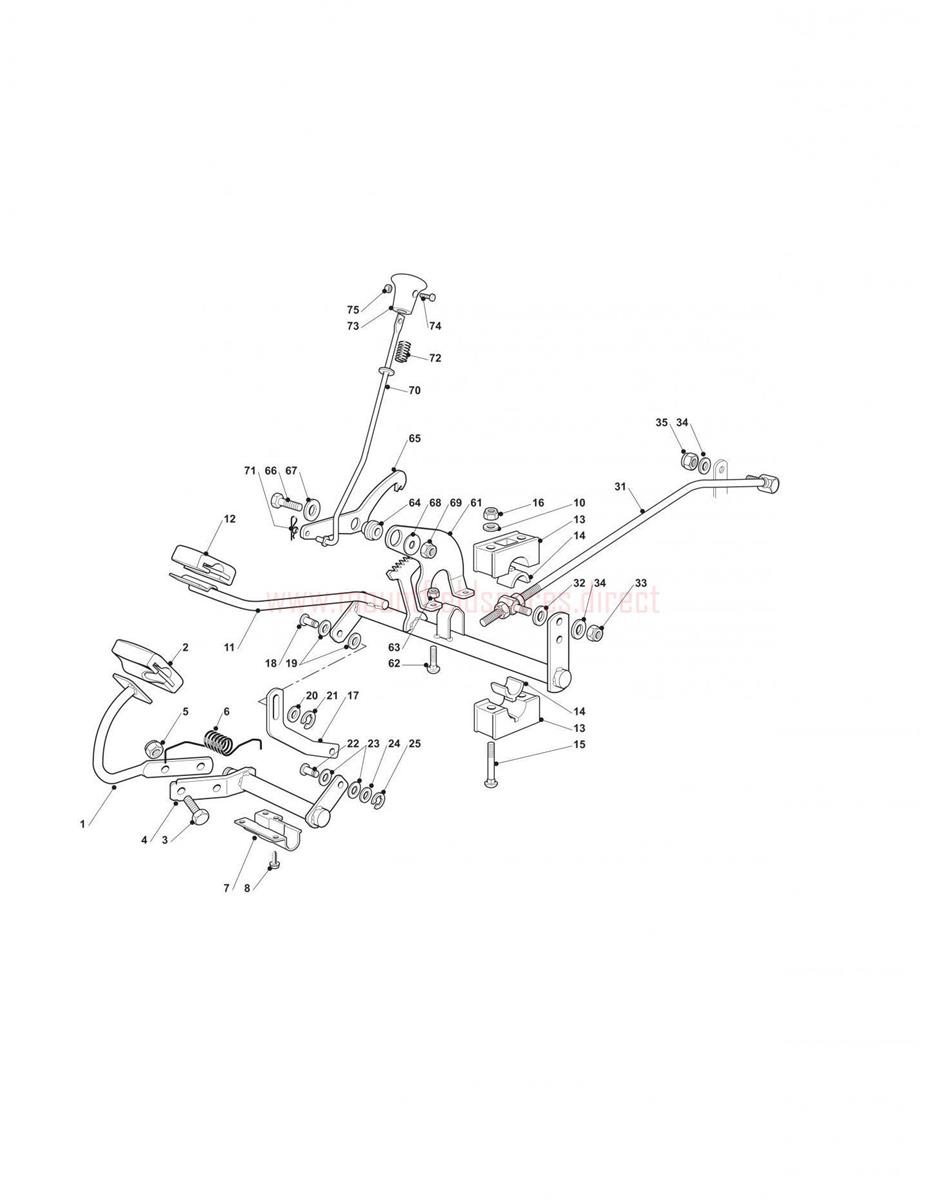

Drive Controls assembly details for Mountfield MIPL2012_20120203_2448H 4WD 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500045/0REVERSE PEDAL£41.16 Add to
002325110275/0REVERSE PEDAL COVER [BLACK]£4.23 Add to
003112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
004382000559/1REVERSE GEAR PEDAL AXLE£28.90 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006125430246/1SPRING£3.00 Add to
007325547133/1CLAMP BRACKET£5.19 Add to
008112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
010112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
011382000617/1DRIVE PEDAL AXLE ASSEMBLY£91.78 Add to
012325110274/0FRONT PEDAL COVER [BLACK]£6.27 Add to
013325785354/0UPPER BRACKET£2.47 Add to
014325034003/0SPACER£2.18 Add to
015112815271/0SCREW M6 x 70£2.06 Add to
016112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
017325547207/0PLATE£7.92 Add to
018125510085/1WZ REVERSE GEAR PEDAL PIN TC£2.06 Add to
019325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
020112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
021112000930/0CIRCLIP D=6£0.79 Add to
031382000612/0ROD£62.81 Add to
032112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
061325774477/0BRACKET SUPPORT£26.18 Add to
062112815210/0SCREW M6 x 20£2.06 Add to
063112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
064125040638/0BUSH£5.87 Add to
065325022000/1HOOK PLATE£41.16 Add to
066119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
068322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
070125033091/0CRUISE CONTROL ROD£13.77 Add to
071124487995/0R CLIP D=2£0.79 Add to
072125430232/0SPRING£2.06 Add to
073325605002/0PUSH BUTTON£2.87 Add to
074112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
075112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
