Optionals On Request

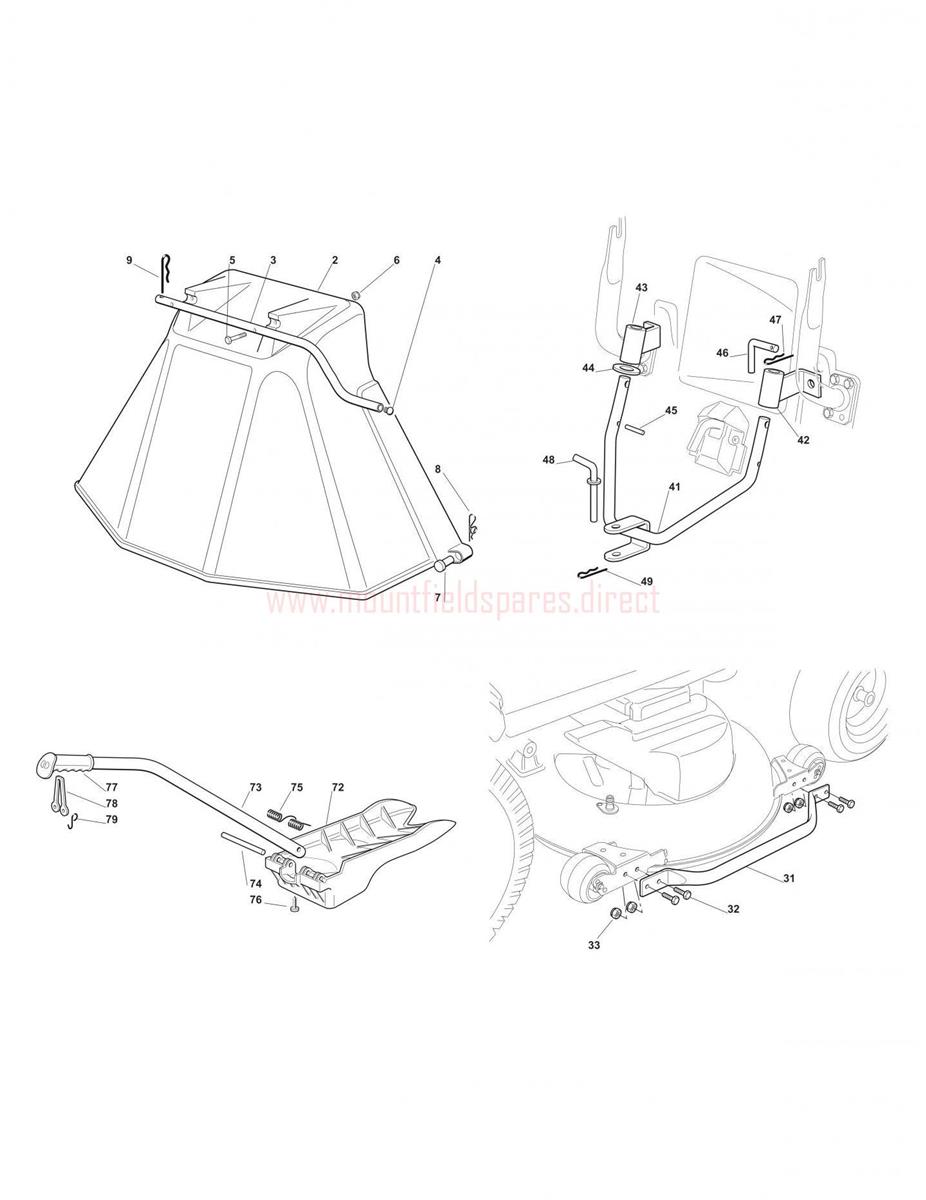

Optionals On Request assembly details for Mountfield MIPL2012_20120203_2448H 4WD 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002382400003/1DEFLECTOR GUARD£58.73 Add to
003325869043/0SUPPORT ROD£18.67 Add to
004118566116/0HANDLE CAP BLACK D=21£2.74 Add to
005112689515/0HEX-HEAD SCREW M6 x 45£2.06 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
007125510022/1PIN£3.40 Add to
008124487998/0R CLIP D=2£2.06 Add to
009124487999/0R CLIP D=3£1.91 Add to
031325869079/0PROTECTIVE GUARD£53.38 Add to
032112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
033112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
041382033113/0TOW BAR FRAME£52.06 Add to
042382774265/0RIGHT BRACKET SUPPORT£52.06 Add to
043382774267/0LEFT BRACKET SUPPORT£52.06 Add to
044112521395/0WASHER M16 17 x 30 x 3£2.06 Add to
045112620305/0SPIROL PIN 6 x 55£1.91 Add to
046125510118/0LOCK PIN£7.10 Add to
047124487997/0SPRING CLIP D=1.8£2.06 Add to
048125510021/1HITCH PIN£11.78 Add to
072125140092/0MULCHING DEFLECTOR SHOE£34.35 Add to
073325394019/0MULCH PLUG HANDLE£30.00 Add to
074125510077/0FULCRUM PIN£3.69 Add to
075125430245/0SPRING£3.28 Add to
076112735405/0FLANGED SELF-TAP SCREW D=6 x 30£2.06 Add to
077325280000/1HAND GRIP KIT MULCHING RO£3.55 Add to
078125840011/1LOCKING RUBBER TIE£6.27 Add to
079125253004/0FIXING HOOK£2.06 Add to
