Seat & Steering Wheel (2)

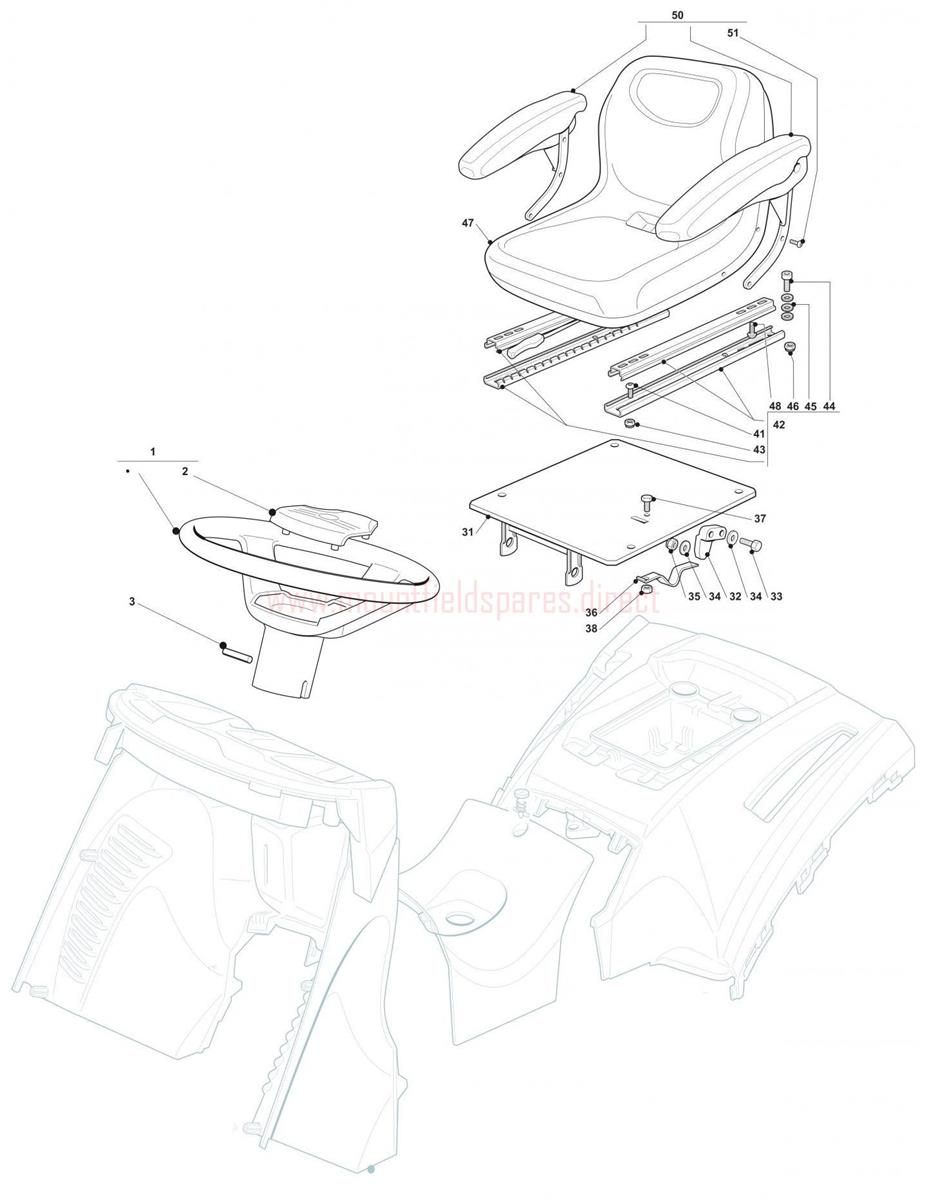

Seat & Steering Wheel (2) assembly details for Mountfield MIPL2012_20120203_2448H 4WD 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125961217/1STEERING WHEEL [BLACK]£93.73 Add to
002325580505/0CENTRAL STEERING WHEEL CAP£7.92 Add to
003112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
031382735809/0NFIXED SEAT SUPPORT£152.39 Add to
032325060033/0SEAT SWITCH CAM£2.06 Add to
033112815050/0SCREW M5 x 25£2.06 Add to
034112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
035112372550/0NUT WITH WING M5£2.06 Add to
036125430275/0Spring (OBSOLETE)N/A
038112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
041112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
042382180115/0HE SEAT GUIDE KIT ASSY£74.62 Add to
043112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
044112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
045112540060/0SERRATED LOCK WASHER M8£2.06 Add to
047125722473/0COMFORT SEAT TCP£338.89 Add to
050382180112/0ARM REST ASSY£225.12 Add to
