Steering model 4WD

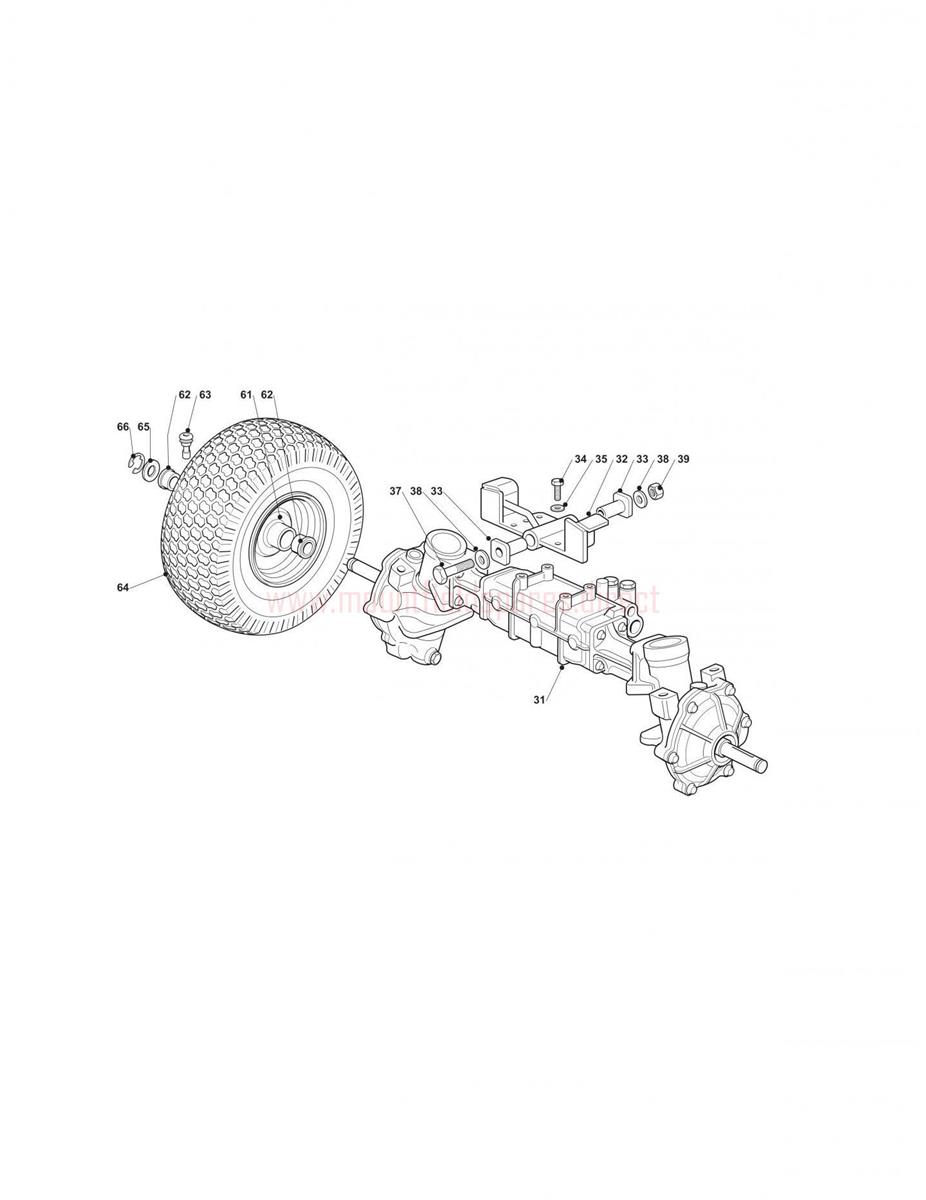

Steering model 4WD assembly details for Mountfield MIPL2012_20120203_2448H 4WD 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
031118400974/0HYDRO TRANSAXLE KXH7N£2,310.04 Add to
032382547057/1PLATE£204.69 Add to
033125040633/0BUSH£15.59 Add to
034112760560/0HEX-HEAD SOCKET SCREW M10 X 25£5.21 Add to
035112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
037112695900/0HEX-HEAD SCREW M16X130 UNI 5737 ACC. 10.£10.09 Add to
038112521395/0WASHER M16 17 x 30 x 3£2.06 Add to
039112295801/0HEXAGON NUT M16£2.06 Add to
061182000601/1FRONT WHEEL RIM£92.95 Add to
062125122200/2WHEEL BEARING D=20£12.05 Add to
063125950000/0PNEUMATIC VALVE£5.73 Add to
064337241TYRE 16 x 6.50-8 KENDA SUPER TURF£47.69 Add to
065125670005/2SPINDLE WASHER£3.89 Add to
066112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
