Electrical Parts

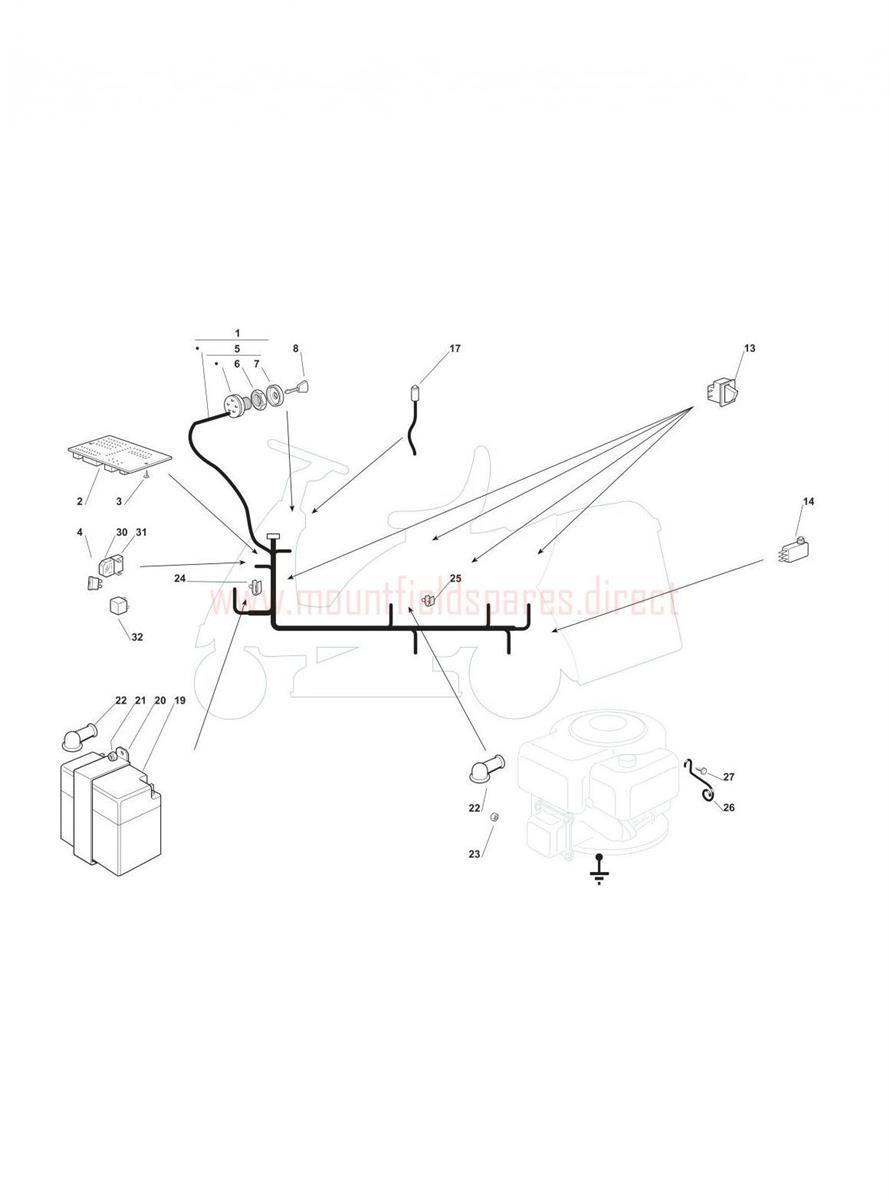

Electrical Parts assembly details for Mountfield 1228H-1228HB (20130311) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001184040126/2WIRING LOOM F72£183.07 Add to
001184040119/0COMPLETE HARNESS F72 HONDA ASS.Y£170.61 Add to
002125722415/1PC BOARD [ THIS ITEM CANNOT BE RETURNED ]£105.95 Add to
003112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
004133340040/0FUSE 10A£2.47 Add to
004133340035/0FUSE 15A£2.06 Add to
005118450065/1STARTING SWITCH£32.99 Add to
006118400861/0LOCKING RING£5.32 Add to
007118565351/0LOCKING RING COVER£6.14 Add to
008118210016/1IGNITION KEY [PAIR]£13.17 Add to
013119410622/1MICRO SWITCH N.O.£7.10 Add to
014119410605/1MICRO SWITCH£36.77 Add to
017125065014/1CARD ALARM SIGNAL CABLE£13.23 Add to
019118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
020327772099/1BATTERY FIXING CLAMP£5.05 Add to
021112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
022118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
023112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
024133320506/0CABLE CLIP£1.79 Add to
025133320504/0CABLE CLIP£2.06 Add to
026127430561/0SPRING£2.87 Add to
027112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
030133215000/0FUSE HOLDER COVER£3.83 Add to
031133500007/0FUSE HOLDER£7.64 Add to
032133567000/0RELAY£13.91 Add to
