Optionals On Request

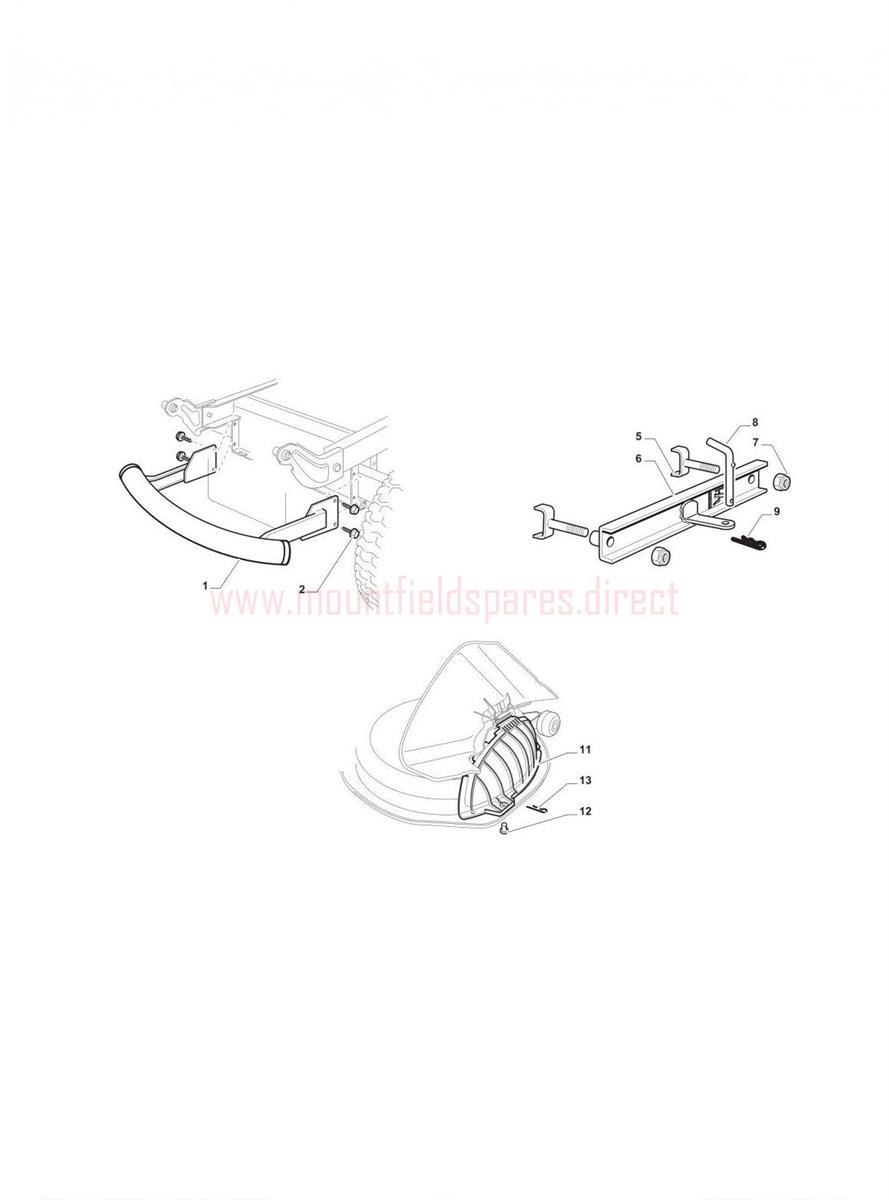

Optionals On Request assembly details for Mountfield 1538H-SD (20131903) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382869038/0FRONT BUMPER BAR£37.33 Add to
002112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
005382650211/0REINFORCEMENT PIN£5.46 Add to
006382033111/0TOW BAR£32.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
008125510021/1HITCH PIN£11.78 Add to
009124487999/0R CLIP D=3£1.91 Add to
011325140105/0MULCHING PLUG SD98£12.46 Add to
012125510111/0MULCH PLUG PIN£2.87 Add to
013124487998/0R CLIP D=2£2.06 Add to
