Electrical Parts

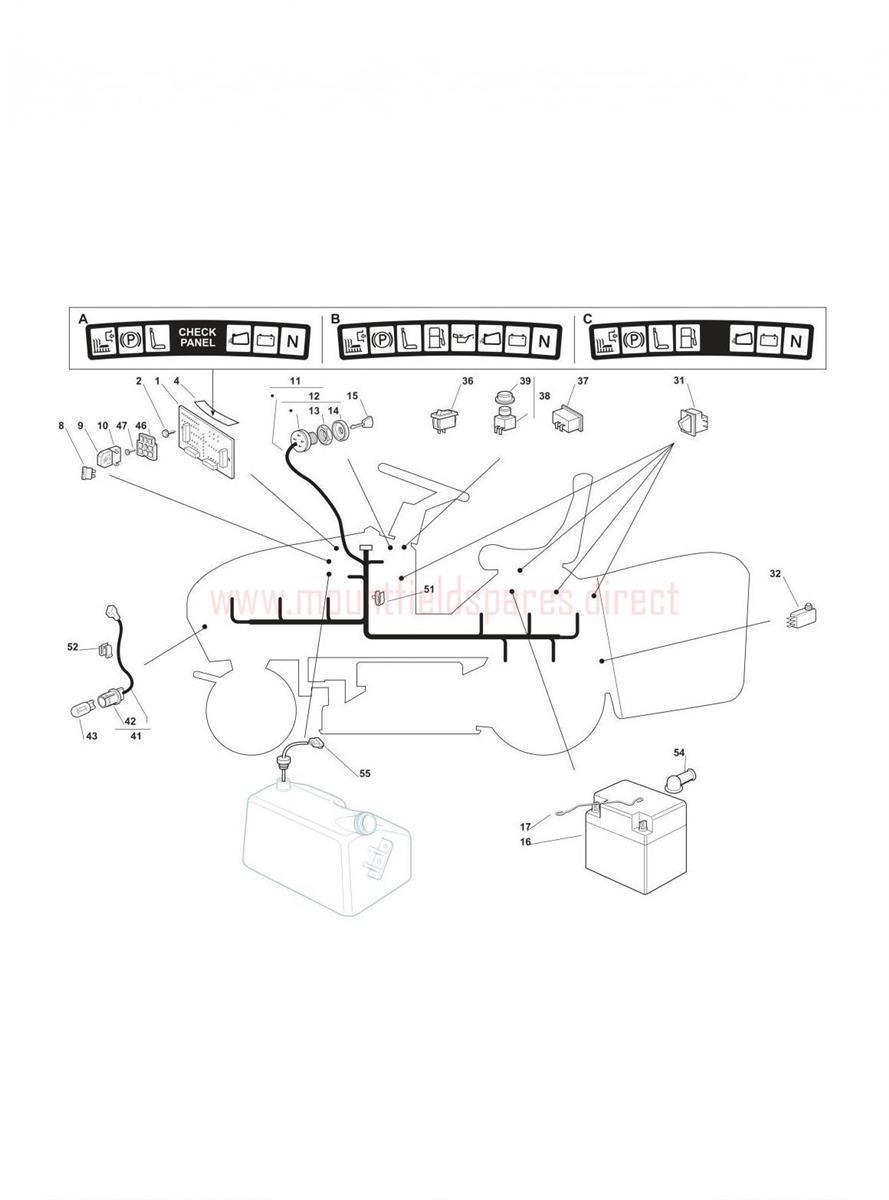

Electrical Parts assembly details for Mountfield 1840H (20131903) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125722413/1PC BOARD [8 LED] NO returns on this item£118.55 Add to
002112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
004125420004/0CHECK CONTROL PANNEL TC£9.68 Add to
004125420005/0CHECK CONTROL PANEL£9.96 Add to
004125420007/0CHECK PANEL£10.65 Add to
008133340036/0FUSE 25A£2.06 Add to
008133340040/0FUSE 10A£2.47 Add to
009133215000/0FUSE HOLDER COVER£3.83 Add to
010133500007/0FUSE HOLDER£7.64 Add to
011182040137/0WIRING HARNESS TC2000£763.39 Add to
012118450065/1STARTING SWITCH£32.99 Add to
013118400861/0LOCKING RING£5.32 Add to
014118565351/0LOCKING RING COVER£6.14 Add to
015118210016/1IGNITION KEY [PAIR]£13.17 Add to
016118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
017125430230/0SPRING ROD£3.55 Add to
031119410622/1MICRO SWITCH N.O.£7.10 Add to
032119410605/1MICRO SWITCH£36.77 Add to
036118450084/0HEADLIGHT SWITCH£4.35 Add to
0379400-0384-01HOUR METER£94.31 Add to
038118450067/0CLUTCH SWITCH£21.26 Add to
039118203852/0CLUTCH SWITCH CAP£3.15 Add to
041182040070/0HEADLIGHTS CABLE£16.46 Add to
041182040073/0HEADLIGHTS CABLE£18.68 Add to
043118459100/0HEADLIGHT BULB£2.47 Add to
046133500010/1FUSE HOLDER PLATE£2.06 Add to
047112735170/0SCREW£1.95 Add to
051133320506/0CABLE CLIP£1.79 Add to
052133320504/0CABLE CLIP£2.06 Add to
054118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
055125290000/0FUEL LEVEL INDICATOR£56.15 Add to
