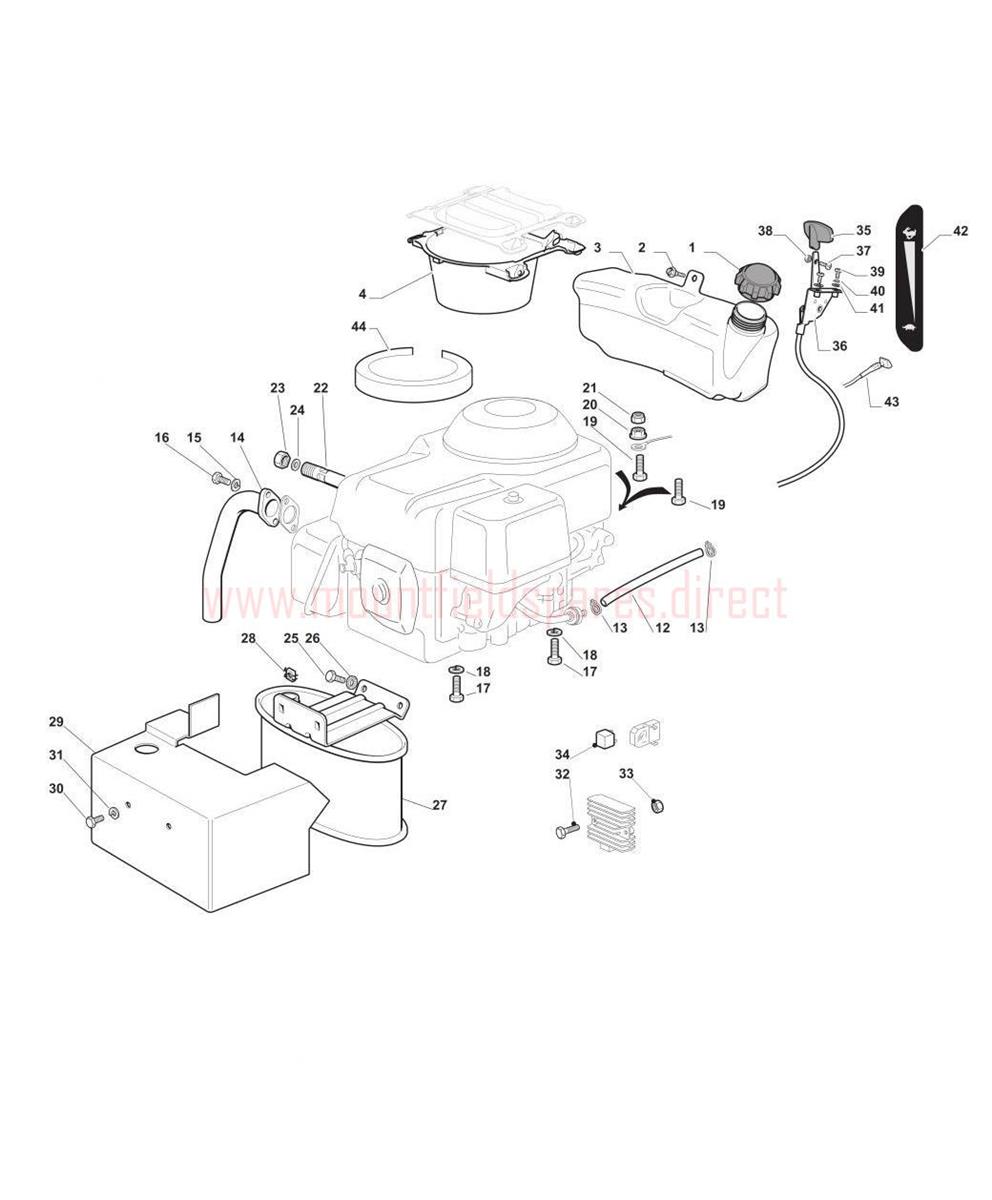

Engine - Honda assembly details for Mountfield 3000SH (2T2000383) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125795001/1FUEL TANK CAP£8.32 Add to
002125943010/0FLANGED SCREW£2.06 Add to
003325735126/0FUEL TANK (TO 31ST AUG 2017)£44.56 Add to
004325108044/1LONG AIR CONVEYOR£11.46 Add to
012325869057/0FUEL TUBE L=1000£20.72 Add to
013118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
014112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
016112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
017112735802/0THREADED SCREW 5/16" x 1" 24UNF£3.00 Add to
019119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
020112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
021112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
022127598060/0OIL DRAIN EXTENSION£8.52 Add to
023118737849/0OIL DRAIN PLUG£2.47 Add to
024118401001/1OIL DRAIN SEAL£2.06 Add to
025112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
026112540260/0INNER TOOTHED WASHER M8£2.06 Add to
027182750010/0MUFFLER£117.75 Add to
028112360425/0SQUARE NUT M8£2.18 Add to
029382598053/0MUFFLER GUARD£99.65 Add to
030125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
032112791213/1SCREW M6 X 18£1.74 Add to
033112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
034133567000/0RELAY£13.91 Add to
035325394531/0THROTTLE CONTROL KNOB£1.91 Add to
036184000251/1THROTTLE CABLE£26.93 Add to
037112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
038112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
040112540020/0EXTERNAL TOOTHED WASHER M4£2.06 Add to
041112521310/0WASHER M4 4.3 x 9 x 0.8£1.79 Add to
042114363697/0THROTTLE DECAL£2.06 Add to
043125090003/0CHOKE CONTROL CABLE£20.45 Add to
044125730023/0INTAKE SEPARATOR£6.47 Add to
