Guards

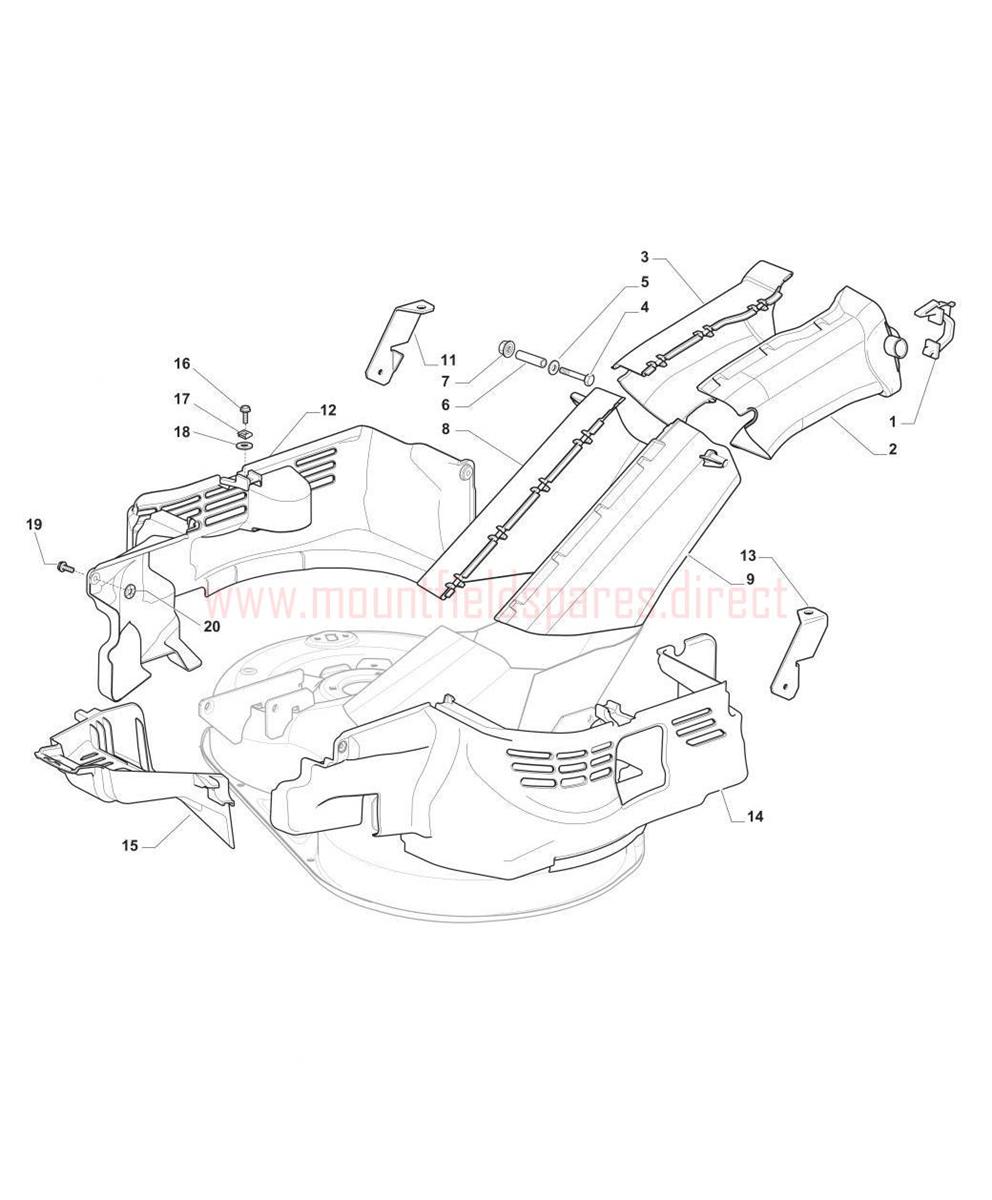

Guards assembly details for Mountfield 3000SH (2T2000383) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325774499/0DISCHARGE CHUTE RELEASE CLAMP£2.87 Add to
002325108056/0LEFT TOP CHUTE [BLACK]£16.36 Add to
003325108057/0RIGHT TOP CHUTE [BLACK]£16.22 Add to
004112792425/0HEX-HEAD SCREW M6 X 55£2.06 Add to
005112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
006125160071/0SPACER (TO 31 AUG 2019)£2.30 Add to
007112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
008325108064/0BOTTOM RIGHT CHUTE [BLACK]£18.82 Add to
009325108065/0BOTTOM LEFT CHUTE [BLACK]£18.82 Add to
011325774527/0RIGHT CLAMP BRACKET£3.69 Add to
012325060164/0RIGHT BELT GUARD [BLACK]£26.18 Add to
013325774529/0LEFT CLAMP BRACKET£3.89 Add to
014325060165/0LEFT BELT GUARD [BLACK]£37.08 Add to
015325060166/0FRONT DECK GUARD [BLACK]£12.82 Add to
016112789008/0HEX-HEAD SCREW M5 x 20£2.06 Add to
017112437503/0LOCK PLATE£2.06 Add to
018112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
019125943011/0SCREW£9.82 Add to
020112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
