Body

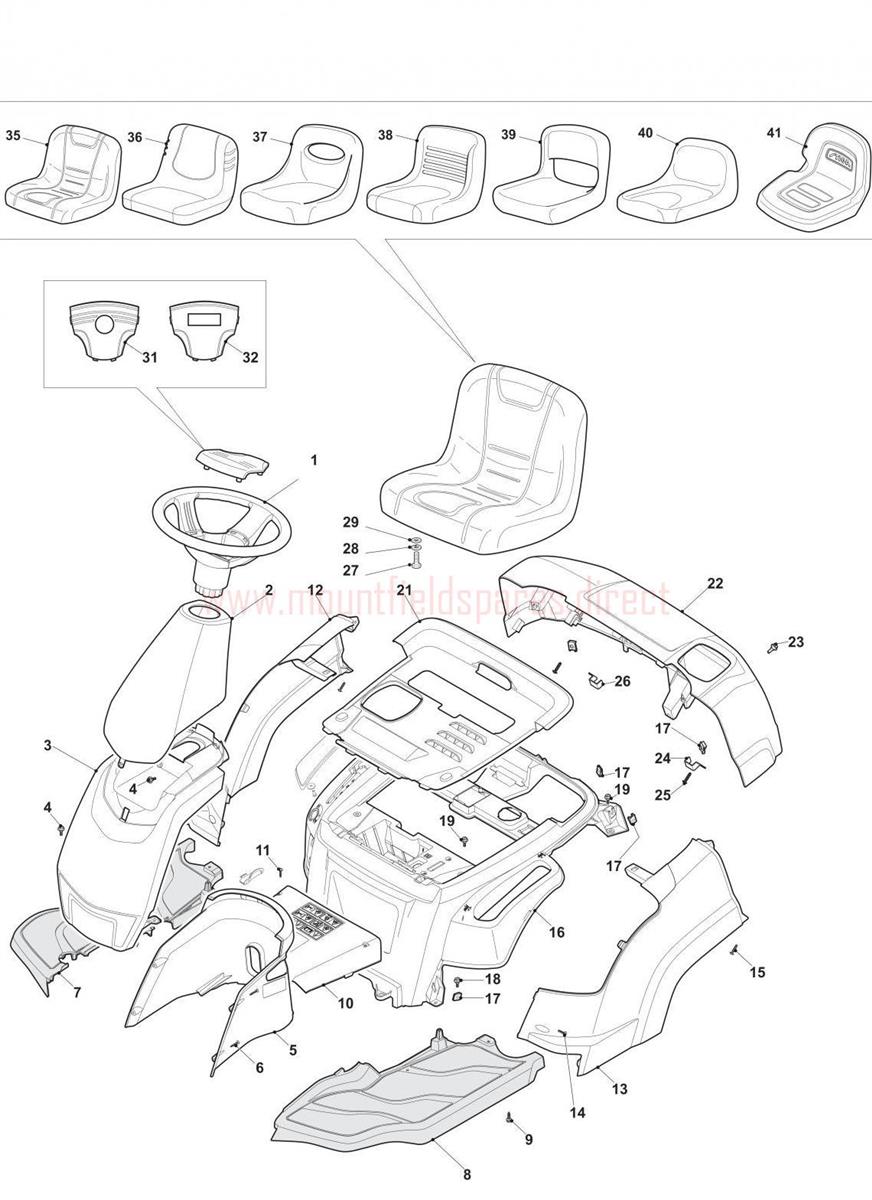

Body assembly details for Mountfield 725M (20143001) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325961220/0STEERING WHEEL F72 BLACK£53.42 Add to
002327110487/0UPPER STEERING COVER [BLACK]£27.27 Add to
003327110510/0FRONT STEERING COVER [RED]£34.81 Add to
004125943010/0FLANGED SCREW£2.06 Add to
005327110522/0REAR STEERING COVER [BLACK]£20.55 Add to
006112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
007327500501/0RIGHT FOOTBOARD [BLACK]£33.39 Add to
008327500500/0LEFT FOOTBOARD [BLACK]£33.39 Add to
009112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
010327110568/0CENTRAL COVER [BLACK]£18.53 Add to
012327110511/0RIGHT REAR COVER [RED]£29.14 Add to
013327110512/0LEFT REAR COVER [RED]£29.14 Add to
014112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
016327110521/1FRAME COVER [BLACK]£68.42 Add to
017112437507/0RAPID FIXING PLATE M6£2.06 Add to
021327110481/1BLACK ENGINE COVER£30.26 Add to
022327110543/0REAR COVER (BLACK)£59.68 Add to
024327772235/0WZ UPPER REAR RIGHT FIX STIRR. COV NR66SD£7.27 Add to
026327772237/0WZ UPPER REAR LEFT FIX STIRR.COV.NR66SD£7.27 Add to
027112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
028112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
029112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
031325580503/0STEERING WHEEL CAP ROUND£6.42 Add to
038125722471/0SEAT MOUNTFIELD£197.87 Add to
