Ride-on 72 Engine - GGP TRE0702 (2)

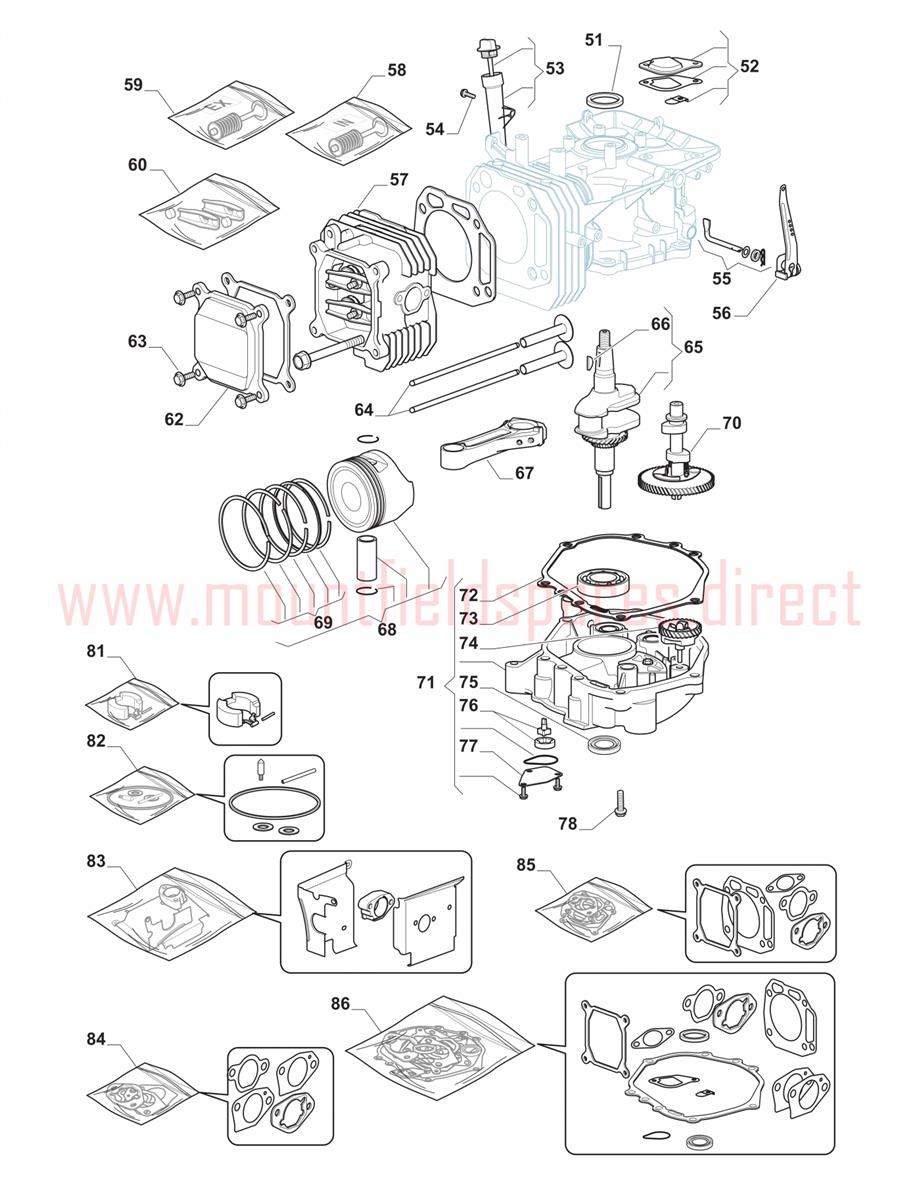

Ride-on 72 Engine - GGP TRE0702 (2) assembly details for Mountfield 1328H (2T0210483) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
051118550443/0OIL SEAL£14.34 Add to
052118550446/0BREATHER CHAMBER KIT£21.82 Add to
053118550205/1OIL DIPSTICK ASSEMBLY£27.41 Add to
054112674701/0SCREW TE M6 x 35£2.06 Add to
055118550226/0GOVERNOR ARM SHAFT£11.18 Add to
056118550330/1GOVERNOR LEVER£17.01 Add to
057118550233/0CYLINDER HEAD£225.56 Add to
058118550240/0INLET VALVE£33.39 Add to
059118550241/0EXHAUST VALVE£31.63 Add to
060118550334/0VALVE ARM SET£18.68 Add to
062118551238/0ROCKER COVER AND GASKET KIT£33.60 Add to
063112791200/1SCREW TE M6 x 16£1.79 Add to
064118550242/1PUSH ROD£6.27 Add to
065118550232/0CRANKSHAFT£200.51 Add to
066118550288/0WOODRUFF KEY£6.55 Add to
067118550231/0CONNECTING ROD£64.40 Add to
068118550328/1PISTON ASSEMBLY (1P88)_ (TRE0702)£101.22 Add to
069118550436/0PISTON RING SET (TRE0702)£42.53 Add to
070118550243/0CAMSHAFT ASSEMBLY£113.39 Add to
071118550445/0CRANKCASE COVER ASSEMBLY£197.87 Add to
072118550355/1CRANKCASE GASKET£17.02 Add to
073118550227/0BALL BEARING£18.13 Add to
074118550347/0SPEED GOVERNOR ASSEMBLY£20.04 Add to
076118550224/0OIL PUMP£20.63 Add to
077118550223/0OIL PUMP COVER£6.01 Add to
078112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
081118550440/0CARBURETTOR FLOAT KIT£10.77 Add to
082118550442/0CARBURETTOR GASKET SET£15.36 Add to
083118550220/0ENGINE GUARD ASSEMBLY£27.27 Add to
084118550765/0CARBURETTOR GASKET KIT£9.96 Add to
085118550437/0VALVE GASKET SET (TRE0702)£42.53 Add to
086118550438/0ENGINE GASKET SET (TRE0702)£94.13 Add to
