Ride-on 72 Optionals On Request

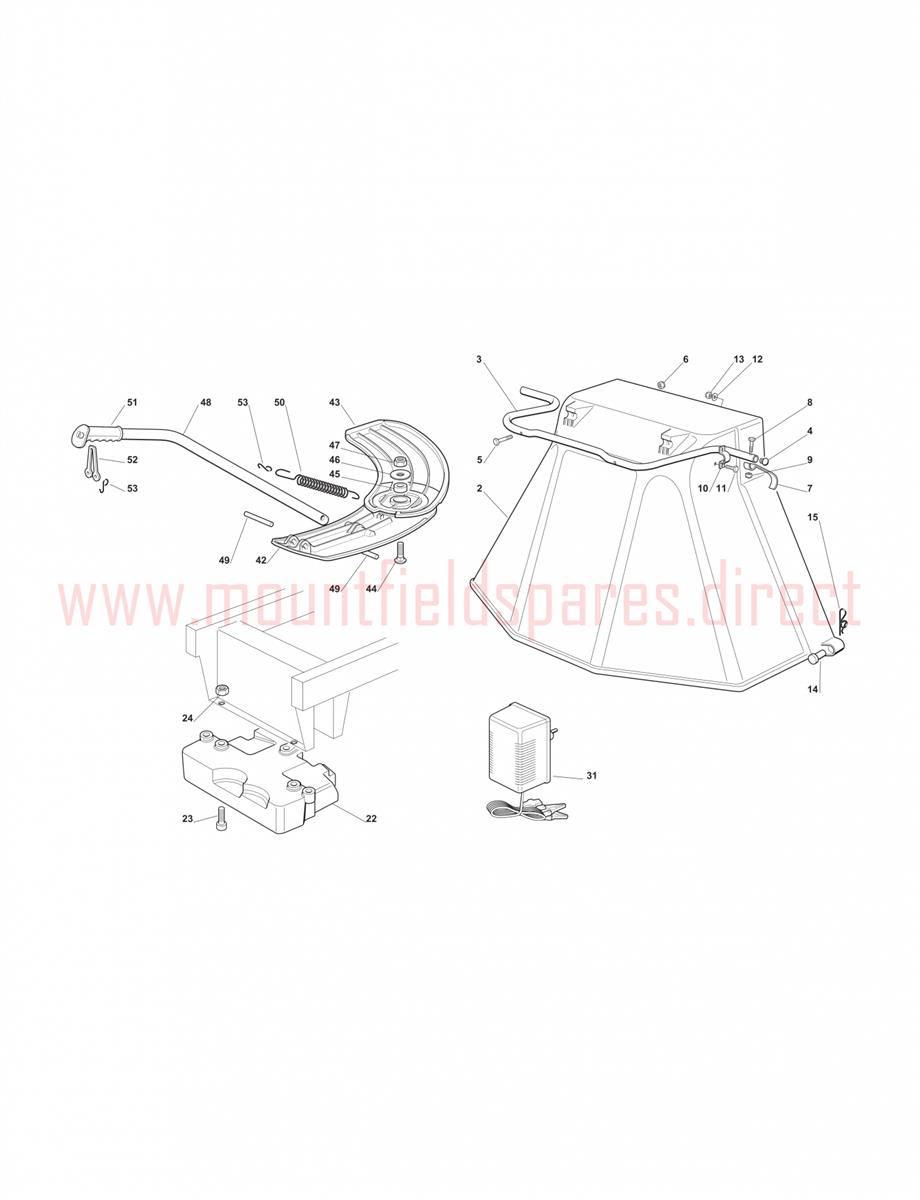

Ride-on 72 Optionals On Request assembly details for Mountfield 1328H (2T0210483) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002484598062/0DEFLECTOR GUARD£79.98 Add to
003327869053/0SUPPORT PIPE£25.67 Add to
004118566113/0CAP£2.06 Add to
005112674701/0SCREW TE M6 x 35£2.06 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
007325547053/0GRASSCATCHER SWITCH PLATE£5.87 Add to
008112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
010325547049/0AXLE FIXING PLATE£3.55 Add to
011112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
012112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
013112154320/0SELF-LOCKING NUT M5£2.06 Add to
014125510022/1PIN£3.40 Add to
015124487998/0R CLIP D=2£2.06 Add to
022112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
023112760520/0HEXAGON SOCKET HEAD SCREW M8 x 45£2.06 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
031182180190/1BATTERY CHARGER£61.20 Add to
031182180190/1BATTERY CHARGER£61.20 Add to
042327140055/0REAR MULCH SHOE£7.97 Add to
043327140054/0FRONT MULCH SHOE£7.97 Add to
044112818700/0SCREW M8 x 25£2.81 Add to
045127047013/1BUSH£2.18 Add to
046322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
048327394003/2MULCHING PLUG HANDLE F72£68.42 Add to
049127510116/0HANDLE FULCRUM PIN x MULCHING F72£8.73 Add to
050125430229/1SPRING£8.73 Add to
051325280000/1HAND GRIP KIT MULCHING RO£3.55 Add to
052125840011/1LOCKING RUBBER TIE£6.27 Add to
053125253004/0FIXING HOOK£2.06 Add to
